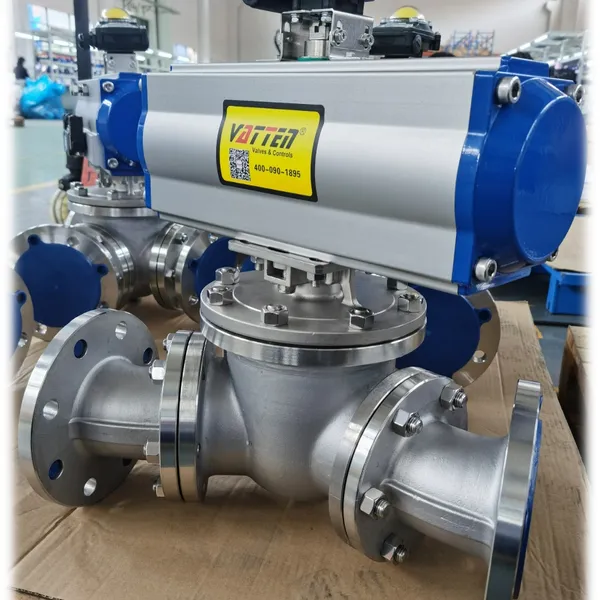

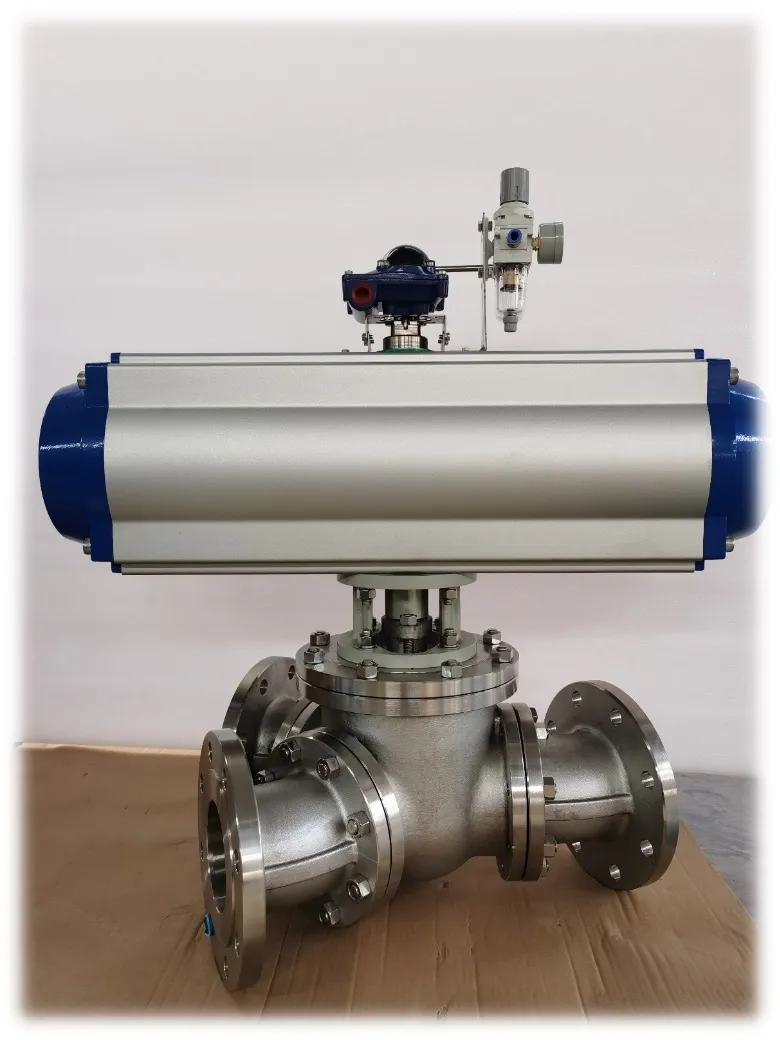

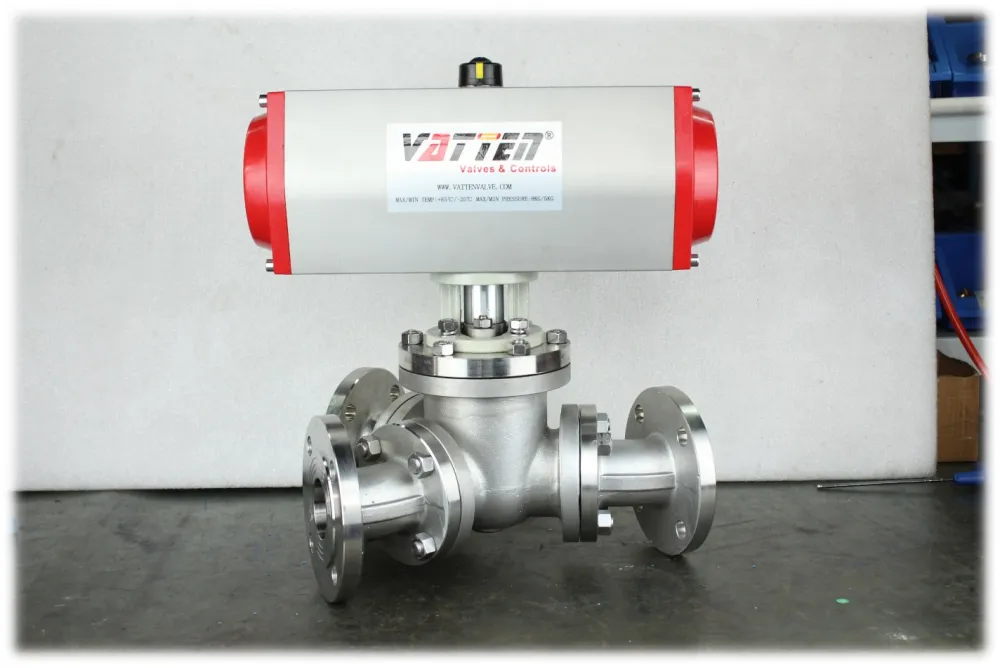

As a trusted agent of premium industrial components since 2015, Shanghai CAMP Environmental Protection Technology proudly introduces our Food-Grade Pneumatic Y-Type Three-Way Ball Valve – engineered specifically for hygienic dairy processing applications. With a decade of experience serving global markets across North America, Europe, Asia, and beyond, we understand the critical need for reliable, contamination-free fluid control solutions in food production environments.
This specialized valve combines three essential features for dairy operations:
- Hygienic Design: Polished surfaces with minimal dead zones prevent bacterial growth
- Pneumatic Efficiency: Quick 90° operation completes in under 2 seconds
- Y-Type Configuration: Unique 45° flow path minimizes product retention
Technical specifications include:
| Parameter | Specification |
|---|---|
| Body Material | AISI 316L Stainless Steel |
| Seal Material | EPDM/FKM (Optional) |
| Actuator Air Pressure | 4-6 bar |
| Flow Coefficient (Cv) | 5.2 - 210 (varies by size) |
| Surface Finish | Ra ≤ 0.8 μm |
Key operational advantages:
- Zero cross-contamination between flow paths
- Reduced CIP chemical consumption by 25% compared to traditional valves
- Stem seal leakage rate
- Interchangeable actuator mounting pads
For dairy engineers, this translates to:
- Extended production run times between cleanings
- Reduced product giveaway during changeovers
- Compatibility with automated process control systems
- Lower total cost of ownership
With installations in over 85 countries across our main markets including North America, EU, and Southeast Asia, Shanghai CAMP has proven expertise in delivering contamination-control solutions for sensitive applications. Our decade-long partnerships with hygienic equipment manufacturers ensure this valve meets the most demanding dairy processing requirements.
Frequently Asked Questions:
Q: Is this valve suitable for CIP/SIP processes?
A: Yes, the design withstands repeated cleaning cycles with caustic solutions and steam sterilization up to 130°C.
Q: What certifications are available?
A: While standard models feature FDA-compliant materials, specific certifications (3-A, EHEDG) can be arranged upon request.
Q: Can I get custom port configurations?
A: Absolutely. We offer bespoke combinations of flanged, threaded, or tri-clamp connections per your piping specifications.
Q: What's the lead time for DN50 valves?
A: Standard sizes typically ship in 2-3 weeks. Expedited options available.
Q: How does the Y-design improve dairy processing?
A: The 45° orientation creates a self-draining flow path that eliminates product traps where dairy solids could accumulate.
Q: What maintenance is required?
A: Our field data shows minimal maintenance needs – primarily annual stem seal inspection and actuator lubrication.
