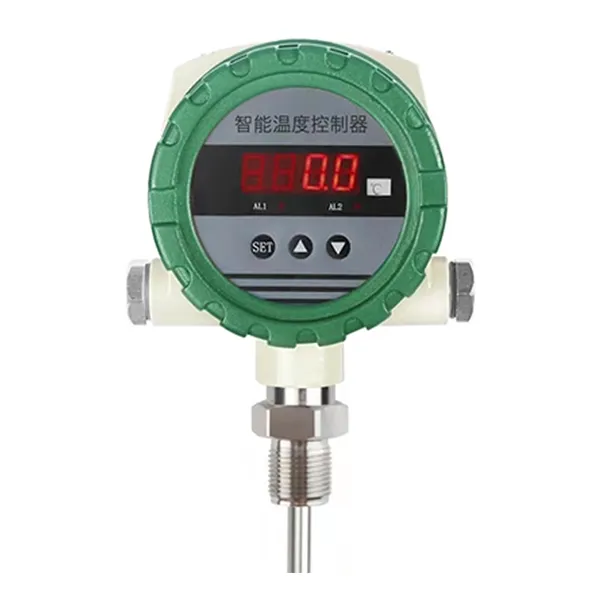

Help CenterIntelligent Temperature Controller, Temperature Switch, 1-channel Current Output + 2-channel Switch Quantity Output
Product Spotlights
Related Products
-
PH Meter, Online pH Measurement, Split Type Installation and Measurement, Output 4-20mA Plus Relay Switch QuantityNegotiableMOQ: 10 Pieces -
Mechanical Pressure Gauge, no Power Supply Required, On-site Pointer DisplayNegotiableMOQ: 10 Pieces
-
Bimetallic Thermometer, Local Pointer Display Thermometer, no Power Supply RequiredNegotiableMOQ: 10 Pieces
-
Magnetic Flip-board Level Gauge, Produced by Qingdao Huaweibo Shi Instrument and Meter Co., Ltd., ChinaNegotiableMOQ: 10 Pieces
-
BOS-P Pressure Transmitter, Manufactured by Qingdao Huawei Boshi Instrument, Shandong, ChinaNegotiableMOQ: 1 Piece
1. Overview
The intelligent temperature controller is an intelligent digital temperature measurement and control product integrating temperature measurement, display, output and control functions. Adopting an all-electronic structure, this product is equipped with a high-precision platinum resistance sensor at the front end. It performs high-precision A/D conversion, carries out arithmetic processing via a microprocessor, realizes on-site display, and outputs one analog quantity and two switch quantities.
This intelligent digital temperature controller features flexible application, simple operation, easy commissioning and high safety and reliability. It is widely used in industries such as hydropower, tap water, petroleum, chemical engineering, machinery and hydraulic pressure to conduct on-site measurement, display and control of the temperature of fluid media.
2. Features
◆ Explosion-proof standard instrument installation
◆ 4-digit LED digital tube display with no indication value error
◆ Two control point relay output, 220V 10A
◆ 4~20mA standard signal
◆ On-site setting for two control points

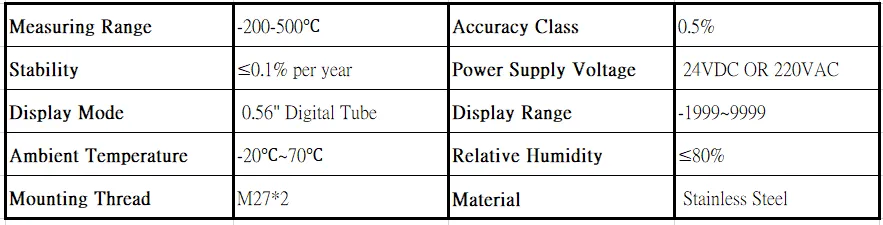

3. Technical Parameters:
