BOS-ZK01Pressure Controller, Relay Switch Output, Can be Superimposed With 4-20mA Current Output, 24VDC or 220VAC Power Supply

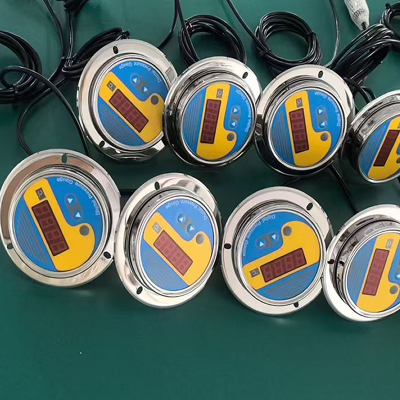

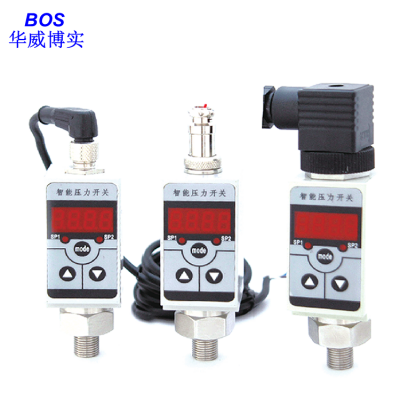

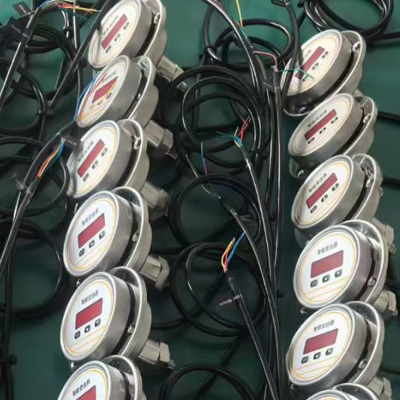

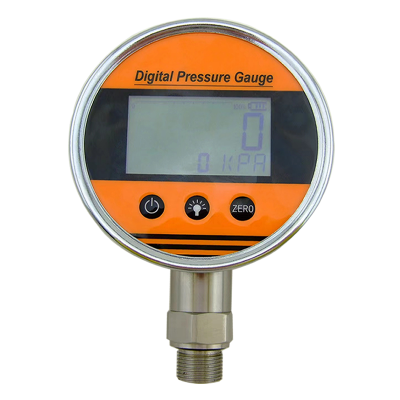

BOS-ZK01Pressure Controller, Relay Switch Output, Can be Superimposed With 4-20mA Current Output, 24VDC or 220VAC Power Supply photo-1
BOS-ZK01Pressure Controller, Relay Switch Output, Can be Superimposed With 4-20mA Current Output, 24VDC or 220VAC Power Supply photo-2
BOS-ZK01Pressure Controller, Relay Switch Output, Can be Superimposed With 4-20mA Current Output, 24VDC or 220VAC Power Supply photo-3
BOS-ZK01Pressure Controller, Relay Switch Output, Can be Superimposed With 4-20mA Current Output, 24VDC or 220VAC Power Supply photo-4
BOS-ZK01Pressure Controller, Relay Switch Output, Can be Superimposed With 4-20mA Current Output, 24VDC or 220VAC Power Supply photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Electrical & Electronics
Transport Package:
Cardboard box
Specification:
a
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Application Electrical & Electronics
Transport Package Cardboard box
Specification a
Trademark BOS
Origin CHINA

Product Overview:

The BOS-ZK01 series intelligent digital display transmitter controller is a multi-functional intelligent product that integrates pressure measurement, display, and control, assembled with a sensor featuring an isolation diaphragm. It boasts advantages such as high precision, high accuracy, and sensitive response. It can be produced with solid-state relay output interfaces for single or dual-point control according to user requirements, and can provide a 4-20mADC signal output mode.

Technical parameters:

  1. Range: -0.1~0~0.01~1, 5, 7, 10, 20, 35, 60, 100MPa;

  2. Accuracy:±0.25%   ±0.3%    ±0.5% ;

  3. Signal output: 4-20mA  Switch output: Relay 220V/3AC 30V/3DC;

  4. Temperature range: -10~80℃;

  5. Interface size: M20*1.5 or user's choice;

  6. Medium used: liquids that are non-corrosive to 304 or 316L stainless steel;

  7. Display range: -1999~9999; 4-digit 0.56-inch high-brightness LED display;

Product Features:

1.Compact size, easy to install;

2.Two relay outputs, quick connection terminals;
3.On-site switch points can be set;
4.Panel status indication for on-site display.


Product Tags: BOS-ZK01Pressure controller , Pressure transmitter , Pressure gauge
