1. Overview

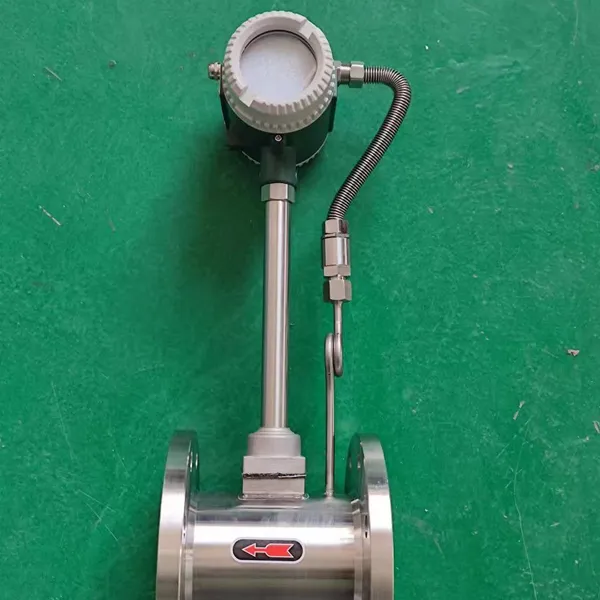

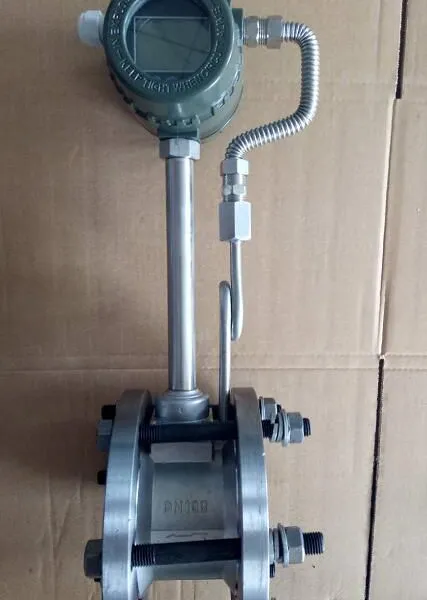

Vortex flowmeters are volumetric flowmeters that measure the volumetric flow, standard volumetric flow, or mass flow of gases, vapors, or liquids based on the Karman vortex street principle. They can also be used as flow transmitters in automatic control systems. This instrument adopts advanced differential technology, combined with isolation, shielding, filtering and other measures, overcoming problems such as poor shock resistance and disordered small-signal data of similar products. It also uses sensor packaging technology and protective measures to ensure the reliability of the product. The product has two types: basic type and composite type. The basic type measures a single flow signal; the composite type can simultaneously measure temperature, pressure, and flow. Each type has an integral and split structure to adapt to different installation environments.

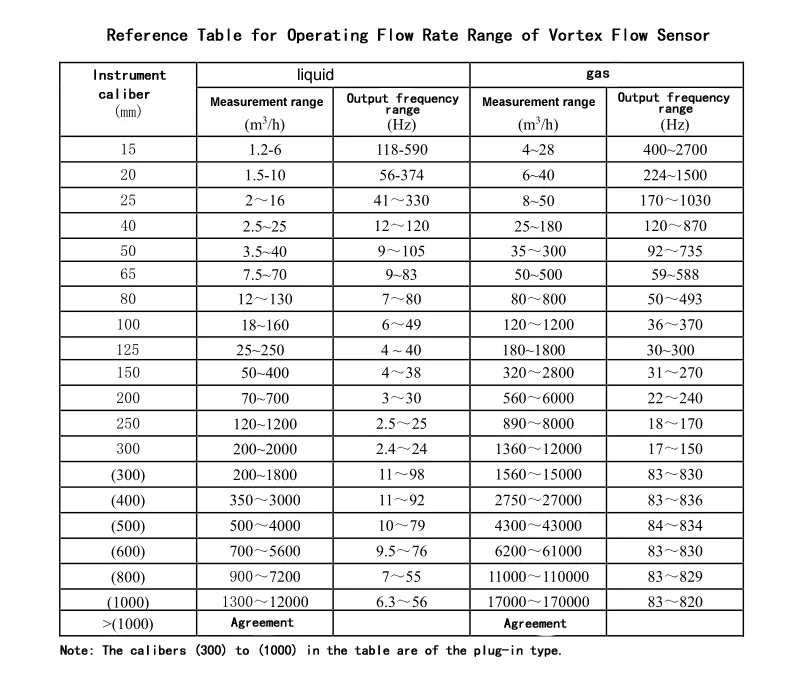

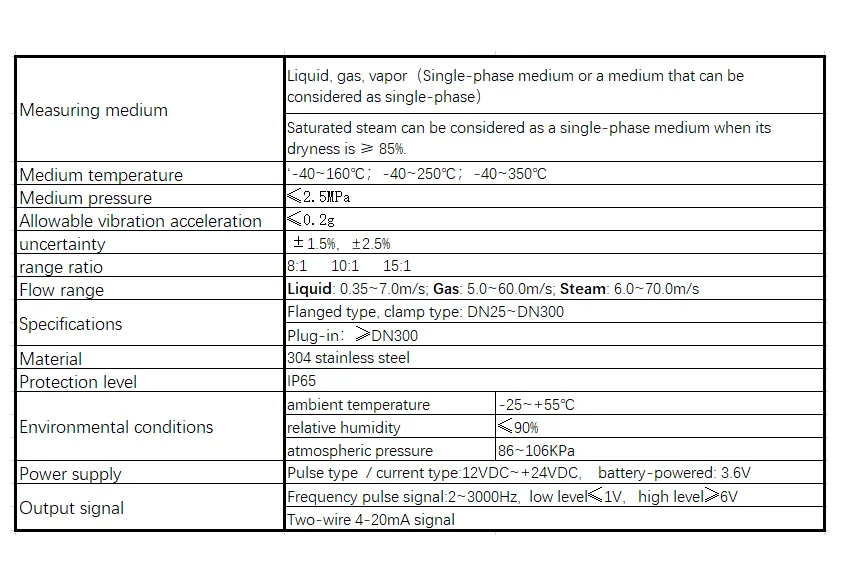

2.Specification Parameters
