Help CenterLectromagnetic Flowmeter, Which Can Measure the Flow of Conductive Sewage, Liquids Containing Acids, Alkalis, Etc.
Related Products
-
Single-flange Liquid Level Transmitter, Flange Diaphragm Transmitter, Used for Measuring Anti-corrosion Liquid MediaNegotiableMOQ: 1 Piece -
Double Flange Level Gauge, Measurement of Liquid Level in Closed Tanks, Anti-corrosion Level Transmitter, Manufacturer of Huawei BoshiNegotiableMOQ: 10 Pieces
-
Single-cable Float Switch, PP Ball + Rubber Cable, Stainless Steel Ball + Silicone Cable,NegotiableMOQ: 1 Piece
-
Group Cable-type Float Switch, Multi-point SPDT Switch Output, Can be Used in Conjunction With Electric PumpsNegotiableMOQ: 1 Piece
-
Tuning Fork Switch, Liquid Level Switch, Material Level Switch, SPDT or DPDT Switch Quantity OutputNegotiableMOQ: 1 Piece
Working principle
The working principle of the electromagnetic flowmeter is based on Faraday's law of electromagnetic induction. When a conductor moves in a magnetic field, an induced electromotive force is generated at both ends of the conductor in the direction perpendicular to the direction of the magnetic field and the direction of motion. The magnitude of the electromotive force is proportional to the moving speed of the conductor and the magnitude of the magnetic induction intensity of the magnetic field.
Product type and composition

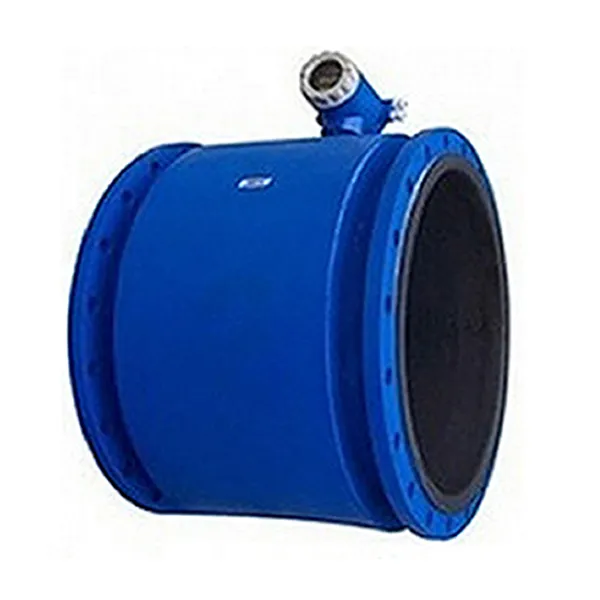

The electromagnetic flowmeter consists of two major parts: the electromagnetic flow converter and the electromagnetic flow sensor. For the separated type, a dedicated double-shielded cable is also required to connect the converter and the sensor.

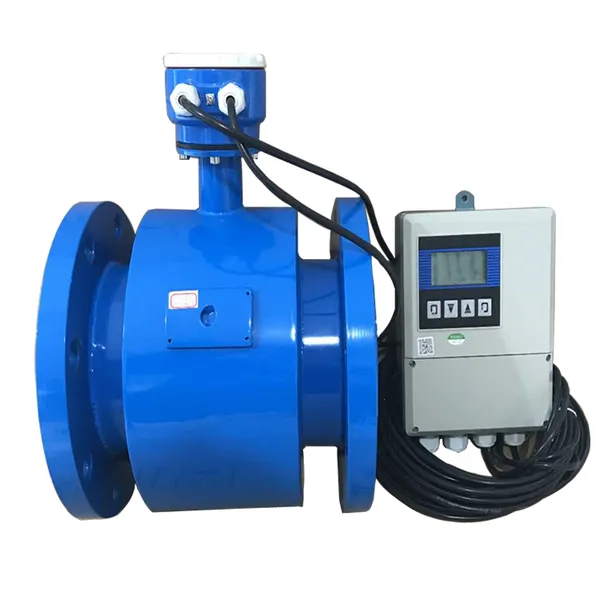

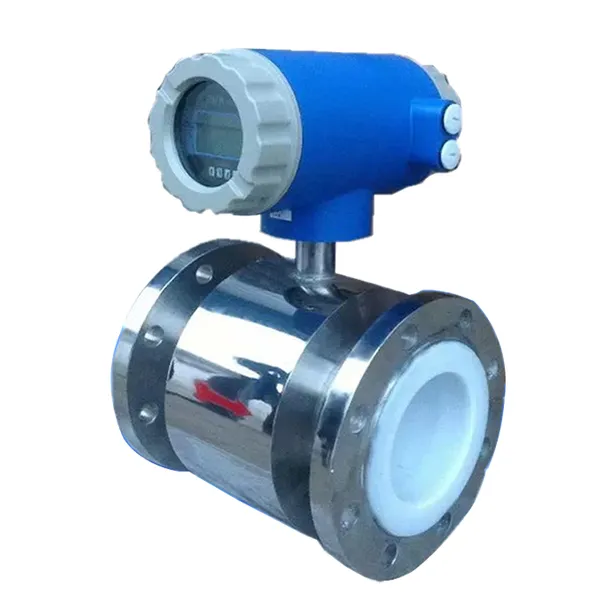

Electromagnetic flowmeters are divided into two structural forms: integrated type and separated type。
There are 7 different materials of electrodes and 4 different materials of linings available for the sensor。
