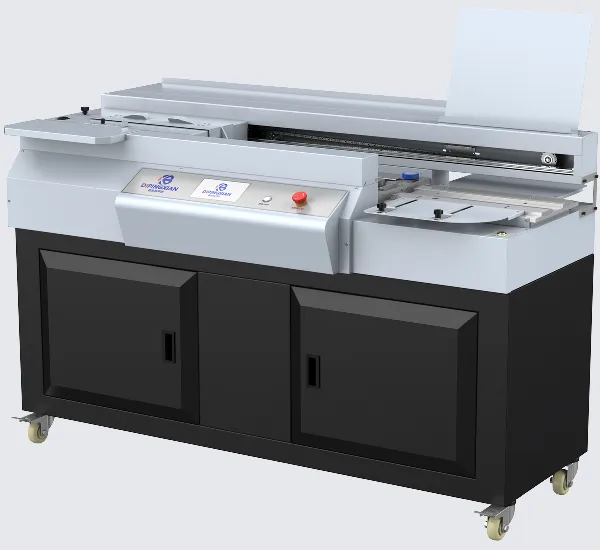

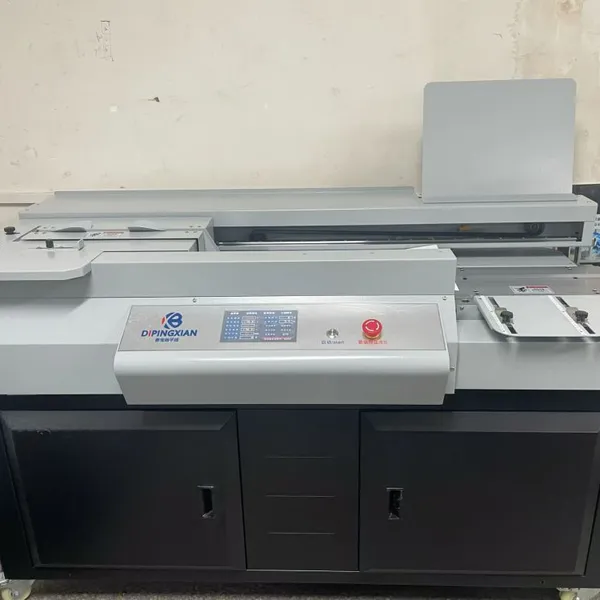

Help CenterXiangbao Horizon XB-AR10000K 2.0 Intelligent Dual-Mode Perfect Binding Machine
Related Products
-
Shanghai Xiangbao XB-AR900H Economy Edition 2.0 Glue Binding MachineUS$ 1828MOQ: 1 Piece -
Shanghai Horizon XB-AR1000H Flagship Version Automatic Glue Binding MachineUS$ 5605MOQ: 1 Piece
-
Shanghai Xiangbao XB-AR9000H Flagship Edition Binding MachineUS$ 3352MOQ: 1 Piece
-
Shanghai Xiangbao XB-AR10000H Heavy Duty Glue Binding MachineUS$ 5605MOQ: 1 Piece
-
Shanghai Xiangbao XB-AR10000H Flagship Version Automatic Glue Binding MachineUS$ 12648MOQ: 1 Piece
Machine advantages:
Glue binding can be done on both left and right sides.
Variable frequency drive.
Automatic switching of square and circle heights by measuring book thickness.
Hidden single-sided handwheel.
Overall lifting of the glue trough.
Independent pre-glue box.
Quick adjustment of book blocks.
Glue restriction at the head.
Linear guide.
Rear suction paper scraps.
Strong and weak current isolation circuit.
Industrial-grade clamping structure.
Machine features:
Control part 7-inch HMI touch screen: visual operation, no need to remember key functions, parameters (glue temperature, clamping force, switching between Chinese and English, etc.) can be adjusted with one click and displayed in real time, reducing operating errors, and the operation is intuitive and efficient. Switch binding mode with one click to improve work efficiency. Integrated fault prompts, parameter storage, and self-test functions. When a fault occurs, the screen directly displays the cause of the problem.
Guide rail part 20-type linear guide rail: It has the characteristics of high precision, high strength, low noise, etc., and is fixed at multiple points to ensure the smooth operation of the trolley, good book binding effect, and more even glue application. 3. Cart part Car clamping transmission: It adopts 8 guide rails and
screw rods design to ensure smooth operation and no shaking when binding books. The bottom of the inner plywood is reinforced with 1 cm thick iron-based profiles (chrome plating process), which is rust-proof and wear-resistant and does not change shape. Book block quick-adjustment device: The cover layout position is adjusted from time to time according to the perfect binding process. The operation is simple and efficient, and it is quick to use without repeated debugging. It is used to reserve waste edges for printing covers, and the cover wraps the book block for perfect binding. Tiantou glue collection device: effectively solves the problem of glue overflow on the clamping table and facilitates cutting, improving work efficiency. Book thickness measuring device: Automatically measures text thickness during glue binding, and the clamping table automatically switches between square and circle angles, eliminating the need for frequent handwheel adjustments. Variable frequency drive device: fast speed and smooth operation. When the load changes slightly (such as paper of different thicknesses, a small amount of paper feed deviation), the frequency conversion can automatically compensate for the rotation speed and maintain a constant speed of the motor, ensuring consistent back milling depth, uniform glue application, and effectively ensuring accurate positioning of the front and back of the book and the cover. Increase the number of bindings.
Milling cutter part: 19-tooth roughening knife + slotting knife, ensuring that every piece of paper in the book will be roughened and grooved, and there will be no missing milling, making the gluing effect better. Double paper dust suction design: milling cutter blade paper suction structure, rear vacuum device, more effective paper suction.
Glue tank part: enlarged rubber tank side glue + double rubber wheels + uniform rubber wheels. Designed according to the BQ270 glue tank concept, the side glue is located on the left side of the glue tank and uses the same glue tank glue as the back glue to avoid the side glue glue from burning and give full play to the fastness of the glue. The first rubber wheel is used to glue the milling cutter groove to ensure strong penetration of the glue. The second rubber wheel is used to glue the back of the book, and the glue effect is better. Multiple heat dissipation layers provide even heating. 7 heating tubes are used for heating, and the dual-channel heating control is intelligently switched, and the effect is relatively good. Dual temperature sensors, direct contact with glue temperature measurement area, large area and accurate temperature. Independent pre-glue box device: realizes glue addition without stopping the machine, saving time. Effectively reflects the characteristics of the processing type binding machine. 5. The overall lifting design of the glue trough: When glue binding on the right side, the glue trough automatically descends and rises to avoid frequent cleaning caused by glue rubbing on the bottom of the book.
Clamp part: Industrial-grade 4-rail vertical lifting structure: digitally precise and controllable, RV30 worm gear transmission, smooth operation, thickened sheet metal, and long service life. It is not easy to have more glue on one side, less glue on one side, and uneven base glue. Independent clamping motor: powerful, stable performance, durable, and the binding effect is firm and stable. Hidden single-sided handwheel: When the gram of the cover is very different from that of the book, one side of the back will be square and the other round. This device can be used to adjust the height of the clamping table in the screen. Do not use this device unless necessary. Open book folder platform: It is more convenient to quickly place the cover when binding books, improving the efficiency of perfect binding.
Circuit part: Strong and weak current isolation control: low voltage controls high voltage, strong and weak current partitions, to avoid interference and damage to weak currents caused by current and voltage fluctuations, thereby extending the life and failure rate of the motherboard, and reducing later maintenance costs.
Display Type: 7-inch HMI Touchscreen
The standard length is 430mm
Sheet thickness: 0.1-60mm
Base height: 130mm+
```Car operation frequency conversion control```
Operation mode: Manual/Automatic + Dual Mode
Mechanical operating speed: Single mode 420 books/hour, Dual mode 320 books/hour
Milling cutter method: 19-tooth roughing cutter + slitting cutter
Solute time ≥40 minutes
Coating methods: Side coating / Dual coating roller / Uniform coating roller
Operation structure: Linear guide + Circular guide
Clamping Face Structure with Intelligent Vertical Lift and Independent Clamping Motor
Thickness measurement function √
Quick Installation Mode √
Elastomer trough lifting √
Hidden handwheel √
Quick book core adjustment √
End cap sealing √
Post-attachment paper √
Open platform √
Paper folding table √
Book divider √
Sealed panel √
Heating power 1.4KW
Voltage/Power AC 220V 50Hz / Approximately 2.6KW
Net weight: approximately 268KG
Gross weight: approximately 317 kg
Machine dimensions: approximately 1545*770*1278mm
Packaging dimensions: approximately 1630*760*1080mm
