Core Application

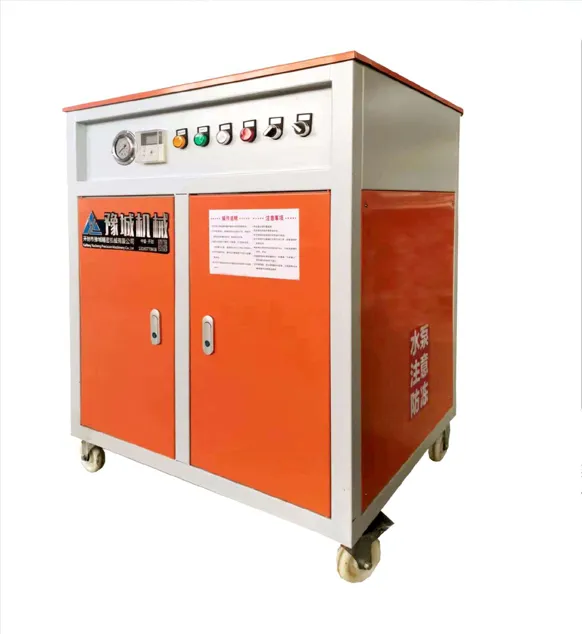

This electric steam generator is designed for curing precast beams, T-beams, and concrete components in construction projects. It provides a controlled, high-temperature steam environment to ensure newly poured concrete hardens under optimal temperature and humidity conditions, improving strength development and durability.
Technical Performance
The series offers seven power options: 12kW, 18kW, 24kW, 36kW, 48kW, 60kW, and 72kW, with corresponding steam output ranging from 15L/h to 90L/h. All models operate at a working pressure of 0.4Mpa, producing saturated steam at 173℃. Powered by a 380V power supply, the generator delivers consistent, reliable steam for continuous curing processes.
Design Specifications
The generators come in three main configurations based on tank volume and size:
24L volume models (12kW-24kW) weigh 48kg, with dimensions of 720×480×880mm
30L volume models (36kW-48kW) weigh 80kg, with dimensions of 790×750×1160mm
40L volume models (60kW-72kW) weigh 95kg, with dimensions of 790×750×1160mmThe compact, wheeled design allows for easy movement around construction sites, making it suitable for both fixed and mobile curing applications.
Key Advantages
The multi-power series provides flexible options to match different project scales and curing requirements. The generator ensures uniform temperature distribution, reducing the risk of cracking and improving concrete quality. With a robust design and simple operation, it offers reliable performance and low maintenance needs, making it an essential tool for modern concrete construction projects.
| Power (kW) | Steam Output (L/h) | Volume (L) | Weight (kg) | Dimensions (mm) | Working Pressure (Mpa) | Saturated Steam Temperature (°C) | Voltage (V) |
|---|---|---|---|---|---|---|---|
| 12 | 15 | 24 | 48 | 720×480×880 | 0.4 | 173 | 380 |
| 18 | 22 | 24 | 48 | 720×480×880 | 0.4 | 173 | 380 |
| 24 | 45 | 24 | 48 | 720×480×880 | 0.4 | 173 | 380 |
| 36 | 60 | 30 | 80 | 790×750×1160 | 0.4 | 173 | 380 |
| 48 | 60 | 30 | 80 | 790×750×1160 | 0.4 | 173 | 380 |
| 60 | 75 | 40 | 95 | 790×750×1160 | 0.4 | 173 | 380 |
| 72 | 90 | 40 | 95 | 790×750×1160 | 0.4 | 173 | 380 |
