Application Scope

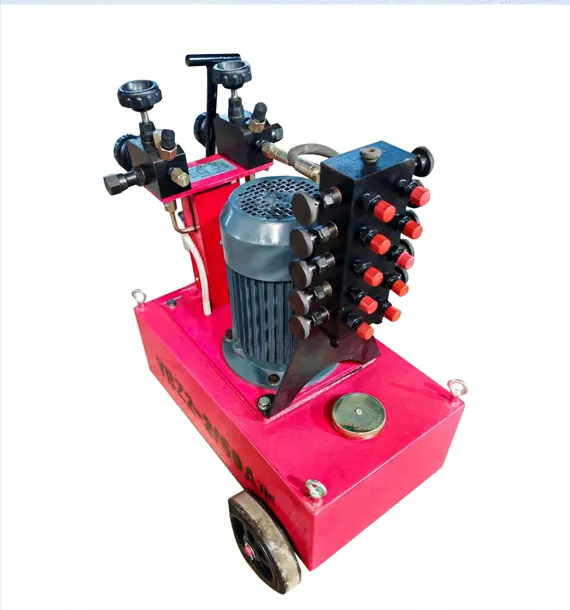

This customizable electric oil pump is a versatile hydraulic power unit designed for prestressed tensioning operations in bridge, highway, and railway construction. It supports multiple jack configurations, making it suitable for projects requiring synchronous multi-point tensioning to improve construction efficiency.
Core Technical Specifications
The pump features a plunger configuration of 2×6 units, with a 10mm plunger diameter and 6.8mm stroke. It operates at a motor speed of 1420r/min, delivering a rated pressure of 50Mpa for reliable power output. The pump offers four standard configurations: one drag two, one drag three, one drag four, and one drag six, with oil outlets ranging from 4 to 12 to support different numbers of jacks simultaneously.
Customization Options
This pump is fully customizable to meet specific project requirements. Users can adjust motor power, rated displacement, oil tank capacity, machine weight, and overall dimensions to match their construction needs. The modular design allows for flexible configuration of oil outlets and valve groups, making it adaptable to both small-scale and large-scale prestressed projects.
Operational Advantages
The multi-outlet design enables synchronous tensioning of multiple jacks, significantly reducing construction time and labor costs. The pump’s robust plunger system ensures stable pressure and flow, while its customizable features allow it to be tailored to unique site conditions. Built for durability and low maintenance, it is a reliable choice for heavy-duty construction environments.
Specifications
| Item | One Drag Two | One Drag Three | One Drag Four | One Drag Six |
|---|---|---|---|---|
| Oil Outlet Quantity | 4 | 6 | 8 | 12 |
| Oil Distribution Valve Groups | 2 groups | 3 groups | 4 groups | 6 groups |
| Plunger Quantity | 2×6 | 2×6 | 2×6 | 2×6 |
| Motor Power (kW) | Customizable | Customizable | Customizable | Customizable |
| Motor Speed (r/min) | 1420 | 1420 | 1420 | 1420 |
| Plunger Diameter (mm) | 10 | 10 | 10 | 10 |
| Plunger Stroke (mm) | 6.8 | 6.8 | 6.8 | 6.8 |
| Rated Pressure (Mpa) | 50 | 50 | 50 | 50 |
| Rated Displacement (L/min) | Customizable | Customizable | Customizable | Customizable |
| Oil Tank Capacity (L) | Customizable | Customizable | Customizable | Customizable |
| Weight (kg) | Customizable | Customizable | Customizable | Customizable |
| Dimensions (L×W×H, mm) | Customizable | Customizable | Customizable | Customizable |
