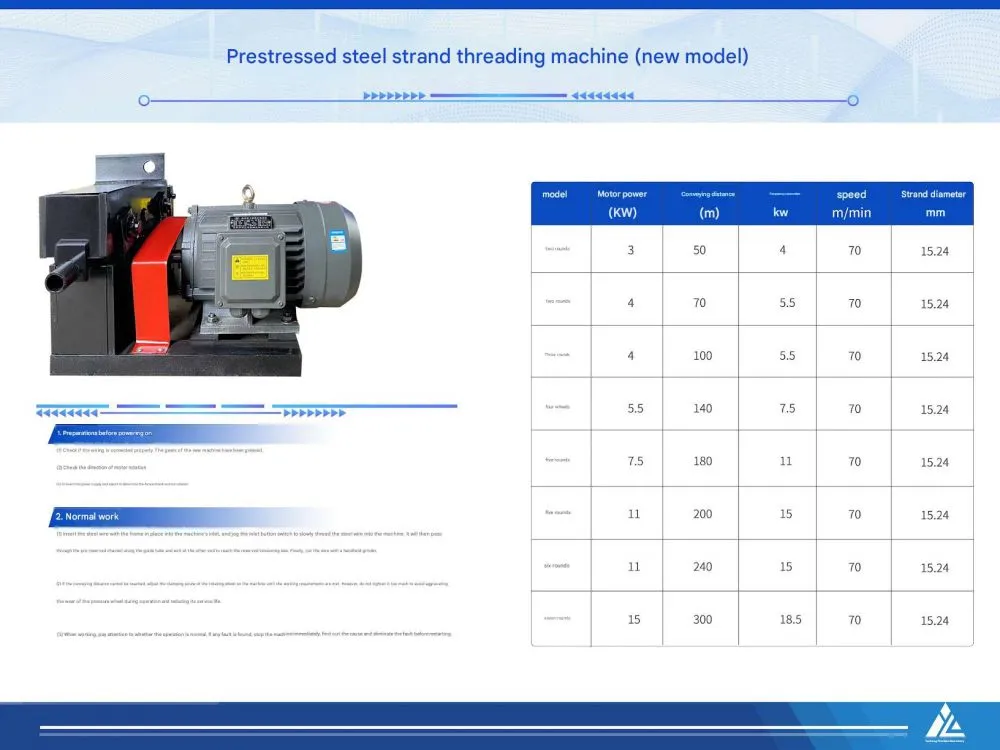

Product Overview
This new type prestressed steel strand threading machine is a special equipment for conveying steel strands in prestressed construction. It is mainly used to feed steel strands into reserved ducts of box girders, T-beams, bridges, highways and other projects. It features stable performance, easy operation and high working efficiency, which can greatly improve construction progress.
Key Features
Equipped with 2-10 wheels for different conveying distance requirements.
Supports forward and reverse operation, easy for threading and adjustment.
Adjustable pressure wheel to ensure stable feeding without damage to steel strand.
Compact structure, easy to move and operate on construction site.
Stable running, low wear, long service life and simple maintenance.
Technical Specifications
Widely used in bridge box girder, T-beam, highway, high-speed railway, tunnel and various prestressed concrete construction projects for steel strand threading work.
Operation Method
Check the circuit and motor rotation direction before starting.
Insert steel strand into the machine inlet and feed slowly by jog control.
Adjust the pressure wheel properly to meet conveying distance.
Stop immediately if any fault occurs and troubleshoot before restarting.
