Product presentation

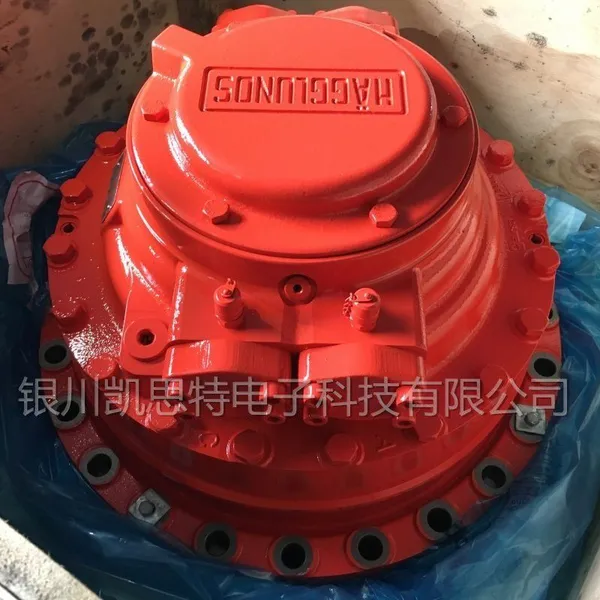

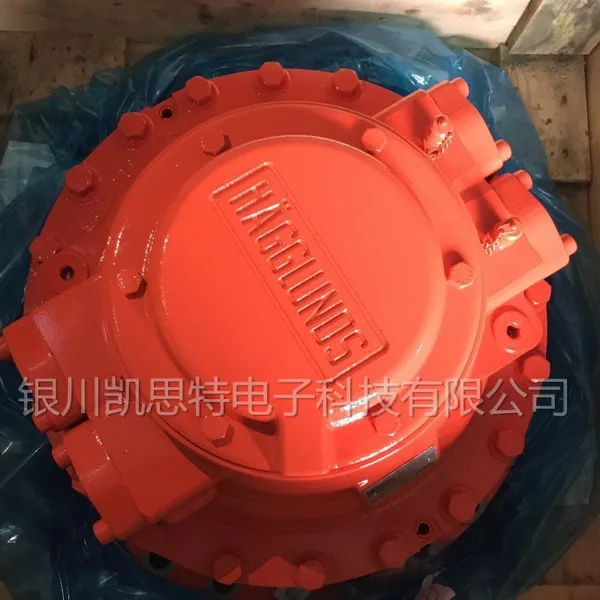

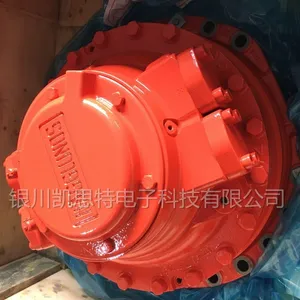

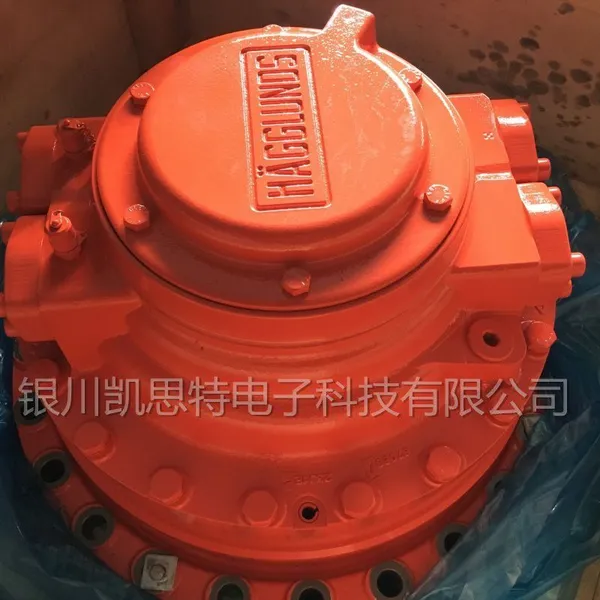

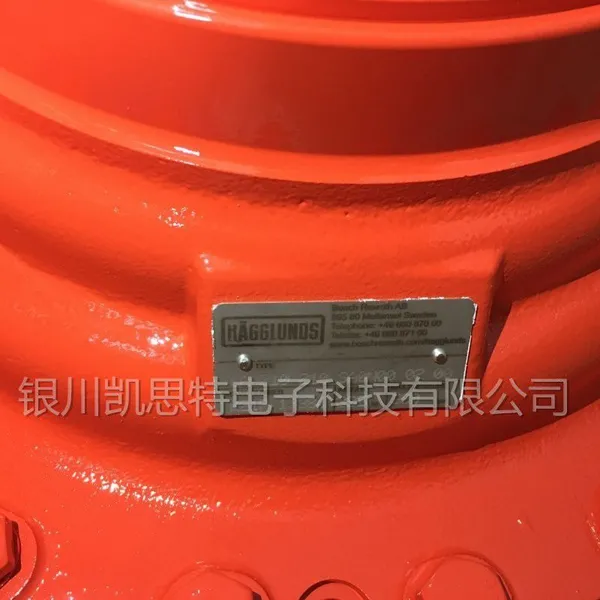

The Hägglunds CA210 series 210 specification internal curve radial piston low-speed high-torque hydraulic motor. The model suffix SA0N000200 indicates: standard installation, without built-in brake, without speed sensor encoder, and conventional oil port configuration.
Structural type: Inner curve radial piston, end face distribution, shell fixed, hollow rotating shaft motor
Installation form: SA standard flange installation, without braking, without sensing, direct oil port (model suffix SA0N0 means)
Overall weight: Approximately 456 kg
Shaft system: Hollow through-hole main shaft, can be driven by a shaft, externally connected winch / drum for direct drive
Four-quadrant operation: Supports forward rotation, reverse rotation, hydraulic braking, load holding
Impact resistance: Heavy-duty impact resistance, suitable for mining, injection molding machine slurry, metallurgy, ships, winches, crushers working conditions
CA: Heggron Compact Direct Drive Motor Series
210: Motor housing specification (CA210 model number)
210: Displacement specification (unit torque 210 Nm/bar, displacement 13200cc/r)
SA: Standard flange installation structure
0: No built-in hydraulic brake
N0: No speed sensor / encoder
000200: Original factory oil port, seal, and oil drain pipeline standard configuration code
| Brand | HÄGGLUNDS |
| Model | CA210210SA0N000200 |
| Displacement | 13200 cm³/r (13.2 L/r) |
| Specific Torque | 210 N·m/bar |
| Continuous Operating Pressure | 250 bar (25 MPa) |
| Maximum Peak Pressure | 350 bar (35 MPa) |
| Rated Torque (at 250 bar) | 52500 N·m |
| Rated Speed | 75 rpm |
