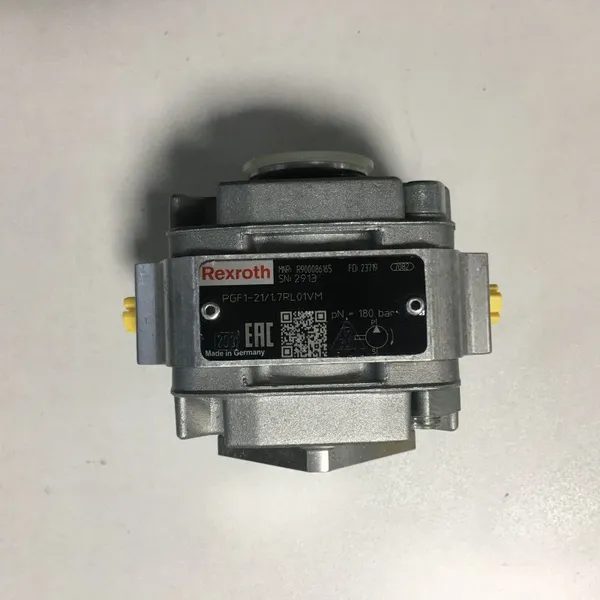

Rexroth R900086165 PGF1-2X/1.7RL01VM Original and Brand-new Gear Pump

Rexroth R900086165 PGF1-2X/1.7RL01VM Original and Brand-new Gear Pump thumbnail-1
Rexroth R900086165 PGF1-2X/1.7RL01VM Original and Brand-new Gear Pump thumbnail-2
Rexroth R900086165 PGF1-2X/1.7RL01VM Original and Brand-new Gear Pump thumbnail-3
Rexroth R900086165 PGF1-2X/1.7RL01VM Original and Brand-new Gear Pump photo-1

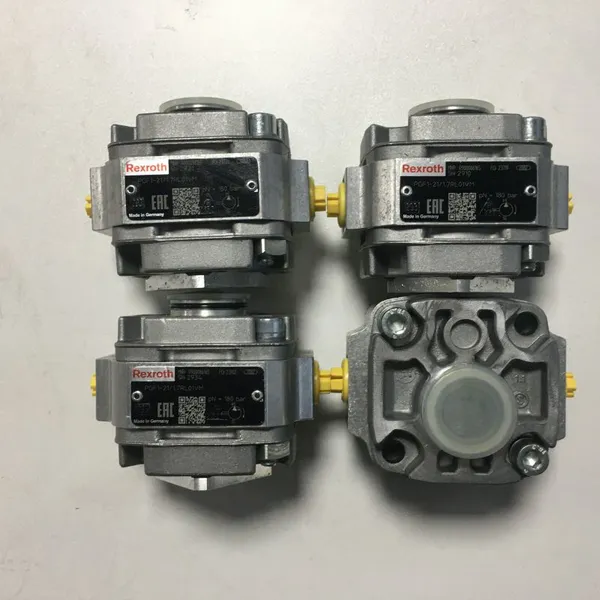

Rexroth R900086165 PGF1-2X/1.7RL01VM Original and Brand-new Gear Pump photo-2

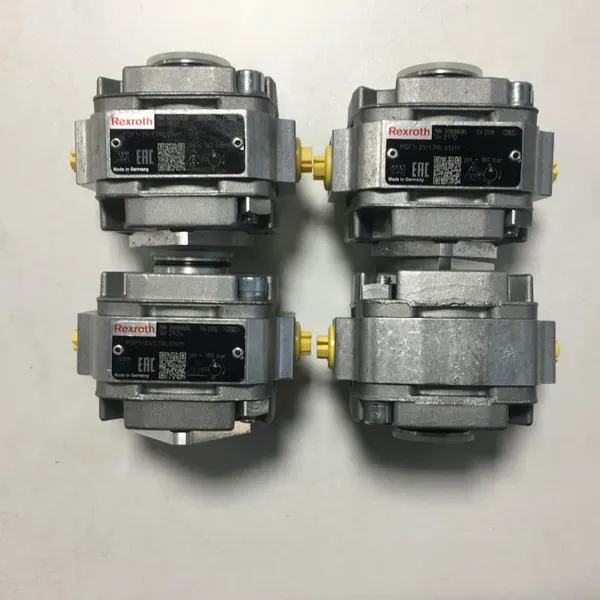

Rexroth R900086165 PGF1-2X/1.7RL01VM Original and Brand-new Gear Pump photo-3

Product Spotlights

Suitable for variable-speed drives, low noise and low pulsation, high efficiency thanks to gap compensation, suitable for two million load cycles at maximum pressure.
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Normal Line Gear Pump
Certification:
CE
Power:
Hydraulic
Contact Supplier Request Quote Chat Now
Yinchuan Kaist Electronics Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
QuanZhou
Delivery Detail:
1 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Normal Line Gear Pump
Certification CE
Power Hydraulic
Applications Machinery Manufacturing
Mesh Form Internal Engaged
Tooth Curve Other

Product presentation

1. Basic Information

Full Model No.: PGF1‑2X/1.7RL01VMPart Number: R900086165Brand: Bosch Rexroth (Germany)Product Type: External‑meshing fixed‑displacement gear pump. It is a high‑pressure gear pump of Rexroth PGF series, commonly used as a power unit in industrial hydraulic systems.

2. Model Code Explanation

  1. PGF1: Series code of Rexroth high‑pressure external‑meshing gear pump, size series 1

  2. 2X: Design version, latest optimized generation

  3. 1.7: Nominal displacement: 1.7 cm³/r (1.7 mL/r)

  4. R: Rotation direction: Right‑hand rotation (clockwise viewed from the drive end)

  5. L: Port arrangement: Side inlet and side outlet

  6. 01: Pressure grade and internal structure specification

  7. VM: Shaft end form, seal configuration and mounting standard; standard keyed shaft suitable for common motors and couplings

3. Key Technical Parameters

  • Nominal displacement: 1.7 cm³/r (1.7 mL/r)

  • Maximum working pressure: Up to 25 MPa

  • Rotational speed range: 600–3000 r/min

  • Working medium: HLP mineral‑based hydraulic oil, viscosity 10–100 mm²/s

  • Connection form: Side flange ports, inlet larger than outlet

  • Structure: High‑precision gear pair, axial clearance compensation structure, high volumetric efficiency and low internal leakage

4. Structural and Performance Features

  1. High‑pressure resistance: Axial automatic clearance compensation ensures stable efficiency under high pressure, good wear‑resistance and impact resistance.

  2. Low noise and low pulsation: Optimized gear tooth profile, stable operation and low flow pulsation.

  3. Compact size: Small volume, light weight, suitable for installation in limited‑space equipment.

  4. Reliable sealing: Optimized VM sealing combination, high temperature and oil resistance, stable long‑term operation.

  5. Strong universality: Standard keyed shaft, compatible with most hydraulic motors and reducers.

5. Typical Applications

Mainly used in small‑flow high‑pressure hydraulic systems including machine tools, automation equipment, small hydraulic stations, testing equipment, precision machinery and light‑duty industrial equipment, providing stable hydraulic power source.


Brand Rexroth
Model

PGF1-2X/1.7RL01VM
Displacement type fixed
Product family PGF
Operating pressure, max. [bar] 180.0
Max. flow [l/min] 7.65
Size 1.7
Through drive with


微信图片_20260408165159_1


FAQ


Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.


Q2: Can you send products to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.


Q3: What's your payment terms ?

A3: By T/T,LC AT SIGHT,100% full payment.


Q4: How long is your production lead time?

A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.


Q5: When can I get the quotation ?

A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.


Product Tags: Original , Brand-new , Gear pump
