Product presentation
1. Basic Information

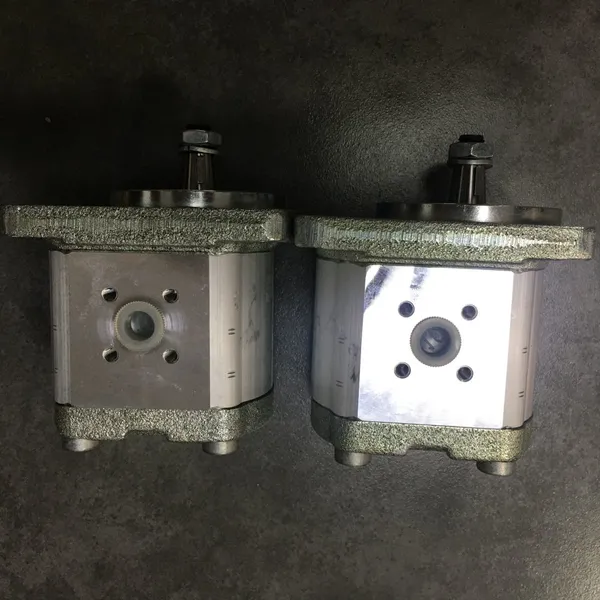

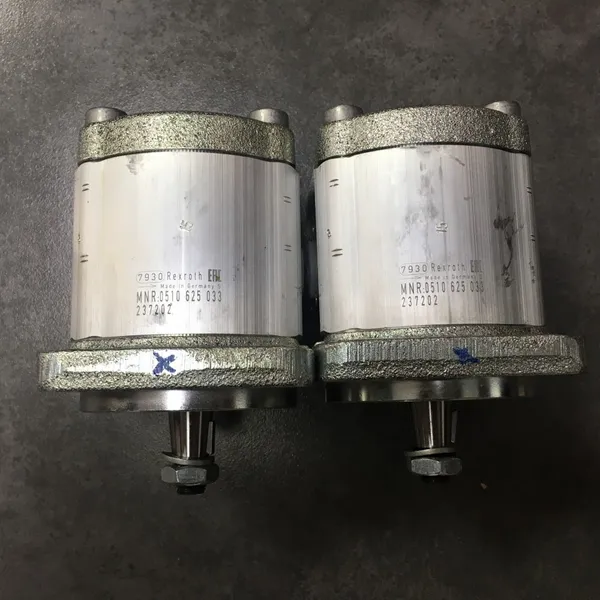

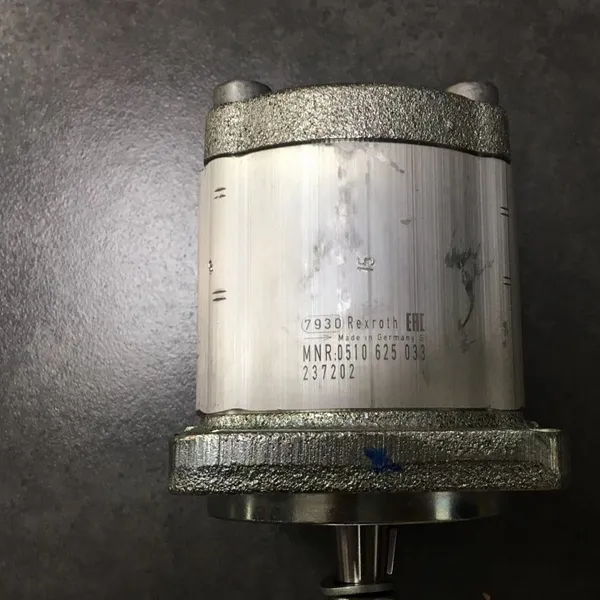

Full Model No.：AZPF‑12‑016RCB20MBMaterial Part No.：0510625033Brand：Bosch Rexroth (Germany)Product Type：External‑mesh fixed‑displacement gear pump. It belongs to the high‑pressure gear pump series AZPF of Rexroth, widely used as a power component in industrial hydraulic systems.
2. Model Code Explanation
AZPF: Series code for Rexroth standard high‑pressure external‑mesh gear pump
12: Size series, defining mounting dimensions and displacement reference
016: Nominal displacement of 16 mL/r (16 cm³/r)
R: Rotation direction: Right‑hand (clockwise viewed from drive end)
C: Mounting form: Flange mounting with plain key shaft
B: Port type: Side inlet & side outlet with flange ports
20: Pressure grade / seal version, suitable for mineral oil with standard high‑pressure seals
MB: Shaft end type, tolerance and seal combination; standard plain key shaft compatible with general motors and couplings
3. Key Technical Parameters
Nominal displacement: 16 cm³/r (16 mL/r)
Max working pressure: 25 MPa, peak pressure up to 28 MPa
Speed range: 600–3000 r/min
Medium: HLP mineral hydraulic oil, viscosity 10–100 mm²/s
Ports: Side flange connection, inlet port larger than outlet port
Structure: Aluminum alloy housing + high‑strength gears with automatic axial clearance compensation, featuring high volumetric efficiency and low leakage
4. Structural & Performance Features
High‑pressure durability: Automatic axial clearance compensation ensures stable volumetric efficiency under high pressure, with excellent wear and impact resistance.
Low noise & low pulsation: Optimized gear tooth profile enables smooth operation and low noise level.
Compact structure: Small size and light weight with flange mounting, ideal for space‑constrained equipment.
Superior sealing: B20MB sealing configuration resists mineral oil and high temperature with minimal long‑term leakage.
Wide compatibility: Standard plain key shaft directly fits asynchronous motors and reducers with universal installation.
5. Typical Applications
Widely applied in medium‑small flow high‑pressure hydraulic systems such as construction machinery, machine tools, injection molding machines, hydraulic power units, lifting equipment, agricultural machinery and automated production lines, serving as a stable pressure oil source.
| Brand | Rexroth |
| Model | AZPF-12-016RCB20MB |
| Nominal size [cm³/rev] | 16.0 |
| Max.intermittent pressure [bar] | 280.0 |
| Maximum rotational speed [rpm] | 3000.0 |
| Drive shaft | Tapered keyed 1:5 |
| Direction of rotation | Clockwise rotation |

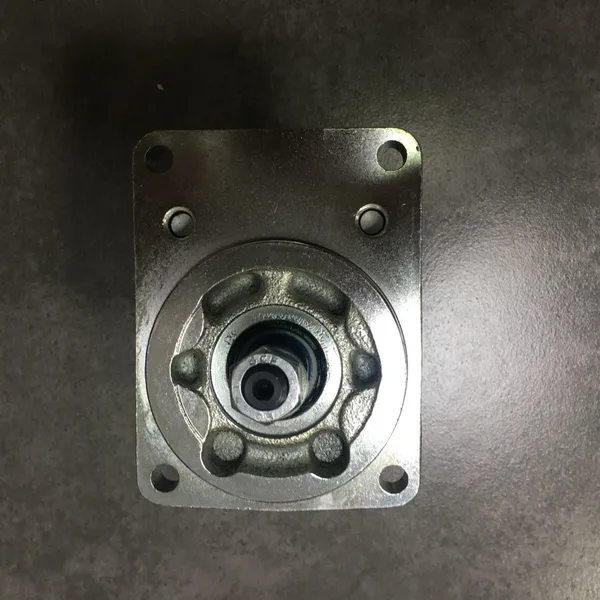

| Front cover | Rect. flange dia. 80 mm |
