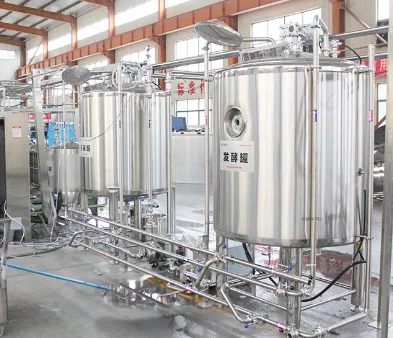

The introduction of equipment:
1, Fresh Milk Temporary Storage Tank:
Scope of Use:
Mainly used in fresh milk, juice, tea drinks and pharmaceutical elements blending before the use of material temporary storage, in order to reduce precipitation to facilitate the subsequent full mixing and blending, temporary storage tank can be optional circulating centrifugal pump and insulation device. This equipment is an indispensable equipment for food, beverage and pharmaceutical plants. The use of materials for SUS304 stainless steel, in Line with GMP production standards.
Device diagram:
Device parameters:
1 Effective Volume:2000L
2. plate for 304# stainless steel;
3. tank insulation Refrigeration compressor power:6.5KW
4. the equipment in the tank is 300MESH, the appearance of 2B sub-light;
5. equipped with self-priming feed pump, sanitary grade.
6. fully enclosed top with 0° , anti-fly dust-proof breathable hole,
7. Equipment Cleaning: The top of the equipment is equipped with 360 degree rotating CIP cleaning head;
8. Digital temperature meter, temperature display range 0ºC-ºC;
9. Equipment Single-layer vertical structure, the lower part of the standard fast connecting valve group.
A . Double top feed Port phiWuyi;
Four only adjustable height feet.
A . Equipment Structure: single-layer cone bottom form
the 4~7 degree holds temperature and can be cooled continuously at constant temperature.
2. Industrial-Grade Ice Water Units :
1 , structural description : It embodies reasonable structure, high efficiency and better power consumption coefficient. Air-cooled form.
Drive Motion: The use of imported compressor machine, two-stage variable speed, first-class pulley, two-stage curved arm gear symmetrical transmission, special alloy bearings, bilateral rolling bearings, horizontal stability, low noise, mechanical efficiency on average increased by about a cent.
Moisturizing sliding: Splash Type free lubrication, safe and reliable.
Main pump body: three-side type, the cover using radial self-position seal, durable, no external leakage.
Device Power: 5P
minimum setting temperature: -5 degrees Celsius.
Device Size: 1500mm*650mm*1450mm ( length * width * height)
3 , GY-2000LS Small and medium-sized Pap milk sterilizer:
1 ), Scope Of Use:
This equipment is widely used in fresh milk, traditional Chinese medicine, biopharmaceutical, soy products, liquid condiments and other materials pasteurization, high temperature sterilization, very suitable for small and medium-sized production of pasteurized milk products. This production-type pasteurization machine sets heating, sterilization, cooling, hot filling as one. It is the ideal complete set of equipment for school and community dairy production enterprises.
2 ), Equipment Features:
The sterilization temperature of this equipment can be set according to the requirements of pasteurization or high temperature sterilization, sterilization temperature the ° C~85 ° C can be adjusted arbitrarily. All parts of the equipment in contact with the product are made of SUS 304 stainless steel, casing washers and seals are made of food grade fluorine rubber, and the product line is connected using DIN Sanitary pipe fittings. In the display output, the production of pasteurization machine configuration has a digital display temperature control system and timing sterilization control system, and according to user requirements to choose the sterilization temperature and sterilization time and pump start and intermittent time. This equipment is a multi-tank combined structure, very suitable for small batches of multi-variety dairy enterprises production and use.
3 ), Equipment Parameters
1. Equipment covers only within a few meters, external steam generators or steam boilers and other facilities.
2. Cooling water consumption 5T/H (optional external Ice water unit, built-in refrigerated liquid cycle refrigeration)
3. rated capacity : 800-2000L/H ( production on Demand adjustment ), the maximum processing capacity of this device is 0L ( optional According to customer needs ))
4. sterilization temperature 75~85ºC up to a maximum ofºC, Can be adjusted according to the actual needs, real-time regulation of PID constant temperature control technology, so that the full temperature zone control Wen Yu, sterilization temperature control accuracy ±1ºC.
5. sterilization time according to different sterilization temperature Set sterilization time .
6. circulation is pump power:1.55KW .
7 . Pipeline filter: Food grade stainless steel filtration mesh.
8. sterilization circulating tank volume:0 liters
9. Sterilization mode: casing Type , pipe diameter
A . Maximum pressure: pressure
One . Cleaning of equipment: circulating filtration and cleaning of high pressure centrifugal pump
A . design work : 8. 5KW
All of the whole machine using high-quality SUS304 stainless steel production, material contact part of the pipe fittings with food-grade seamless SUS304 Pipe .
A . built-in steam temperature control proportional valve set, trap, drain valve.
A . built -in PT100 temperature sensor multiple places.
The automatic PLC automatic control,7 inch color touch screen dynamic display system .
by particle:200~300 mesh
. power supply:3 phase 380V
A . Host size 2800mm*150mm*1950mm ( can be customized according to customer needs production)
Welcome to ask us the price!
