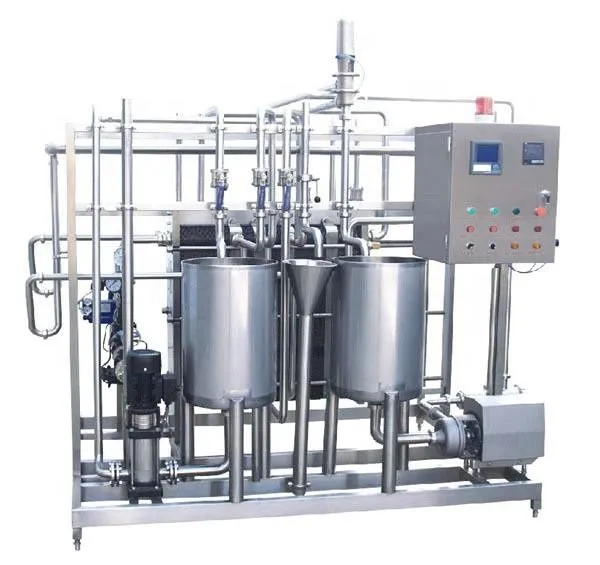

Help CenterShanghai 500l-1000 L/H Multi Tube Uht Sterilizer Tubular Type Pasteurizer Juice Pasteurizer Machine
Related Products
-
Turkey Project Small Scale Juice Milk Banana Milk Strawberry Milk Production LineUS$ 20000.00MOQ: 1 Plant -
Small Scale Juice Milk Banana Strawberry Hami Melon Sweet Potatoes Milk Production LineUS$ 20000.00MOQ: 1 Plant
-
Stainless Steel Milk Homogenization Machine Equipment 30 50 100 200 500 L Per HourUS$ 3050.00MOQ: 1 Set
-
Shanghai High Pressure Machine Homogenizer Plant for MilkUS$ 3090.00MOQ: 1 Set
-
Industrial Ice Cream Production LineUS$ 25000.00MOQ: 1 Plant
Sweetened condensed milk production line
Turnkey pasteurized milk production line/UHT milk processing line/milk drink processing machines.
The whole milk production line consists of the following systems:
1. Water treatment system
2. Suger melt system
3. Sterilizer system
4. Filling and packing system
5. CIP cleaning system
6. After treatment equipments, like conveyor, package or pallet, etc.
7. There are other assistant equipments used such as steam boilers, air compressor, cold water unit, etc.
8. Installation materials for the process pipline, utility pipeline as well as electrical installation are provided.
Filling and packing types can be decided by the customer then designed accordingly.
Our company can design customized milk production lines in accordance to the customers' requirements. The production capacity varies from 1000L/h to 10000L/h according to customer's need
Note: this milk production lines can be widely used to produce UHT milk, pasteurized milk, setted milk, stirred milk, milk drink, yogurt, ice cream, condensed milk and milk powder, and so on.
Milk &Yogurt & Beverage Processing Line flow chart
|
Standard Equipment list of DAIRY PRODUCTION LINE |
||
|
NO. |
NAME |
MAIN TECHNOLOGY PARAMETER |
|
1 |
MILK RECEIVESTORAGE |
|
|
2 |
milk receiving tank |
SUS304 stainless steel,single layer,CIP cleaning ball |
|
3 |
milk pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
4 |
double filter |
SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh |
|
5 |
dish separator |
auto residue discharge |
|
6 |
cooling tank |
SUS304 stainless steel,alveolate jacket,attached with compressor |
|
7 |
milk pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
8 |
blending tank |
SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet |
|
9 |
milk pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
10 |
mini set of plate-type heat exchanger |
SUS304 stainless steel,two stages, |
|
11 |
milk pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
12 |
UHT sterilizer |
tub-type,sterilizing temperature 137 C,holding time 4S,full automatic control |
|
13 |
high pressure homogenizer |
40MPa,(starting box included) |
|
14 |
CIP system |
|
|
15 |
semi-auto CIP system |
outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way,Concentrated acid/alcali tank adding system based on US technology, 100L×2 acid/alcali Concentrate tanks |
|
16 |
CIP return pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
17 |
installation part |
whole milk processing line installation and commissioning |
Sweetened condensed milk plant Process Flow
Inspection on raw milk -- Milk clarification -- Cooling --Storage -- Standardization -- Pre-heating -- Homogenization -- Sterilization -- Evaporation -- Cooling and crystallizing -- Filling -- Secondary sterilization
