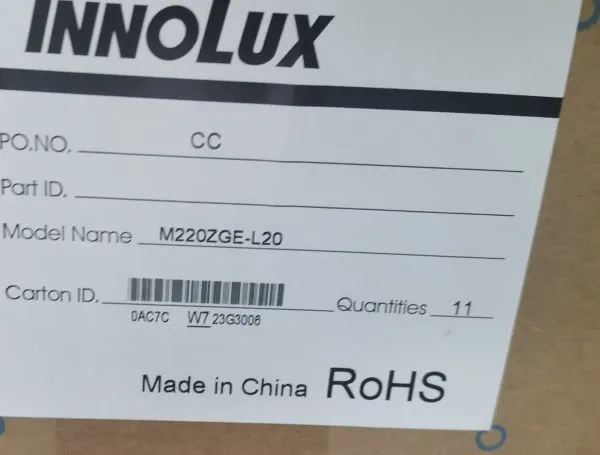

M220ZGE-L20 is a 22.0-inch LCD module product launched by Innolux. The detailed parameters are as follows:
1.?Panel Type: a-Si TFT-LCD
2.?Resolution: 1680 (RGB) × 1050, WSXGA+
3.?Pixel Configuration: RGB vertical stripe
4.?Dot Pitch: 0.094×0.282mm
5.?Pixel Pitch: 0.282×0.282mm
6.?Display Size: 473.76 (W) × 296.1 (H) mm
7.?External Dimensions: 493.7 (W) × 320.1 (H) mm
8.?Visible Size: 477.7 (W) × 300.1 (H) mm
9.?External Thickness: 11.0±0.5mm
10.?Surface Treatment: Matte (Haze 25%), Hard coating (3H)
11.?Brightness: 250cd/m2 (Typ.)
12.?Contrast Ratio: 1000:1 (Typ.) (Transmissive)
13.?Viewing Angle: 85/85/80/80 (Typ.) (CR≥10)
14.?Display Mode: TN, normally white display, transmissive
15.?Response Time: 1.3/3.7 (Typ.) (Tr/Td) ms
16.?Display Color: 16.7M (8-bit)
17.?Color Gamut: 72% NTSC (CIE1931)
18.?Backlight Type: WLED
19.?Number of Tubes: 12S4P
20.?Tube Position: Edge-lit light source (right side)
21.?Tube Life: 40K (Min.) (Hours)
22.?Signal Interface: LVDS (2 ch, 8-bit)
23.?Input Voltage: 5.0V (Typ.)
24.?Operating Temperature: 0~50°C
25.?Storage Temperature: -20~60°C
26.?Weight: 2.10/2.25Kgs (Typ./Max.)
Chimei 22-inch LCD Screen
Model: M220ZGE-L20
Resolution: 1920*1080
Brightness: 250cd/m2
Viewing angle: 85/85/80/80 degrees
Contrast ratio: 1000:1
Operating temperature: 0~50°C
Storage temperature: -20~60°C
