BOE MV270QUM-N10 LCD Module Core Parameters

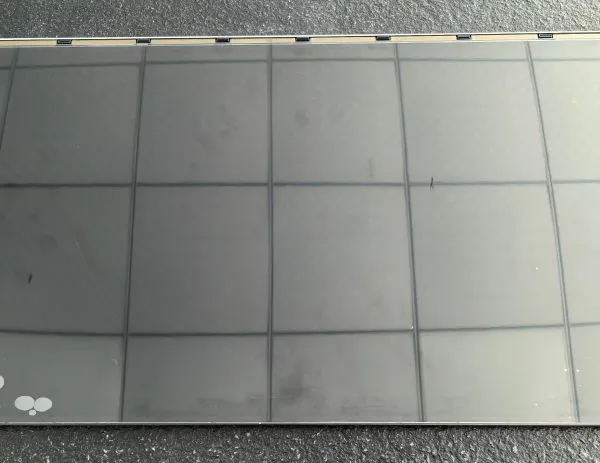

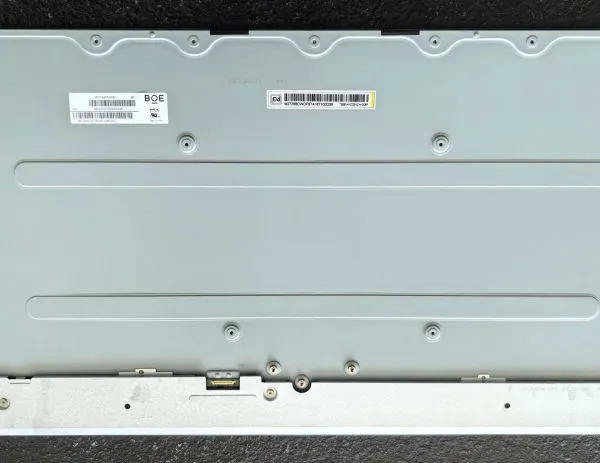

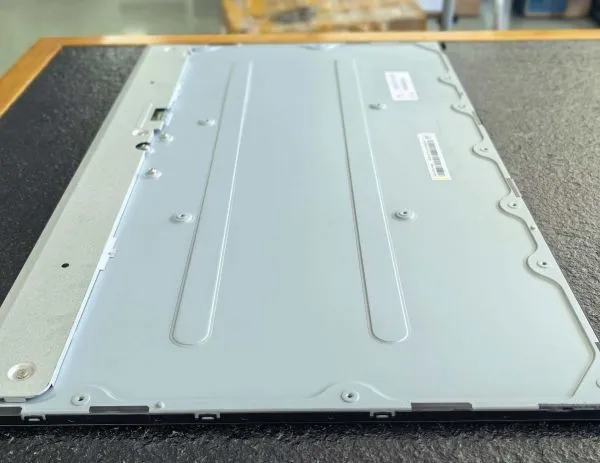

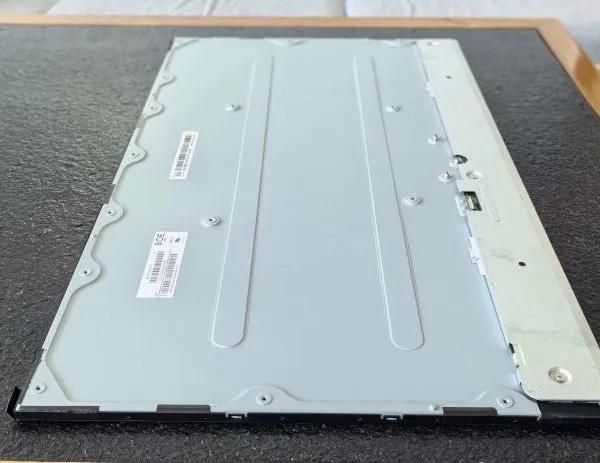

This is a 27-inch a-Si TFT-LCD liquid crystal module launched by Beijing Oriental (BOE), featuring 4K HD display, suitable for desktop displays, commercials and other scenes. It is designed for a flat rectangular with a bezel. Here are the core parameters:
Basic Specifications
Resolution: 3840 (RGB) × 2160 (UHD 4K), pixel density 163 PPI
Pixel arrangement: RGB vertical strip
Panel type: ADS screen, constant black display, transmission type
Ratio of width to height: 16: 9
Surface treatment: anti-glare (haze 25%) + 2 H hard coating
Size parameters
Effective display area: 596.736 (W) × 335.664 (H) mm
Border opening area: 602 (W) x 340.8 (H) mm
Appearance Overall size: 621.8 (W) x 360.6 (H) mm
Thickness: 13.5mm
Weight: 3.23Kgs
Optical parameters
Brightness: 250 cd / m2 (value)
Contrast ratio: 1000: 1 (value)
Viewing angle: 89 / 89 / 89 / 89 (left / right / up / down, CR ≥ 10)
Response time: 14 ms (value, G to G)
Display color: 1.07 billion color (8bit + Hi-FRC)
Color Saturation: 72% NTSC
Backlighting and Electrical
Backlight type: WLED (18S4P), side light source, no driver
Backlight Life: 30 K hours (value)
Signal interface: eDP (4 Lanes), 30pin connector
Input voltage: 10.0 V (value)
Refresh rate: 60 Hz
Power consumption: DC12V / 2A power adapter
Environmental parameters
Working temperature: 0 ~ 50 ° C
Storage temperature: -20 ~ 60 ° C
