1.Product Overview

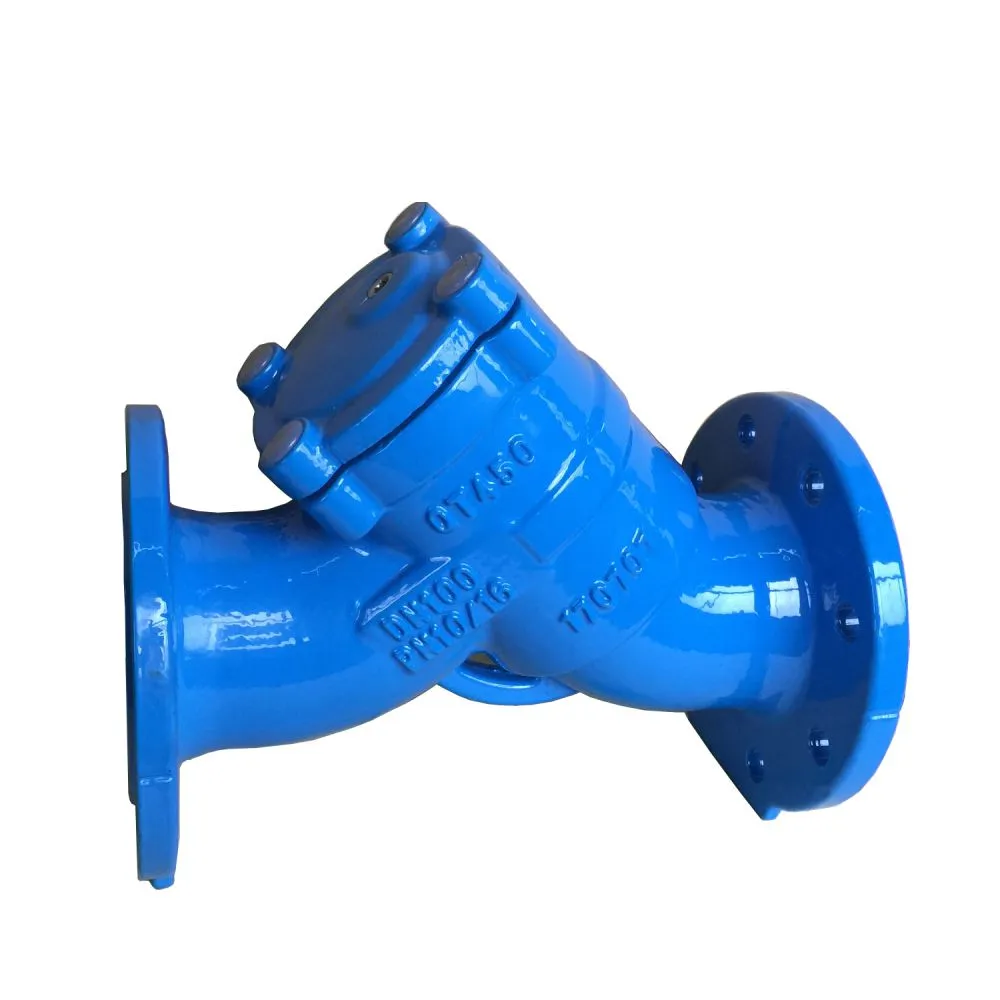

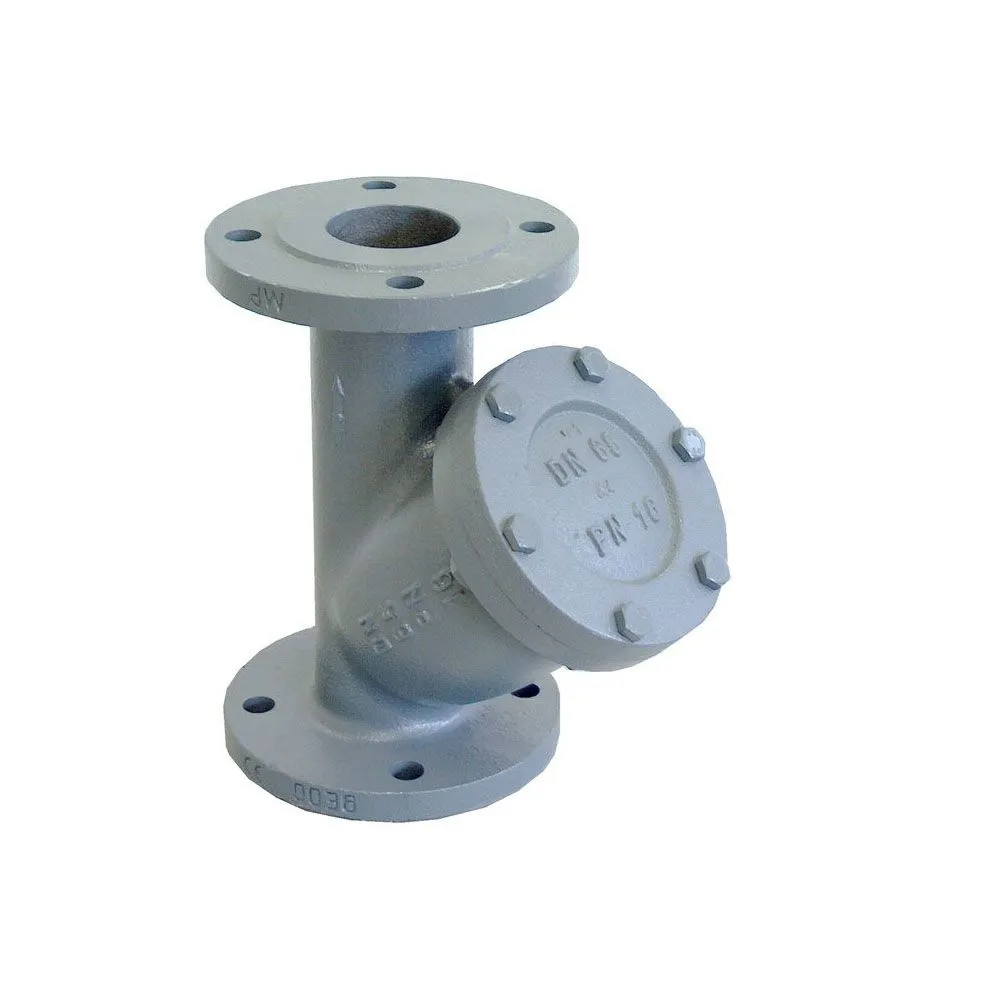

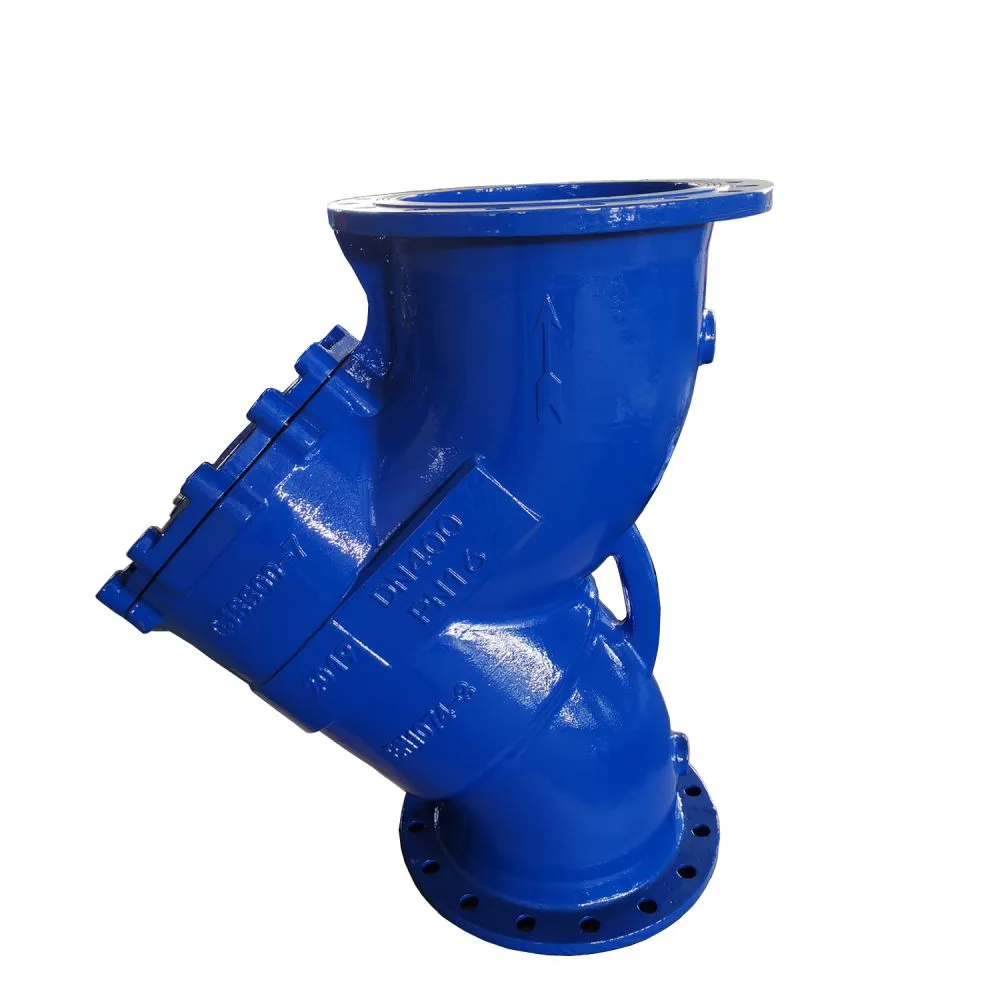

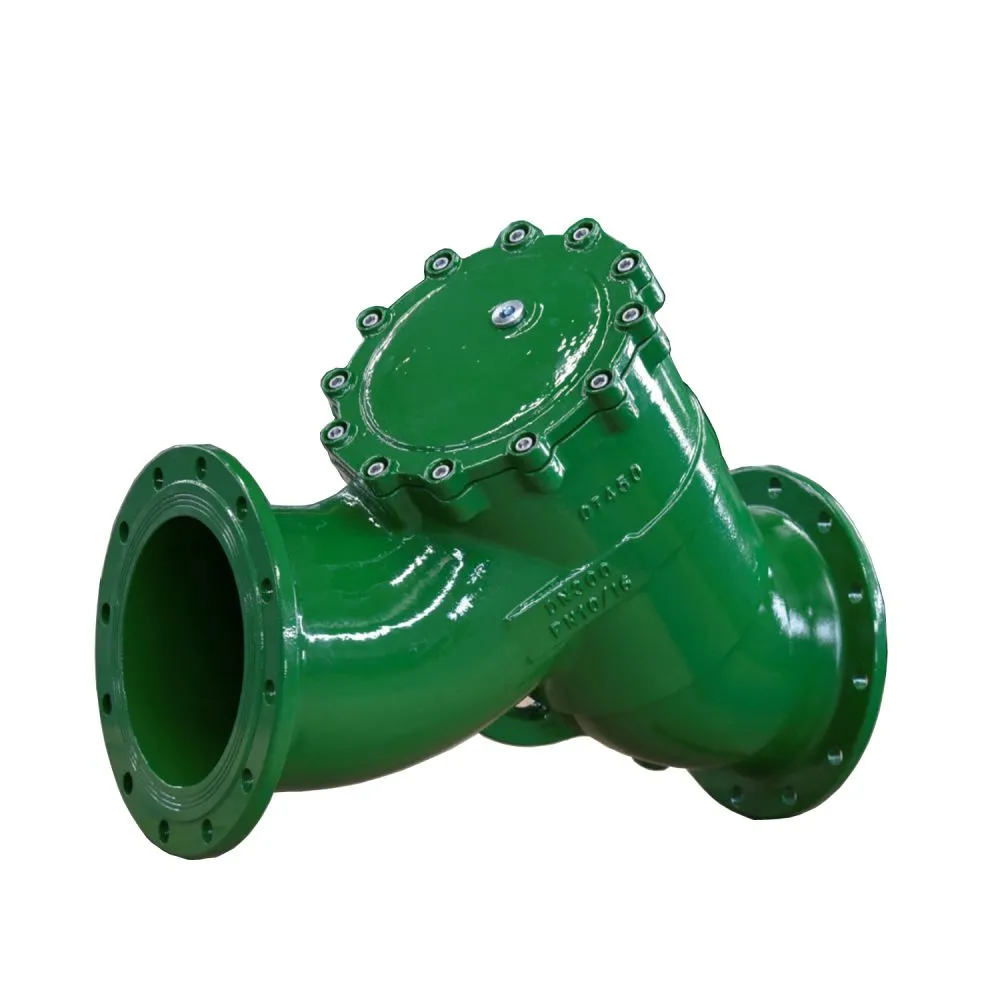

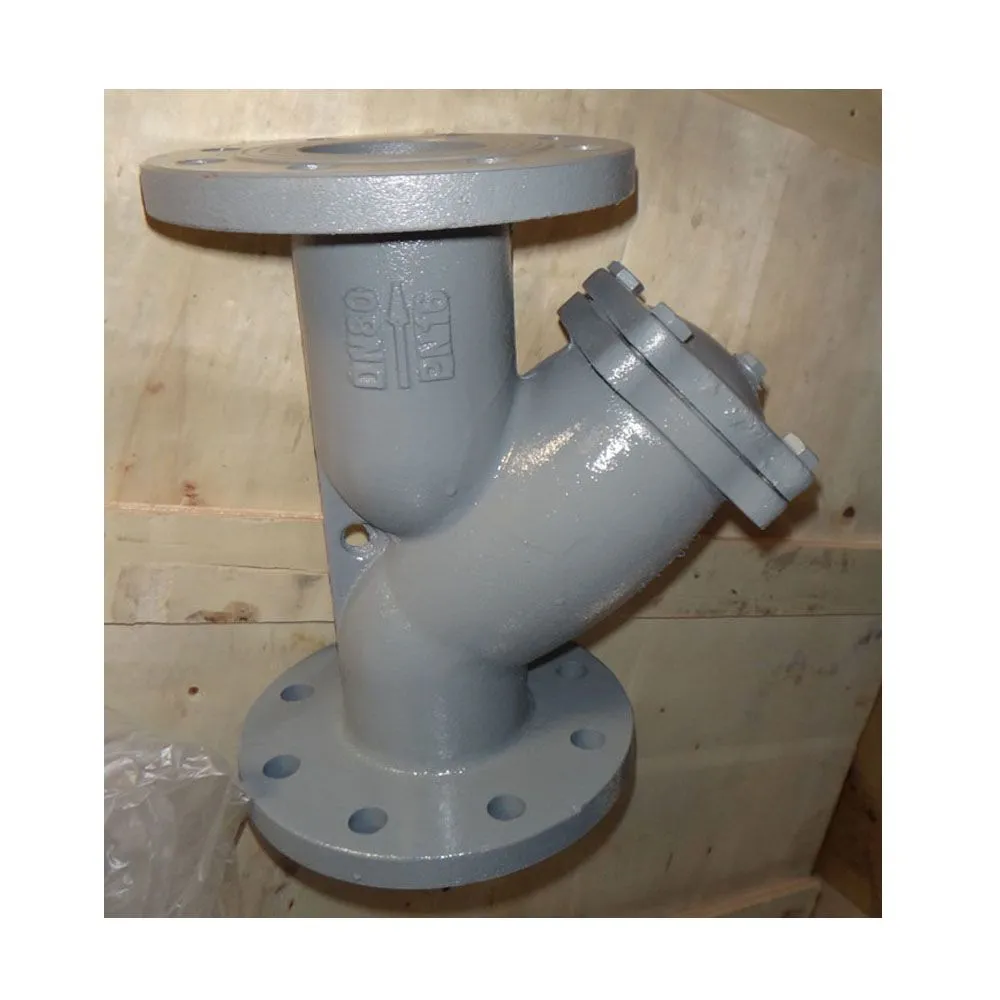

Our ANSI Y-Type Strainer is a high-performance industrial filtration device designed to remove solid impurities from pipeline media, protecting downstream valves, pumps, meters, and other equipment from damage. With an advanced structure featuring low flow resistance and easy maintenance, it is ideal for water, oil, steam, and other general industrial media. Typically installed upstream of pressure relief valves, pressure reducing valves, and control valves, it ensures the clean operation of pipeline systems and extends the service life of critical equipment. Cleaning is extremely convenient: simply remove the filter screen, clean the trapped impurities, and reinstall it, minimizing downtime and maintenance costs.
2. Key Features
✅ Advanced Structure & Low Flow Resistance: Optimized Y-shaped design reduces pressure drop, ensuring efficient media flow while effectively filtering impurities.
✅ Easy Maintenance & Cleaning: Quick-access bonnet design allows for fast screen removal and reinstallation, no special tools required.
✅ Wide Application Compatibility: Suitable for water, oil, steam, and other non-corrosive/moderately corrosive media, covering HVAC, water treatment, oil & gas, chemical, and general industrial pipeline systems.
✅ Strict Compliance with International Standards: Manufactured in full compliance with ASME B16.34 (design), ASME B16.10 (flange), BS EN558 (face-to-face), and API 598 (testing) standards, ensuring reliable performance and global interchangeability.
✅ Premium Material Selection: High-quality body/bonnet materials (ASTM A126B, ASTM A536 65-45-12) and durable filter screens (2Cr13, SS304, SS316) ensure long service life in harsh working conditions.
✅ Full Size & Pressure Range: Available in sizes from 1/2" to 16" (DN15 to DN400mm) with pressure ratings of 125LB and 150LB, meeting diverse pipeline specification requirements.
3. Technical Specifications
| Item | Details |
|---|---|
| Product Name | ANSI Y-Type Strainer |
| Size Range | 1/2" - 16" (DN15 - DN400mm) |
| Pressure Rating | 125LB, 150LB |
| Design Standard | ASME B16.34 |
| Face-to-Face Standard | BS EN558 |
| Flange Standard | ASME B16.10 |
| Testing Standard | API 598 |
| Body & Bonnet Material | ASTM A126B, ASTM A536 65-45-12 (Carbon Steel / Ductile Iron) |
| Filter Screen Material | 2Cr13, SS304, SS316 (Stainless Steel) |
| Plug Material | ASTM A126B, Brass |
| Cover Gasket Material | Graphite with Soft Steel, EPDM, NBR |
| Applicable Media | Water, Oil, Steam |
| Connection Type | Flanged End |
4. Material & Structure Introduction
4.1 Main Component Materials
Body & Bonnet: Made of high-strength ASTM A126B cast iron or ASTM A536 65-45-12 ductile iron, with excellent pressure resistance and corrosion resistance, suitable for long-term use in industrial pipelines.
Filter Screen: Precision-machined 2Cr13, SS304, or SS316 stainless steel mesh, with uniform pore size and high filtration accuracy, effectively intercepting solid impurities without affecting media flow.
Plug & Gasket: Durable ASTM A126B plug and multi-type gaskets (graphite, EPDM, NBR) ensure reliable sealing under different temperature and pressure conditions, preventing media leakage.
4.2 Working Principle
The Y-Type Strainer is installed in the pipeline in a Y-shaped structure. When the medium flows through the strainer, the solid impurities are intercepted by the filter screen, and the clean medium flows out from the outlet. The trapped impurities are collected in the screen chamber, which can be cleaned regularly by removing the bonnet and screen, ensuring continuous and efficient filtration.
5. Application Scenarios
Water Treatment Systems: Filtration of tap water, industrial circulating water, and sewage to protect water pumps, valves, and meters.
Oil & Gas Industry: Filtration of crude oil, natural gas, and petroleum products to prevent pipeline blockage and equipment damage.
HVAC & Building Systems: Filtration of heating, ventilation, and air conditioning systems to protect air conditioning units and heating equipment.
Chemical & Petrochemical Industry: Filtration of chemical media to protect reactors, pumps, and control valves.
Power Plant Systems: Filtration of boiler feed water, cooling water, and steam to protect power generation equipment.
About Our Factory
Our factory is a professional valve manufacturer with more than 30 years of production experience, located in Xingtai, Hebei, China. The factory covers an area of 70,000 square meters, with 400+ employees, and has passed ISO9001 quality management system certification. Our products are exported to more than 50 countries and regions in Europe, America, Southeast Asia, Middle East and Africa, winning high praise from global customers. We adhere to the business philosophy of "Quality First, Customer Supreme", providing customers with high-quality products and professional services. Welcome to contact us for inquiry and cooperation!
✅ International Quality Certification
Our company is certified by ISO 9001 Quality Management System, ensuring strict quality control throughout the production process, and delivering reliable valve products to global customers.
-
🔹 Packaging and Transportation
Packaging：Standard export plywood case / carton, with foam protection to avoid damage during transportation
Delivery Time：3-7 working days for stock, 15-20 working days for customized orders
Shipping Method：Sea freight, air freight, express (DHL, FedEx, etc.)
Customization Support：Accept customized size, pressure, material, logo, etc.
Q&A
Q1: What is the filtration accuracy of your Y-Type Strainer?A: Our standard filter screen mesh size is 20-100 mesh, and we can customize higher or lower accuracy according to customer requirements.
Q2: Can you provide other pressure ratings besides 125LB and 150LB?A: Yes, we can produce 300LB, 600LB and other pressure ratings, please contact us for details.
Q3: Do you provide test reports and certificates?A: Yes, we can provide API 598 test reports, material certificates, and other relevant certificates as required.
