Help CenterDN25-DN300 Three-Way Control Valve ASTM A126B Body With Multiple Trim Materials 125LB/150LB, MSS SP-70 Compliant
Product Spotlights
Related Products
-
Low Resistance DIN Strainer Easy Cleaning, Install Before Pressure Relief & Reducing Valves DIN Strainer DN15-DN600 PN10 PN16, DIN3202-F1US$ 50 - 700MOQ: 1 Piece -
BS Standard Cast Iron Foot Valve Flanged End PN16NegotiableMOQ: 1 Piece
-
Heavy Duty BS Flanged Foot Valve Bottom Valve for Well & TankNegotiableMOQ: 1 Piece
-
BS Compliant Swing Foot Valve High Flow Rate DesignNegotiableMOQ: 1 Piece
-
Compact BS Foot Valve With Filter Mesh Fire Service ApplicationNegotiableMOQ: 1 Piece
Product Overview

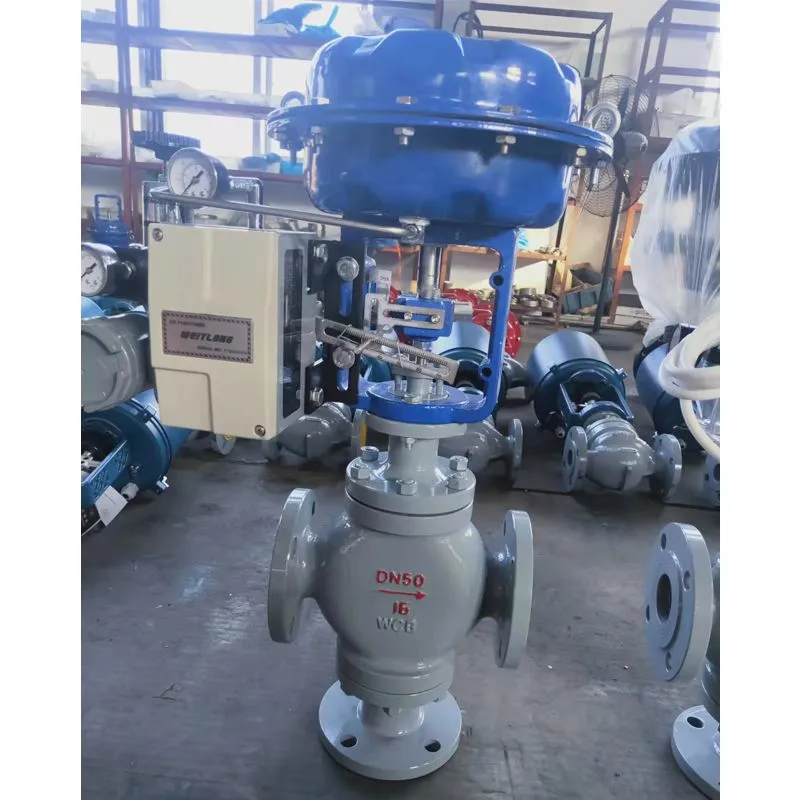

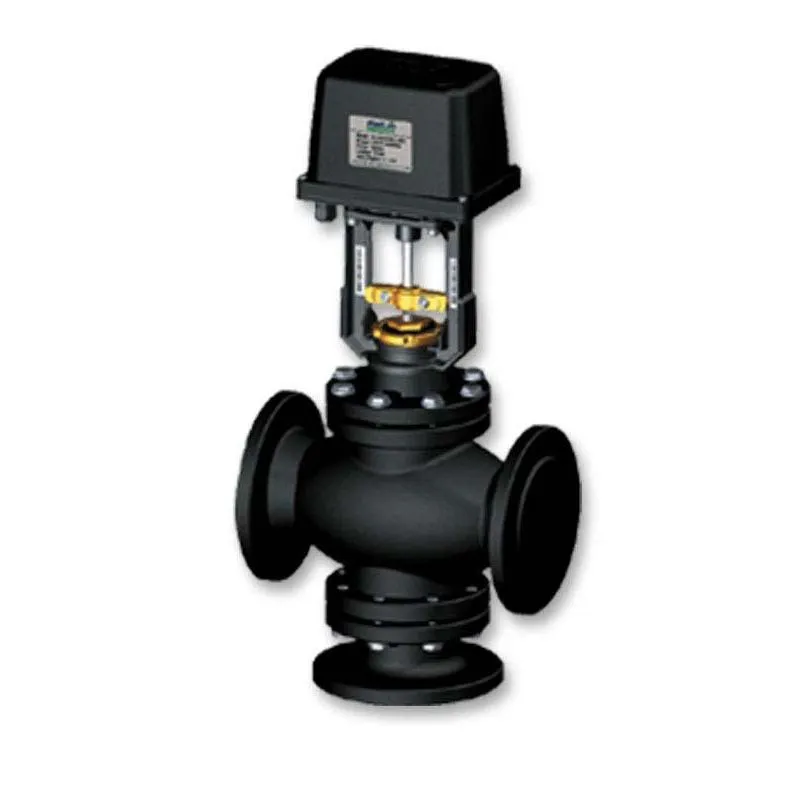

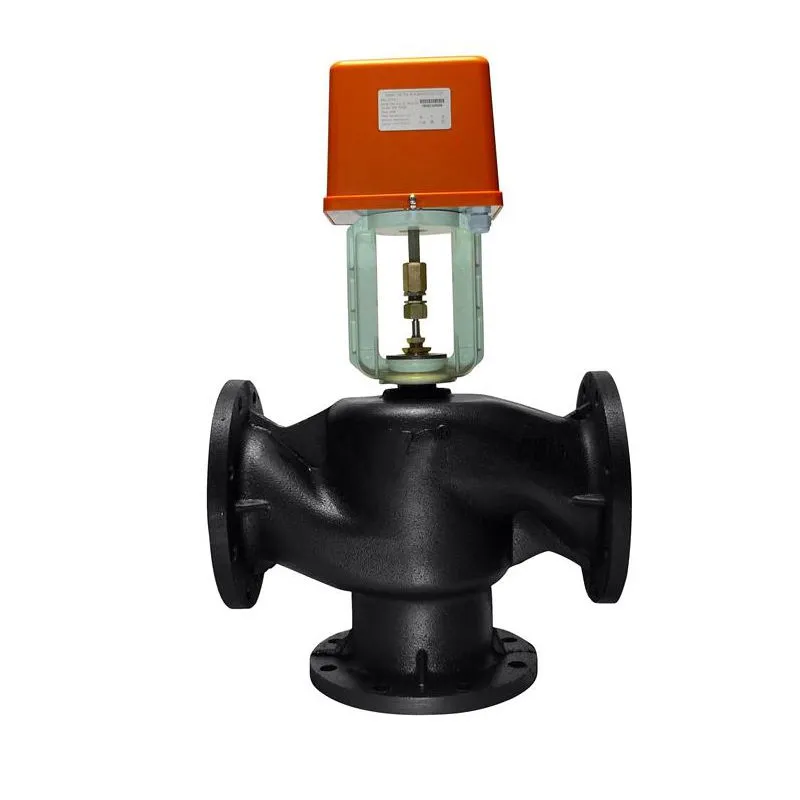

This three-way control valve is available in combined flow and split flow modes. It features a cylindrical thin-wall window valve core with side guiding structure, delivering flexible operation and stable performance.
It can replace two two-way valves and one three-way connecting pipe on site, simplifying pipeline layout and reducing overall costs. Widely used for two-phase regulation of heat exchangers and general fluid proportioning regulation.
Technical Specifications
| Item | Details |
|---|---|
| Size Range | 1''-12'' (DN25-DN300) |
| Pressure Class | 125LB, 150LB |
| Design Standard | MSS SP-70 |
| Face to Face | ANSI B16.10 |
| Flange Standard | ANSI B16.1 |
| Testing Standard | MSS SP-70, API 598 |
Main Materials
Valve Body & Bonnet: ASTM A126B
Valve Stem: 2Cr13, SS304, SS316, Carbon Steel
Packing: PTFE, Graphite
Sealing Gasket: Rubber Asbestos Board, Stainless Steel Winding Gasket
Valve Seat: SS304, SS316
Core Advantages
Dual flow modes of combined flow and split flow to satisfy various flow regulation requirements.
Optimized cylindrical thin-wall window core and side guiding structure ensure precise movement and superior sealing performance.
Streamlines pipeline configuration by replacing multiple valves and pipes, saving installation space and investment cost.
Fully manufactured and tested in compliance with international standards for stable quality and good interchangeability.
Multiple material options for key components to adapt to different media and working conditions for extended service life.
Application
Two-phase regulation of heat exchangers
Fluid proportioning control systems
Industrial pipeline flow distribution and confluence
General industrial automatic control pipelines
Remarks
Custom materials and technical specifications are available to match your actual working conditions. Every unit undergoes strict pressure and sealing tests before delivery. Feel free to contact us for quotations and detailed drawings.
About Our Factory
Our factory is a professional valve manufacturer with more than 30 years of production experience, located in Xingtai, Hebei, China. The factory covers an area of 70,000 square meters, with 400+ employees, and has passed ISO9001 quality management system certification. Our products are exported to more than 50 countries and regions in Europe, America, Southeast Asia, Middle East and Africa, winning high praise from global customers. We adhere to the business philosophy of "Quality First, Customer Supreme", providing customers with high-quality products and professional services. Welcome to contact us for inquiry and cooperation!
✅ International Quality Certification
Our company is certified by ISO 9001 Quality Management System, ensuring strict quality control throughout the production process, and delivering reliable valve products to global customers.
-
🔹 Packaging and Transportation
Packaging：Standard export plywood case / carton, with foam protection to avoid damage during transportation
Delivery Time：3-7 working days for stock, 15-20 working days for customized orders
Shipping Method：Sea freight, air freight, express (DHL, FedEx, etc.)
Customization Support：Accept customized size, pressure, material, logo, etc.
Q&A
Q: What is your lead time for standard and customized orders?
A: Standard orders are usually shipped in 3-5 working days, while customized orders take around 20 days.
Q: Do you provide warranty for your valves?
A: Yes, we offer a 1-year warranty against manufacturing defects.
Q: Which international standards do your valves comply with?
A: Our valves meet multiple standards, including GOST (Russian), ASME/ANSI (American), DIN (German), JIS (Japanese), BS (British), and EN (European) standards.
Q: Are you a manufacturer or a trading company?
A: We are a direct factory with in-house production capabilities, ensuring stable quality and competitive pricing.
Q: Can you customize valves based on specific technical requirements?
A: Yes, we support customized designs, materials, and specifications to meet different project and regional standard needs.
