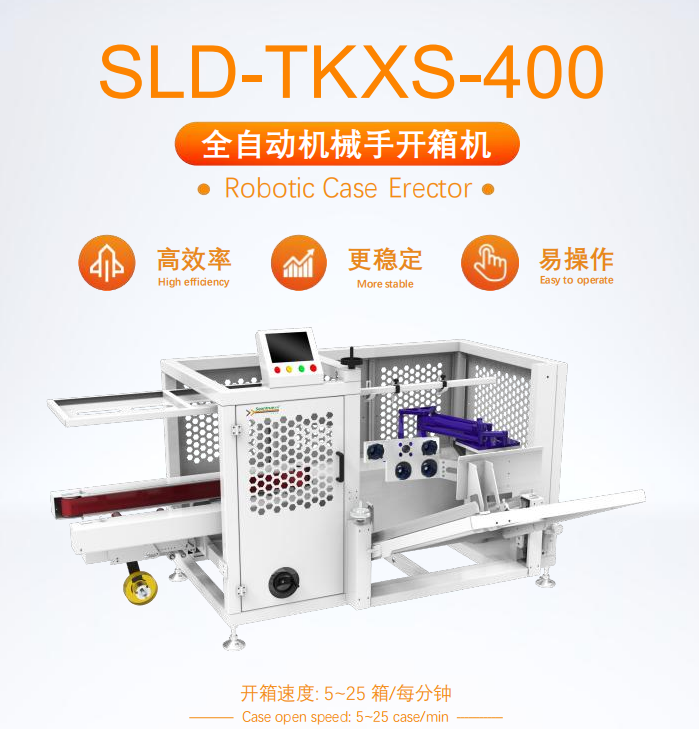

Automatic Robotic Case Erector Machine Case Opener Carton Erector
Robotic Case Erector Case open speed: 5~25 case/min
Easy to operate and maintain; Seamless docking with other equipment;
High degree of automation, reduce labor; ADOPT SERVO motor drive, ensure Carton Square;
Low noise, smooth operation, no damage to cartons; Machines occupy less space;
Adopt inclined type no power box design, replenish carton Can be customized, widely used in all walks of life. at any time, need not stop machine;

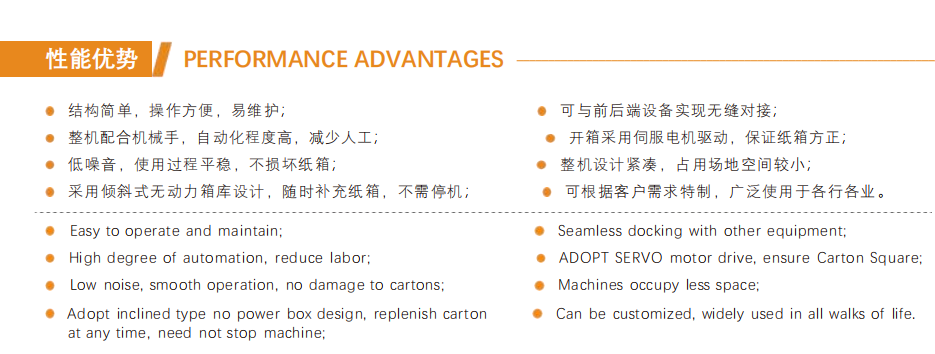

Main Feature of Case Erector
1.Integrated with a robotic arm, high automation to reduce labor costs.
2.Smooth, low-noise operation protectscartons and maintains a quiet production floor.
3.Adopt inclined type unpowered carton silo allows non-stop refilling, replenish carton at any time.
4.Seamless integration with upstream and downstream equipment simplify line layout.
5.Adopt servo motor drive the belts on both sides, ensure the synchronous operation of the belts on both sides to keep the cartons square.
6. Machines occupy less space,compact footprint.

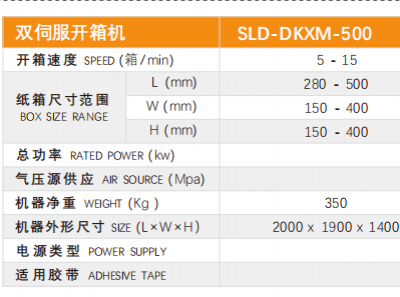

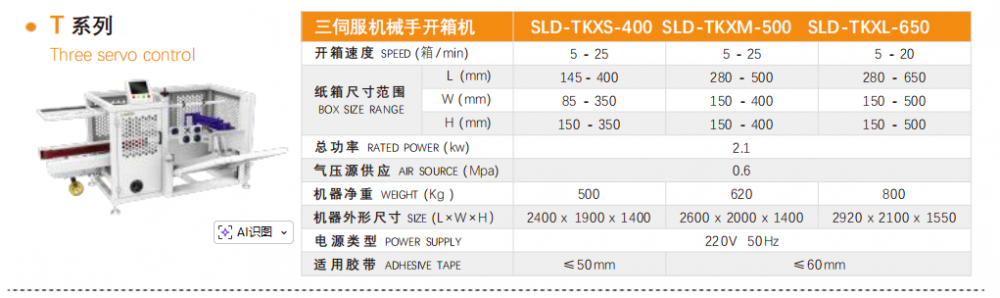

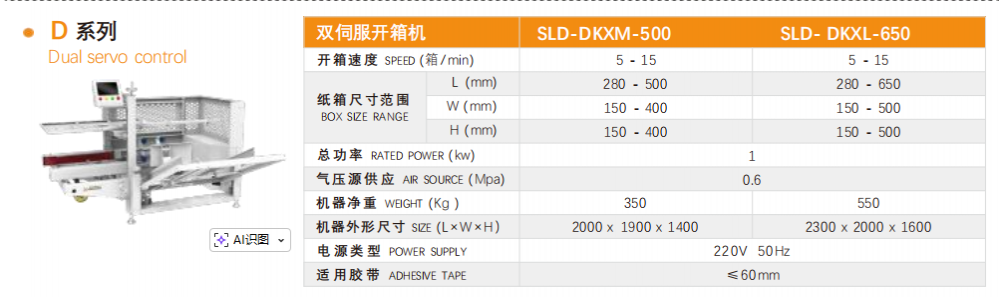

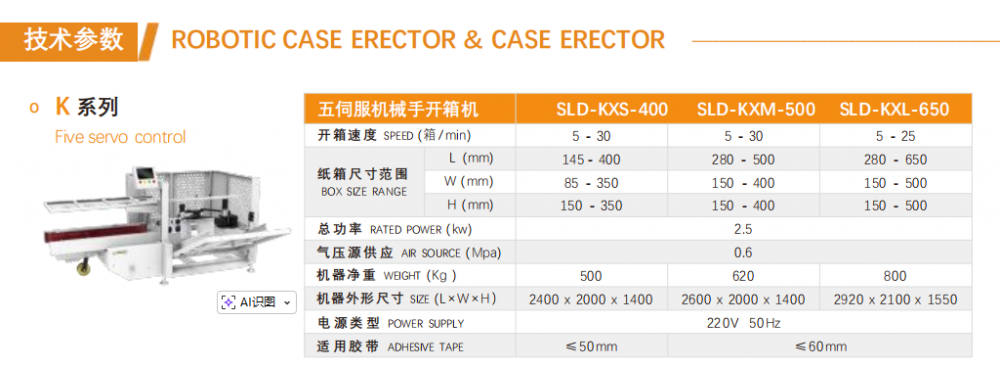

Specification
Robotic arm design
Servo motors confirm accuraty and flexibility
Clined carton storage rack
The robotic arm uses suction cups to adsorb cardboard boxes, making the unboxing operation more precise, flexible, and fast.
Servo-driven robotic arms can adapt to 24-hour non-stop operation, providing more stable performance and longer service life.
An inclined design that allows boxes to automatically drop for feeding by their own gravity, which is energy-saving .
Item No. |
TSXS-400 |
TSXM-500 |
TSXL-650 |
Power |
Three phase five - wire 380V /50HZ 2KW |
Three phase five - wire 380V /50HZ 2KW |
Three phase five - wire 380V /50HZ 5KW |
Packing speed |
15-25 pcs/min |
15-20 pcs/min |
15-20 pcs/min |
Compressed air consumption |
0.6-0.8 mpa/min |
0.6-0.8 mpa/min |
0.6-0.8 mpa/min |
Machine size |
240*190*140cm |
260*190*140cm |
230*168*210cm |
Machine weight |
500kgs |
600kgs |
700kgs |
Carton size range for length |
145-400mm |
280-500mm |
280-650mm |
Carton size range for width |
85-350mm |
150-400mm |
150-500mm |
Carton size range for height |
150-350mm |
150-400mm |
150-500mm |
Adhesive tape size range |
Width≤6cm |
Width≤6cm |
Width≤ 6cm |
we can manufacture according to your requirement. so welcome your enquiry.
