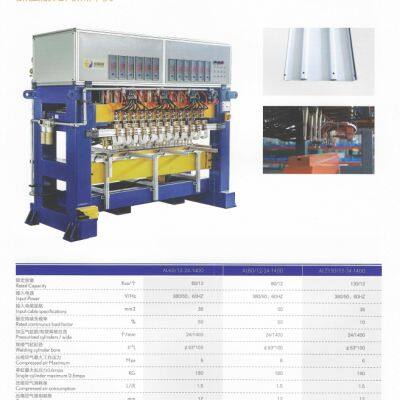

Security Reinforcing Steel Wire Mesh Welding Machine for Bridge Construction
Material |
Cold and hot rolled low carbon steel wire |
Max. mesh width (cross wire length) |
3,000 [mm] |
Min. mesh width (cross wire length) |
1,500 [mm] |
Max. mesh length (line wire length) |
6,000 [mm]( According to the customer request) |
Min. mesh length (line wire length) |
1,500 [mm] |
Line wire spacing |
≥100 [mm], adjustable |
Cross wire spacing |
≥100[mm], programmable adjustable |
Line wire diameter |
Φ6- Φ12 [mm] |
Cross wire diameter |
Φ6 - Φ12 [mm] |
Max. welding capacity |
Φ12+ Φ12 [mm] |
Max. welding speed |
40 - 60 [strokes/min] (cross wire no°/min) |
Air consumption |
≥0.6Mpa, 1.5m 3/min |
Electronic parts specifications: | |
Numbers of welding transformer |
15 |
Numbers of electrode |
30 |
Power supply voltage |
380 [V] - 50 [Hz] (According to customer request) |
Total installed power |
200 [KVA]*15 |
PROFESSIONAL SPOT WELDING EQUIPMENT MANUFACTURER
100
Tens of years for our customers tailored solutions, the cumulative delivery of high-quality products are 100 sets.
56
It has 56 models supermarket trolley, storage cage, racks entireproduction equipment and various types of high-quality
LD
5
Companyinnovation,research and development on average fivesets of efficient and economical year, and every year.
1
From pre-sales consulting to desiqn and development, sampletesting,production,timely delivery,installation and commis.sioning,and after-sales seryice.
20%
Maintained an average annual growth rate of 23% of themarket,accounting forindustry leadership position.
18
High quality welding equipment 18 years of industry experience.
7
Company Profile 7 experienced professional team, every aspectof strict, active and efficient customer seryice in the market.
12,300
An area of 12 300 square meters, has a sound business andproduction management system.
2016
Undertake the mission, we are still on the road .
2015
And well-known domestic listed companies to develop a successful rib automatic intelligent Chi-made production systems officially to intelligent production systems across qualitative step.
2014
The company successfully passed the China Compulsory Certification electrical CCC certification.
2013
The country's first multi-purpose commercial equipment automatic CNC wire bending machine design andproduction success.
2012
With independent intellectual propertygantry stiffener point trigger a success-ful trial.
2011
Companies new plant put into use,theoutput value exceeded ten million RMB.
2010
The company's first fully automatic wiremesh welding machine gantry R& DsuCCess.
2009
We Electric Machinery Co., Ltd. was established
Professional team, beginning from the initial consultation to after-sales, customer demand is always our mobility.
Is not limited to the requirements of customers, we continue to optimize innovation to our products can enhance customer productivity.
Unity of purpose, to make our team and efficient operation exceeding the requirements of each customer.
Quality is the foundation for a company and high-quality product is the "laissez passer" inglobal market. We have strict requirement on every process of manufacturing for the pur.pose of producing better products. We strive hard to survive the fierce market competitionwith best products thus assuring its leadership and success in the industry.
Product Application Industry：
Storage and transportation
Home storage and organization
construction industry
Power and communication cable engineering
Isolation net fence
Supermarket shelves
Pet cage industry
railway construction
email: shiyan-110@163.com
whatsapp: 0086 135 0624 5149
we can manufacture according to your requirement. so welcome your enquiry.
