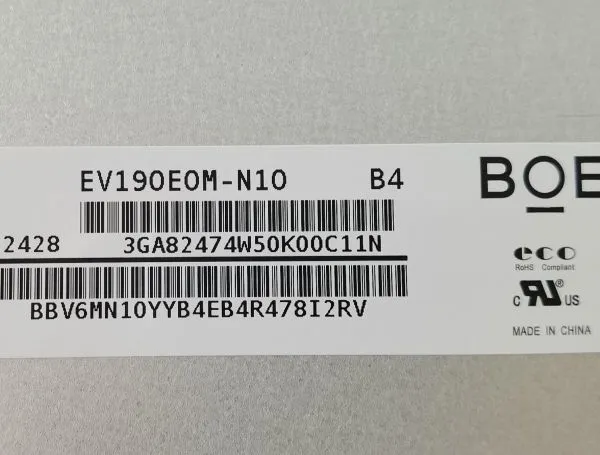

EV190E0M-N10 (BOE BOE) Parameters

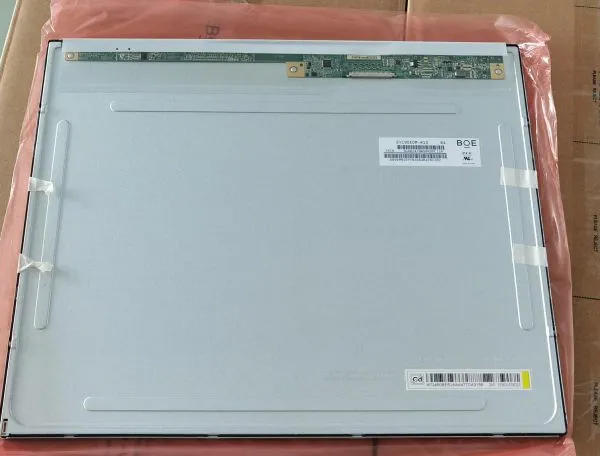

This model is BOE 19 inch industrial grade a-Si TFT-LCD LCD module, Using IPS / ADS hard screen technology, side-mounted WLED backlighting, no touch design, 5: 4 classic proportions is suitable for industrial monitoring, industrial control terminals, instrument display and other scenarios, featuring full view and high stability, and is a mass-produced model for sale.
I. Fundamental parameters
Item Specifications Panel Size 19 inches (diagonal) Resolution 1280 (RGB) x 1024 (SXGA), 86PPI aspect ratio 5: 4, flat rectangular, landscape mode pixels arranged only RGB vertical strip,Point spacing 0.0976 × 0.2928mmDisplay mode IPS / ADS hard screen, often black display, transmitted color capability 16.7M color (6-bit + Hi-FRC), 73% NTSC (CIE 1931) refresh rate 60Hz, no flip scanning, only DE mode drive II. Optical parameters
Brightness: 250 cd / m2 (typical value), brightness uniformity ≤ 1.33 (9 point test, large value)
Contrast ratio: 1000: 1 (typical, transmitted)
Viewing angle: 89 / 89 / 89 / 89 ° (left / right / up / down, CR ≥ 10), full viewing angle without color bias
Response time: 14 ms (typical value, GtoG); Tr / Td 8 ms each (typical)
Color temperature / white coordinates: 6485 K, Wx: 0.313; Wy:0.329
Surface treatment: Haze 25%, 3H hardened scratch-resistant coating, low reflection
III. Mechanical dimensions parameters
Display Area: 374.784 (W) × 299.827 (H) mm
Viewing area: 378.8 (W) x 303.0 (H) mm
Dimensions: 396 (W) x 324 (H) x 10.4 (D) mm (large thickness)
Panel Net Weight: 1.69 Kgs (Typical)
Installation method: 2 M3 side screw holes for each left and right frame (4 in total)
IV. Electrical and interface parameters
Signal interface: LVDS (2ch, 8-bit), 30pin terminal (model DF14H-30P-1.25H), pin distance 1.25 mm
Drive screen power supply: 5.0 V (typical value), operating current 0.60 / 1.1 A (Typ. / Max.)
Power consumption: 3.0 / 5.5 W (Typ. / Max.)
Total power consumption: approximately 19.2 W with backlight (typical)
V. Backlight Parameters
Light source type: Side entry WLED (15S2P), no built-in backlight driver, external
Backlight life: ≥ 30,000 hours (small value)
Backlight supply: 34.1 / 36.3 V (Typ. / Max.), operating current 110 mA (typical)
Backlight Power Consumption: 16.2 / 18 W (Typ. / Max.)
VI. ENVIRONMENT AND SEX
Working temperature: 0 ~ + 50 ° C (industrial grade conventional temperature, suitable for 7 / 24 hours of operation)
Storage temperature: -20 ~ + 60 ° C
Working humidity: 20% ~ 80% RH (no condensation)
Certification criteria: RoHS compliance
Vibration Resistance: Conventional industrial grade vibration resistance, suitable for industrial control equipment scenarios
VII. Features and Applications
Industrial scenario adaptability: The 4: 4 ratio adapts to traditional industrial control monitors, industrial monitors, instrumentation displays, standardized installation holes, and easy access to equipment cabinets;
Display advantages: IPS / ADS full viewing angle technology, side view without color bias, low reflection of fog surface, good visibility of indoor / industrial environment;
Stability: 3H hardening scratch-resistant panel, 30000 hours of life backlight, wide temperature storage, to meet the long-term use of industrial equipment needs;
Expansion: no built-in touch, can be external touch screen, LVDS30pin interface compatible with mainstream industrial control drive board, convenient wiring.
Note: This model is the main version of Jingdong's 19-inch 5: 4 specifications, and the same series ZV190E0M-N10 is the same source model (ZV190E1M-N10)'s brightness improved to 450cd / m2, working at a wide temperature). Parameters are based on the original Jingdong specifications and screen measurements.
