1.8m UV Roll to Roll Printer With Pinch Rollers for Backlit Printing

Product Spotlights

Light-body UV Roll to Roll Printer 1800mm Printing Width With 2 or 4 heads Epson i3200 U1 A good printer for advertising field

US$ 6000 - 6200 MOQ: 1 Piece

Key Specifications

Warranty:

12 months

Usage:

Other, Signage, advertising, decoration

Automatic Grade:

Automatic

Inways Digital (Shanghai) Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

10 days

Warranty 12 months

Usage Other, Signage, advertising, decoration

Automatic Grade Automatic

Color & Page Multi-Colour Printing Press

After-sales Service lifetime after-sales servicce

System Supported Windowsxp64

Printing Interface Other, LAN Cable

Printing Speed Other, 30㎡/h

Transport Package in wood case

Specification 1800mm

Trademark Inways

Technical Parameters

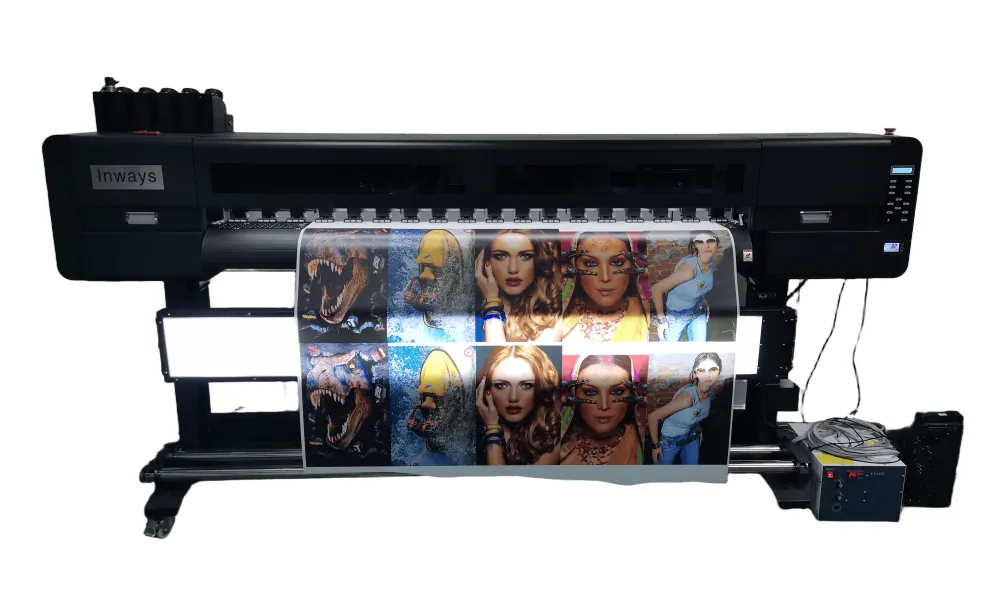

Model No.	YJ1800-R
Printer Dimension	2950 x 675 x 1400mm
Weight	190kg
Package Dimension	3060 x 750 x 780mm
Gross Weight	250kg
Printing Width	1.8m
Print Head	Epson i3200 U1, 2/4pcs
Media Thickness	Flexible Media: 0~10mm
Printing Resolution	1440DPI
Printing Speed(2pcs)	3Pass(draft mode) 41m²/h 4Pass(Prodution mode) 32m²/h 6Pass(Quality mode) 22m²/h
Ink	Imported UV Ink
Color Configuration	C M Y K W V
Color Management	International ICC standard with adjusting function for profiles and density
Image Format	TIFF, JPEG, CMX, AI, PSD, PS, PDF, EPS
Curing	Water cooling UV led lamp
Printing Materials	banner, vinyl, reflective film, wall cloth, canvas, leather, carpet, PET, etc
Print Port	Gigabit Network
Operation System	win10/win11
RIP Software	RIIN/Maintop/PhotoPrint
Cleaning of Printhead	Automatic
Recommended Humidity	40%~70% Relative humidity
Recommended Temperature	15℃~30℃
Power Supply	AC 220v 50/60Hz
Power Consumption	280W
