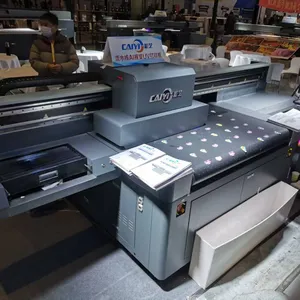

Help CenterAssembly Line Visual Positioning UV Printer With Conveyor Belt CY-1200 CCD
Product Spotlights
High Resolution
High Printing Speed
Related Products
-
Caiyi Visual Positioning CCD UV Flatbed Printer (CY-UV2513) With AI Camera and Ricoh Gen6 HeadUS$ 29000 - 30000MOQ: 1 Piece -
Caiyi CCD UV Flatbed Printer With AI Visual CameraUS$ 29000 - 30000MOQ: 1 Piece
-
Caiyi Assembly Line CCD AI Visual Positioning UV Printer With Conveyor Belt CY-1200 CCDUS$ 30000 - 31000MOQ: 1 Piece
-
Caiyi CCD AI Visual Camera Positioning UV Printer With Conveyor Belt CY-1200 CCDUS$ 30000 - 31000MOQ: 1 Piece
-
Inways 2.1m Digital Direct Flag Printer YJ2104-S With Epson I3200 A1US$ 14000 - 15000MOQ: 1 Piece
AI Intelligent System
High Resolution
High Printing Speed
6 Significant Features
Efficient Continuous Printing
High Precision Positioning and High Resolution Printing
Widely Applicable Materials
High Printing Speed
High Degree of Automation
Reduces Costs and Increases Efficiency
3 Major Advantages
Intelligent Positioning. Bid Farewell to Jigs
Batch printing of products, automatic identification and positioning, improving production efficiency and saving user's jigs expenditure costs.
No Positioning Required. Higher Efficiency
Products can be placed at will to reduce labour costs, greatly improving production efficiency and printing capacity.
Solves the Problem of Positioning Special-shaped Products
The camera can accurately identify the outlines of special-shaped products and automatically match them, eliminating the problems of manual positioning and poor accuracy.
Technical Parameter
| Brand | Caiyi |
| Product Name | Assembly Line AI Visual Positioning UV Printer |
| Product Model | CY-1200 CCD |
| Printing Size | 1200mm x unlimited |
| Printer Dimension | L x W x H, 3400 x 2060 x 1400mm |
| Print Head | Ricoh Gen6 / Gen5 / G5i / Epson i3200 |
| Print Head No.s | 2~16 pcs (customizable) |
| Max Media Thickness | 100mm(customizable) |
| Camera Height | 100mm(customizable) |
| Color Configuration | C M Y K Lc Lm W V |
| Rip Software | RIIN |
| Operation System | Windows 10/11 (X64) |
| Data Interface | USB3.0, network interdace x 3 |
| Curing Method | LED water-cooling UV Lamp |
| Printing Mode | Scanning and Printing synchronously |
| Power Requirement | AC220 ± 10%, 50~60Hz |
| Working Environment | Room Temperature: 15~35°C, Humidity: 40~60% |
| Printing Resolution | 720 x 900 dpi, 720 x 1200 dpi, 720 x 2400 dpi |
| Camera Resolution | 1200 dpi |
| After-sales Service | 24h online serivce/on-site service of engineers |
Note: The information above is for reference, and our company reserves the right of final interpretation. Any changes will be made without further notice. The final information is subject to the Sales Contract
Application Cases

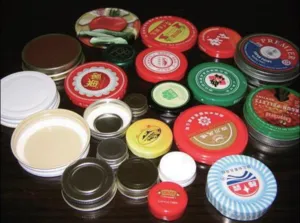

Bottle Cap Lighter Cartoon Toys
Hairpin Badge Signage
Unrestricted Materials
Metal Glass Acrylic
Plastic Wood Film
Ingenious Craftsmanship
Magnetic Levitation Linear Motor
Wear resistant, high precision, smooth and quiet operation

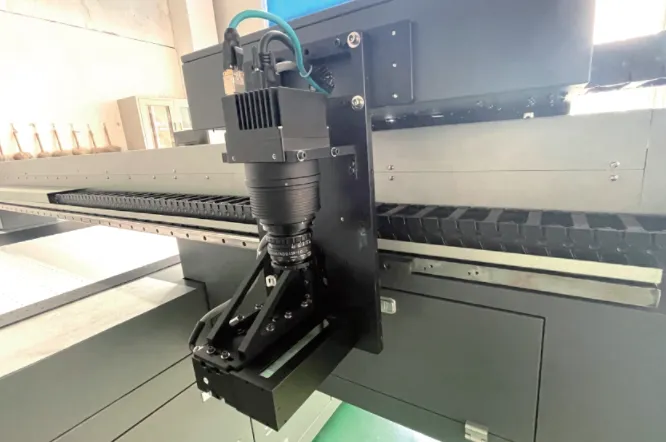

AI Visual Positioning System
1200DPI high-resolution camera, intelligent recognition and positioning

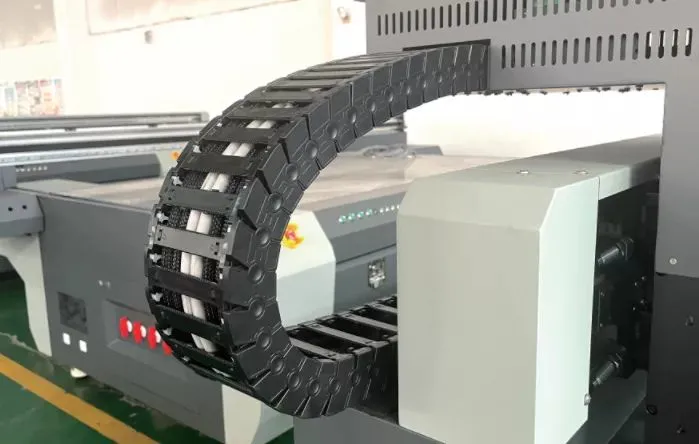

High Quality Drag Chain
High quality, high flexibility, wear resistant, corrosion resistant.
Why Choose us
|
Pre-Sales Sampling Sample Confirmation Factory on-site inspection |
=> |
Sale Drawing Training Operation Training Online Remote Training |
=> |
After-sales Installation 24h online service Fast Response Service |
