Caiyi 3.2m UV Roll to Roll Printer for ceiling film, stretching film

1) General Information

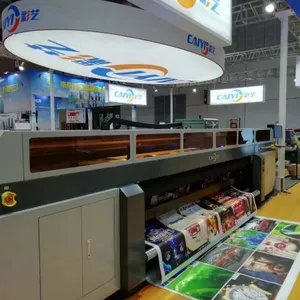

CAIYI UV Roll-to-Roll Printer CY-R3200

The CY-R3200 is designed as superior class roll-to-roll UV printing machine. With its high-end industrial working system it handles the best quality printings fastly on 320cm wide flexible materials which are ideal to many kind of outdoor advertisements. It can print narrower medias accurately as well. Its technical features, capabilities and well structured case allow it full-time work when high performance is a must. Using the UV ink it can produce excellent images on various materials like banners, vinyl, mesh, and so on. The ink is environment friendly.

☑ Max Printing Width 3.2m

☑ UV curable ink, 4 colors/ 6 colors + White + Varnish/ Spot Color

☑ Industrial KM-1024i printhead for high resolution and high speed

☑ White Ink Provided for printing on transparent or colored materials

2) Features

VARIOUS WAYS OF PRINTING WHITE

Caiyi only makes good machines!

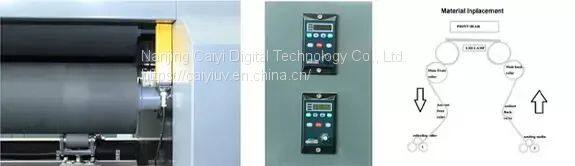

Industrial take up & feeding system with 2 front and 2 rear durable and long lasting rubber rollers to open and wrap material before and after printing. Equipped with potentiometer to adjust the tension level of the releasing and winding rollers during material changes. The rollers are able to go forward and backward thanks to the speed and rotation direction controller. Air compressor connection is required to operate the system.

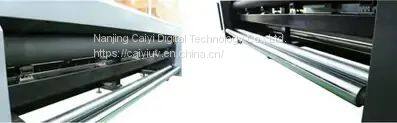

Dual roller for easy loading and transmitting the media smoothly.Max printing width is 3.2m

The machine adopts branded water cooling LED uv lamp that complies with the UL standards. The light is environment-friendly, and the lamp has a long life time of 35000 hours. Thanks to the low hear of the light, heat-labile medias are also applicable.

The machine is equipped with PMI double guide rail. By the steel ball’s infinite rolling cycle between the slider and the guide rail, the friction coefficient can be reduced to 1/50 of the ordinary sliding friction guide rail. The rail gives high positioning accuracy and is less-wear, so it can maintain high running precision for a long time and is suitable for High speed movement.

The X-axis gantry is made of 200px*400px aviation aluminum profile, which has high tensile strength and large bearing capacity. It is stable enough and will not deform for long-term use.

It is equipped with a 100px wide Timing Belt which has a steel cord layer inside for higher tensile strength and durability. The tooth surface of the belt is covered with a layer of mute filter cloth, which has low noise at high speed.

Automatic Height Detector

The optimal distance between the head and the media can be adjusted just by one click! This easy and quick way avoids the ink spray and helps the machine delivers good printing quality.

The machine is equipped with good towline. It is wide enough to enable wires long-term work without rubbing against each other, and reduce the noise during the movement.

Anti-Static Device and Crash Sensor

The Anti-Static Device removes the static from the media and perfectly avoids ink spray. The sensitive Crash Sensor on both sides will prevent the print head from being damaged.

The ink Alarm system will give alert via signal light and sound when the ink volume is low. Alert will also be shown in the software interface. The white ink tank has automatic stirring system so that the white print head will not be clogged.

The ink Heating System will heat the ink to an appropriate temperature before it goes into the print head, which makes the ink run more smoothly and avoids the nozzle clogging in cold working environment. Thus, the printing is vivid and bright.

Disk filter

Before going into the print head, the ink will be further filtered by the Disk filter so that the tiny impurities can be filtered out. The printhead will work in a good condition and its life time will be extended.

There is an independent valve on each Sub Ink Tank to control the ink flow. When the machine is off, the valve can be closed in order to avoid ink waste.

Independent Ink Purging for White and Color enables purging color and white separately, which ensures smooth ink flow and more stable ink supply when the machine is printing at a high speed.

Negative Pressure System

With the NC pressure display instrument, the machine can do high quality printing at as a high fire frequency as possible to increase the printing speed; With an additional air sub tank to make the change of negative pressure more stable and ensure the stable ink supply at a high-speed nonstop printing.

3) Technical Parameters

*the above technical parameters are subject to change without prior notice
