Help CenterCaiyi CCD UV Flatbed Printer With AI Visual Camera
Product Spotlights
Fully Automatic, replaces manual work
Related Products
-
Caiyi Assembly Line CCD AI Visual Positioning UV Printer With Conveyor Belt CY-1200 CCDUS$ 30000 - 31000MOQ: 1 Piece -
Caiyi CCD AI Visual Camera Positioning UV Printer With Conveyor Belt CY-1200 CCDUS$ 30000 - 31000MOQ: 1 Piece
-
Caiyi High Resolution CCD AI Visual Camera Positioning UV Printer With Conveyor Belt CY-1200 CCDUS$ 30000 - 31000MOQ: 1 Piece
-
Caiyi CCD AI Belt-Convey UV Printer With Visual Camera ScannerUS$ 30000 - 31000MOQ: 1 Piece
-
Assembly Line Visual Positioning CCD UV Printer With Conveyor Belt CY-1200 CCDUS$ 30000 - 31000MOQ: 1 Piece
Have you encountered the following problems during production and processing?
Time consuming to place？ Easy to make mistakes? Waste costs?
●Easy to Operate
Materials can be placed as desired
Special-shaped materials, no alignment required

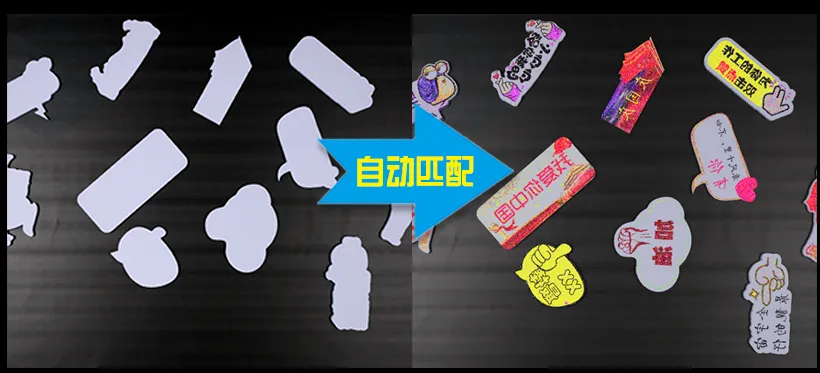

●Intelligent matching
Computer AI intelligent matching
Triangles, polygons, special shapes...automatic matching
●Replaces Manual Work
No Manual Alignment Required
Saves Labour Cost
No need to deliberately align
Materials can be placed at will, greatly saving placement time
Reduces labor and time costs
●Improves Printing Quality
Machine Automatic Positioning
Reduces the Chance of Error
Machine AI automatic positioning
Significantly reduces errors that occur during manual alignment
●Reduces Investment
One-time Investment
High Return, High Efficiency
The equipment only requires a one-time investment, its long-term use cost is much lower than the labor cost, and the scrap rate will be greatly reduced.
1) General Information
This is the most comprehensive and innovative UV Flatbed Printer. With its new designed and well structured case, THK guide rail and the printing size of 2500 x 1250mm, it is ideal for signage and advertising fields.
☑ 5PL/7PL variable ink droplet, high resolution printing
☑ All steel print head with a longer life time and it is corrosion resistant
☑ Imported silent linear guide railway, stable operation
☑ Imported screw drive, high precision
☑ Intelligent ink alarm system
☑ Automatic height detecting and positioning system
☑ Independent control of Color and White negative pressure system
2) Features
VARIOUS WAYS OF PRINTING WHITE
Hard Oxidized Sinkhole Vacuum Table
The Vacuum Table is divided into several vacuum zones. The stronger vacuum avoids the friction between the print head and the media. The table surface hardness reaches HV500-700. It is more scratch-resistant and wear-resistant. The load per square meter is up to 100KG.
Through the destructive experiments and long-time test, the Y axis adopts Panasonic Servo System and the PMI Screw Drive Structure System to ensure the high mechanical movement accuracy, durability and the stable performance.
The machine adopts branded water cooling LED uv lamp that complies with the UL standards. The light is environment-friendly, and the lamp has a long life time of 35000 hours. Thanks to the low hear of the light, heat-labile medias are also applicable.
The machine is equipped with PMI double guide rail. By the steel ball’s infinite rolling cycle between the slider and the guide rail, the friction coefficient can be reduced to 1/50 of the ordinary sliding friction guide rail. The rail gives high positioning accuracy and is less-wear, so it can maintain high running precision for a long time and is suitable for High speed movement.
The X-axis gantry is made of 200px*400px aviation aluminum profile, which has high tensile strength and large bearing capacity. It is stable enough and will not deform for long-term use.
It is equipped with a 100px wide Timing Belt which has a steel cord layer inside for higher tensile strength and durability. The tooth surface of the belt is covered with a layer of mute filter cloth, which has low noise at high speed.
Automatic Height Detector
The optimal distance between the head and the media can be adjusted just by one click! This easy and quick way avoids the ink spray and helps the machine delivers good printing quality.
The machine is equipped with good towline. It is wide enough to enable wires long-term work without rubbing against each other, and reduce the noise during the movement.
Anti-Static Device and Crash Sensor
The Anti-Static Device removes the static from the media and perfectly avoids ink spray. The sensitive Crash Sensor on both sides will prevent the print head from being damaged.
The ink Alarm system will give alert via signal light and sound when the ink volume is low. Alert will also be shown in the software interface. The white ink tank has automatic stirring system so that the white print head will not be clogged.
The ink Heating System will heat the ink to an appropriate temperature before it goes into the print head, which makes the ink run more smoothly and avoids the nozzle clogging in cold working environment. Thus, the printing is vivid and bright.
Disk filter
Before going into the print head, the ink will be further filtered by the Disk filter so that the tiny impurities can be filtered out. The printhead will work in a good condition and its life time will be extended.
There is an independent valve on each Sub Ink Tank to control the ink flow. When the machine is off, the valve can be closed in order to avoid ink waste.
Independent Ink Purging for White and Color enables purging color and white separately, which ensures smooth ink flow and more stable ink supply when the machine is printing at a high speed.
Negative Pressure System
With the NC pressure display instrument, the machine can do high quality printing at as a high fire frequency as possible to increase the printing speed; With an additional air sub tank to make the change of negative pressure more stable and ensure the stable ink supply at a high-speed nonstop printing.
Using 8 cm x 16 cm steel tube and overall welding of the triangle law structure, the base frame is stable and non-deforming. The platform base adopts high-precision gantry milling. It is highly accurate and the flatness error is extremly small.
3) Technical Parameters
Model |
CY-UV2013 |
CY-UV2513 |
CY-UV2518 |
CY-UV2030 |
CY-UV2530 |
CY-UV3020 |
CY-UV2540 |
CY-UV3040 |
CY-UV3050 |
Machine Dimesnsion |
L: 2.15m |
L: 2.15m |
L: 2.75m |
L: 3.90m |
L: 3.90m |
L: 3.00m |
L: 4.90m |
L: 4.90m |
L: 5.90m |
W: 3.93m |
W: 4.43m |
W: 4.43m |
W: 3.93m |
W: 4.43m |
W: 4.93m |
W: 4.43m |
W: 4.93m |
W: 4.93m |
|
H: 1.40m |
H: 1.40m |
H: 1.40m |
H: 1.40m |
H: 1.40m |
H: 1.40m |
H: 1.40m |
H: 1.40m |
H: 1.40m |
|
Machine Weight |
900kg |
1000kg |
1100kg |
1200kg |
1300kg |
1200kg |
1400kg |
1500kg |
1600kg |
Printing Size |
2.0 x 1.25m |
2.5 x 1.25m |
2.5 x 1.8m |
2.0 x 3.0m |
2.5 x 3.0m |
3.0 x 2.0m |
2.5 x 4.0m |
3.0 x 4.0m |
3.0 x 5.0m |
Printing Speed |
Ricoh Gen5 head |
Ricoh Gen6 head |
KM-1024i head |
||||||
Draft Mode: 18~180m2/h |
Draft Mode: 26~230m2/h |
Draft Mode: 30~60m2/h |
|||||||
Production Mode: 12~120m2/h |
Production Mode: 18~150m2/h |
Production Mode: 18~40m2/h |
|||||||
High Quality Mode: 9~90m2/h |
High Quality Mode: 13~120m2/h |
High Quality Mode: 15~30m2/h |
|||||||
Media's Max Thickness |
0~100mm (Customized Thickness is Acceptable) |
||||||||
Ink drop Size |
Ricoh Gen5: 7PL; Ricoh Gen6: 5PL; KM1024i: 6PL / 13PL |
||||||||
Color Configuration |
K C M Y Lc Lm W Varnish |
||||||||
Printing Resolution |
600 x 2400 dpi |
||||||||
Ink |
Imported UV Ink |
||||||||
Curing Method |
Water Cooling LED UV Lamp |
||||||||
Rip Software |
Photo Print |
||||||||
Operation System |
Win 7 (x64), Win 10 (x64) |
||||||||
Color Control |
International ICC standard with adjusting function for profiles and density |
||||||||
Image Format |
TIFF, JPEG, CMX, AI, PSD, PS, PDF, EPS |
||||||||
Power Supply |
Single Phase AC 220V, 50/60Hz, 14A, 3KW |
||||||||
Environment Requirement |
Recommended Humidity: 30%~60% Relative humidity; Recommended Temperature: 15℃~30℃ |
||||||||
Data Interface |
USB 3.0 / LAN cable |
||||||||
Printing Medias |
ceramic tile, glass, acrylic, PVC foam board, KT board, ABS board, wood, steel, aluminium, titanium plate, corrugated board, leather, ACP |
||||||||
4) Application
