Silicon Steel Product Details
1. Product Introduction
Silicon steel, also known as electrical steel, silicon steel sheet, and electromagnetic steel, is an iron-silicon alloy soft magnetic material with silicon content ranging from 0.5% to 4.5%. Through strict control of alloy composition, rolling process and heat treatment process, it features extremely low core loss, high magnetic permeability, high magnetic induction strength, excellent blanking performance and stable magnetic properties. It is an indispensable core functional material in the fields of power transmission, motor manufacturing, new energy equipment, home appliances and electronics. The product is widely used in manufacturing iron cores for various transformers, electric motors, generators and reactors, which directly determines the energy efficiency level, operation stability and service life of equipment.
2. Product Classification
2.1 By Grain Orientation Structure
Grain-Oriented Silicon Steel (CRGO)Grains are highly ordered along the rolling direction with obvious anisotropy, low core loss and high magnetic induction strength. It is mainly used in distribution transformers, power transformers, instrument transformers, reactors, large power supply equipment and other products with high energy efficiency requirements.
Non-Grain Oriented Silicon Steel (CRNGO)Grains are uniformly distributed with isotropic magnetic properties and excellent shearing performance. It is mainly used in various motors, generators, new energy vehicle drive motors, wind power motors, household appliance motors, small power equipment and other rotating machinery.
2.2 By Production Process
Cold-Rolled Silicon SteelIt has high thickness accuracy, flat shape, smooth surface, uniform insulating coating and stable electromagnetic properties, making it the mainstream high-end product in the current market.
Hot-Rolled Silicon SteelRelatively low cost and moderate processing performance, mostly used in low-end applications such as ordinary low-voltage electrical appliances and small simple iron cores.
2.3 By Thickness Specification
Conventional thicknesses: 0.10mm, 0.15mm, 0.20mm, 0.23mm, 0.27mm, 0.30mm, 0.35mm, 0.50mm. Special ultra-thin or thickened specifications can be customized according to customer requirements.
3. Common Grades
Non-Grain Oriented Silicon Steel: 50W470, 50W600, 50W800, 35W300, 35W440, 50WW1300, etc.
Grain-Oriented Silicon Steel: 23Q85, 23Q110, 27Q100, 27Q120, 30Q120, etc.
High Magnetic Permeability HiB Grain-Oriented Silicon Steel: Suitable for large ultra-high voltage transformers and high-end power equipment, with lower core loss and higher magnetic induction.
4. Product Forms
Coils: Silicon steel coils, electrical steel coils
Plates: Cut-to-length silicon steel sheets, custom-sized cut sheets

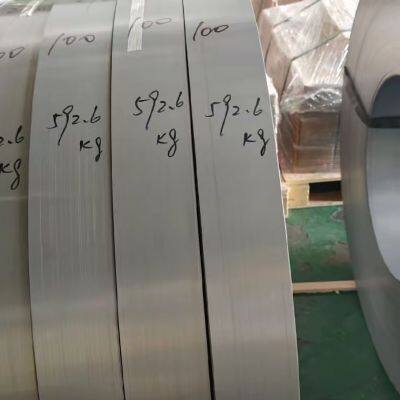

Strips: Slitted narrow strips, precision narrow strips
Finished Cores: EI laminations, toroidal cores, C-type cores, step-lapped cores, motor stator and rotor cores, etc.
5. Key Performance Features
Low core loss, effectively reducing equipment heating and improving energy efficiency level
High saturation magnetic induction strength, reducing core volume and enhancing power density
Excellent magnetic permeability, low excitation current, more energy-saving operation
Strong adhesion and good insulation of surface insulating coating, effectively reducing eddy current loss
Flat shape, uniform thickness, excellent punching and shearing performance, not easy to chip
Good magnetic aging stability, no performance attenuation during long-term use, high reliability
Adaptable to complex working conditions such as high and low temperatures and high loads
6. Main Application Fields
Power Equipment: Distribution transformers, oil-immersed transformers, dry-type transformers, instrument transformers, reactors, switching power supply transformers
New Energy Sector: New energy vehicle drive motors, on-board transformers, wind turbines, photovoltaic inverters, energy storage converters
Industrial Equipment: Industrial motors, water pump motors, fan motors, compressors, servo motors, generator sets
Household Appliances: Air conditioners, refrigerators, washing machines, fans, small household appliances, small transformers, electromagnetic devices
Electronics & Electrical Appliances: Instruments and meters, power supply equipment, communication power supplies, industrial control equipment
7. Production and Processing Services
Provide deep processing services such as slitting, cut-to-length, shearing, blanking, stamping and core stacking according to customer drawings
Support customization of width, length, inner diameter and packaging methods
Provide samples and small-batch trial orders to meet customers' preliminary testing needs
Professional quality inspection process, with material certificate, performance report and factory inspection sheet for each batch
8. Delivery Time and Logistics
Delivery Date: Shipment will be arranged within 5–7 days after order confirmation and receipt of advance payment
Conventional in-stock products can be scheduled for production quickly, and spot products can be delivered on the same day or the next day
Standard export moisture-proof packaging is adopted, lined with waterproof film, wrapped with anti-rust paper and reinforced with steel strips, suitable for long-distance sea, land and air transportation
Logistics can be arranged according to customers' designated ports and freight forwarders, supporting LCL and FCL shipments
