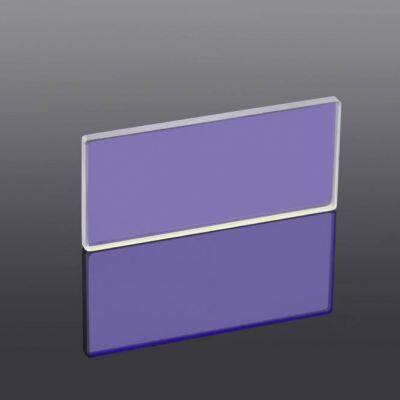

LP - 610nm Long-pass Filter. Long-pass filters, also known as long-wavelength pass filters, as an important optical component, are widely used in fields such as digital imaging, biomedical beauty, and fingerprint recognition. Its characteristic is to allow light within a certain wavelength range to pass through while blocking light within another wavelength range. It has features such as high transmittance, wide cut-off band, and good film layer firmness. Filter products are produced according to the customer's index requirements.
Parameters of LP610nm Long-pass Filter:
Center Wavelength: 610±5nm
Transmission Band: 620nm - 1100nm
Cut-off Band: 200nm - 600nm
Peak Transmittance: >90% (According to customer requirements)
Product Size: (According to customer requirements)
Cut-off Depth: >OD3 - OD6 UV - NIR
Product Material: Optical grade glass (K9, BK7, B270, D263T, JGS1, colored glass, float glass, etc.)
Surface Finish: National standard grade three, US military standard 60 - 40
Long-pass filters are a commonly used filter solution in beauty instruments. Its principle is that a high-intensity pulsed xenon lamp emits a wide-spectrum light. By using a specific filter to filter out ultraviolet light and select the standard spectral band for the treatment range, it acts on human skin tissue to achieve the effect of beauty treatment. The difficulties in the film system design and preparation process of related filters lie in the requirements of high pass-band transmittance, wide cut-off band, and high steepness for such filters.
Actual Shooting Display:
