Product Overview:

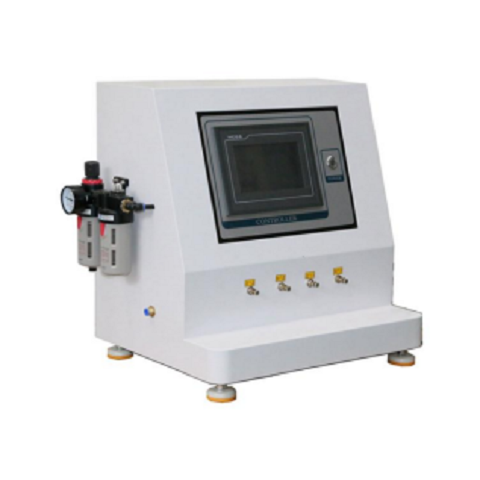

      The pen cap air circulation tester (abbreviated as pen cap tester) is a safety performance testing device for pen products, which can test the safety performance of the air flow of pen caps. It is easy to operate and highly versatile, suitable for pen caps of different diameters. The testing process is safe, stable and reliable.

Compliance Standards:

      "GB21027-2020 General Safety Requirements for School Supplies"
Technical Parameters:
1. Flow control valve: ±0.1L/min/Resolution ≤ 0.001L/min
2. Flow meter: Can measure air flow between 5L/min and 10L/min, accuracy ≤ ±0.2 L/min
3. Pressure gauge: Can measure pressure ≥ 4Kpa
4. Pressure gauge accuracy: ≤ ±0.1kpa
5. Elastic tube: Equipped with 6 - 14mm hoses, can test pen caps with a size of 7 - 16mm
6. Control method: LCC touch screen control
7. Pen cap testing component: Adopts self-locking quick connector 8. Air source device requirements: In the pressure range of 4kPa - 50kPa, the stable flow rate ≥ 25L/min

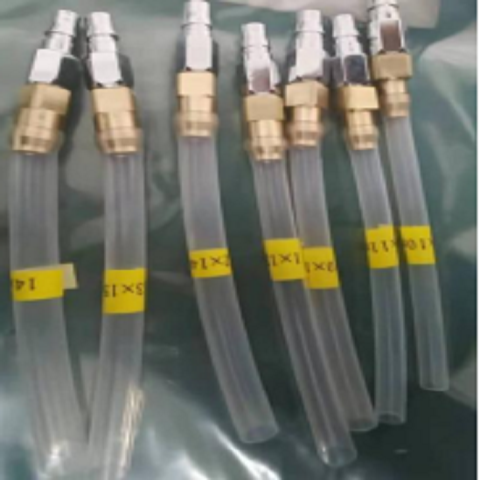

8. A set of silicone hoses (inner diameter 6 - 13.5mm, with 15 specifications at intervals of 0.5mm)



Product Tags: Pen cap air flow tester , Pen cap air permeability detector , Pen cap ventilation volume tester , Pen cap air flow measuring instrument , GB21027-2020
