1. Product Description

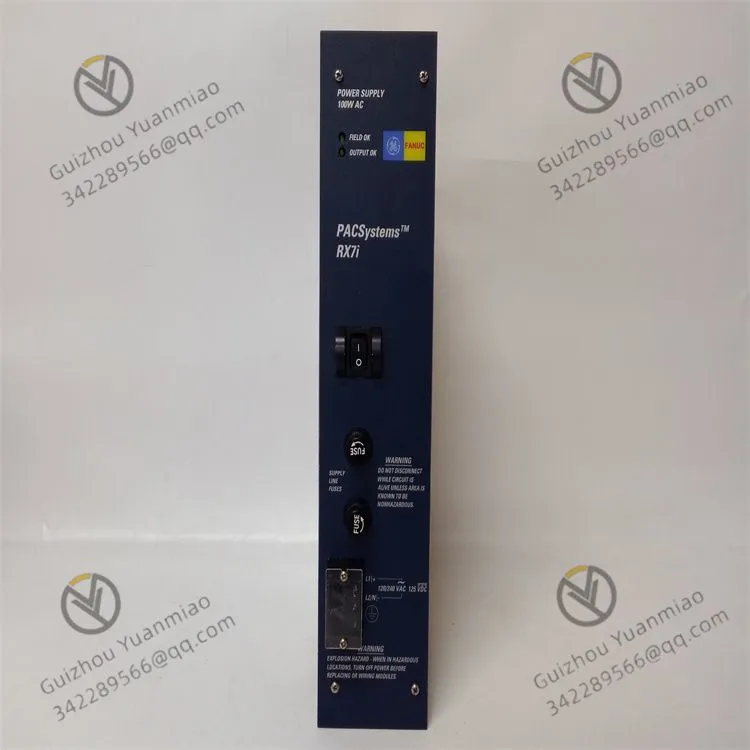

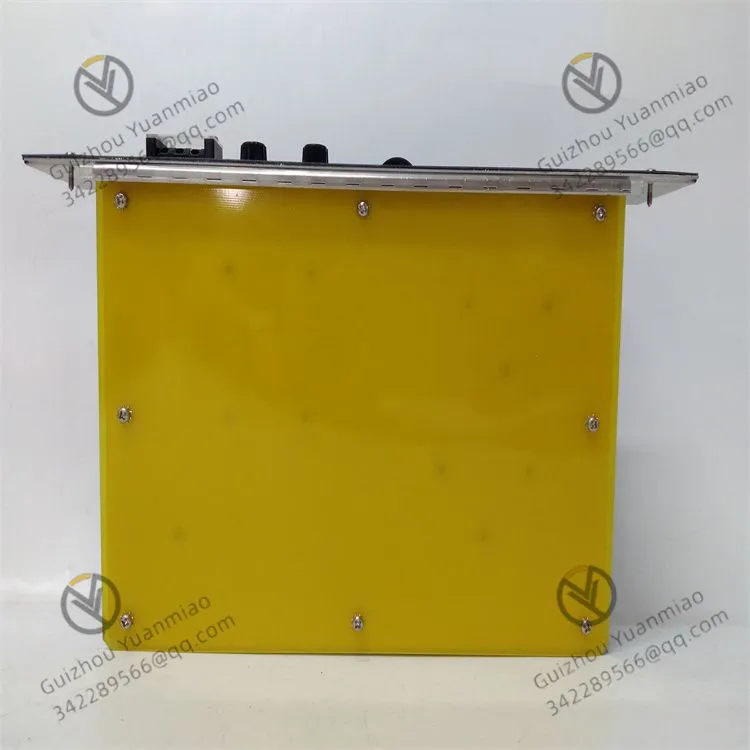

GE IC698PSA100E is a redundant power supply module designed exclusively for the PACSystems RX7i control system. As the “power heart” of the system, it is engineered for critical industrial automation applications. Its core function is to provide stable, clean DC power for RX7i CPUs, I/O modules, and other peripheral components. It features N+1 redundancy, hot‑swap maintenance, and full‑status intelligent diagnostics, making it the key power supply unit ensuring continuous, safe, and reliable operation of industrial control systems.
This module adopts an industrial‑grade high‑reliability design with high‑quality materials, offering excellent durability and anti‑interference performance. It can operate stably for long periods in harsh industrial environments ranging from -25℃ to +60℃, suitable for complex applications such as manufacturing production lines, energy management systems, and transportation systems.It supports an N+1 redundant architecture with parallel operation. In the event of any module failure, it achieves seamless failover in
2. Technical Specifications
| Parameter Category | Details |
|---|---|
| Model / Core Identification | Model: IC698PSA100E; Manufacturer: GE Fanuc; Type: Redundant power supply module for PACSystems RX7i control system; Rated power: 100W; Designed for stable redundant power supply; SIL3 capable |
| Manufacturer / Compliance | GE Fanuc (compliant with relevant standards for industrial automation equipment; high‑reliability design; brand‑new original; 12‑month warranty; suitable for harsh industrial control environments) |
| Core Functions | 1) Stable power supply: Provides highly stable 24VDC output to ensure normal operation of RX7i CPU, I/O modules, and peripherals;2) Redundancy control: Supports N+1 redundant configuration, parallel operation with load sharing, and seamless failover of faulty modules;3) Intelligent diagnostics: Comprehensive protection including overvoltage, undervoltage, overcurrent, overtemperature, and fan failure;4) Status reporting: Communicates with CPU via backplane; real‑time power status display in Proficy Machine Edition;5) Hot‑swap maintenance: Supports hot‑swap replacement without shutdown to reduce downtime losses;6) Predictive maintenance: Reports output voltage, temperature, and fan speed in real time; provides early alarms for abnormalities;7) Clean output: Ripple |
| Electrical Parameters | Input voltage: 120–240VAC / 125VDC, frequency 47–63Hz;Output voltage: 24VDC ±2%; Max continuous output current: 10A;Output ripple: |
| Communication / Interface | Main communication: Communicates with RX7i CPU via system backplane for status reporting and data exchange;Local interface: Standard spring terminals for input power and fault alarm wiring;Redundant interface: Supports parallel redundant wiring for load sharing and seamless switching. |
| Physical Characteristics | Mounting: Fits standard PACSystems RX7i cabinets; rack‑mountable with flexible installation;Dimensions: Standard RX7i module form factor; compact design to save cabinet space;Ingress protection: IP20 (module only, for installation in electrical cabinets);Housing: Industrial‑grade flame‑retardant, vibration‑ and shock‑resistant;Net weight: 1000 g; original sealed packaging for safe transport and storage. |
| Environmental Adaptability | Operating temperature: -25℃ ~ +60℃ (covers extreme temperatures in industrial facilities, suitable for outdoor and indoor harsh environments);Storage temperature: -40℃ ~ +85℃;Relative humidity: 5% ~ 95% (non‑condensing);Vibration resistance: Meets industrial standards, suitable for vibrating environments such as factories and power stations;EMC: Strong immunity to electromagnetic interference from inverters and high‑power equipment to ensure stable power output. |
| Reliability | MTBF ≥ 500,000 hours;Supports hot‑swap; maintenance downtime ≤ 10 minutes;Comprehensive self‑test and diagnostics for real‑time monitoring of status, load, and temperature;12‑month warranty; brand‑new original for emergency repair and routine maintenance;N+1 redundancy greatly improves power supply reliability and avoids system shutdown due to single point of failure. |
3. Functions & Features
(1) Redundant Power Supply Design for Zero System Interruption
N+1 redundant architecture: Supports parallel operation with automatic load sharing. Upon failure of any power module, the remaining units take over the full load with seamless switchover in
Ultra‑clean power output: Output ripple
Wide input voltage range: Accepts 120–240VAC and 125VDC at 47–63Hz, adapting to various site power conditions without extra converters, improving versatility and reducing integration cost.
(2) Strong Environmental Adaptation & Anti‑Interference for Harsh Industrial Sites
Wide temperature & vibration resistance: Operating temperature -25℃ ~ +60℃, withstands high/low temperatures and vibration in workshops, power stations, and outdoor stations with long‑term stable performance.
High anti‑interference capability: Industrial‑grade design effectively suppresses EMI from inverters and high‑power motors, preventing unstable output or false triggering. Excellent insulation avoids short circuits and leakage risks, ideal for power, metallurgy, and petrochemical environments.
Industrial‑grade durability: Built with high‑quality components and flame‑retardant, shock‑resistant housing to protect circuits from dust and oil, reducing failure rates. Original sealed packaging ensures reliability for transport and emergency repair.
(3) Intelligent Diagnostics & Easy Maintenance to Lower Lifecycle Cost
Full‑status intelligent diagnostics: Built‑in monitoring for overvoltage, undervoltage, overcurrent, overtemperature, and fan faults. Status is reported to the CPU via the backplane and visible in Proficy Machine Edition, allowing engineers to view health, load, and trends for early fault detection.
Hot‑swap maintenance: Supports hot‑swap replacement without system shutdown; on‑site maintenance time ≤ 10 minutes, greatly reducing downtime losses. Easy wiring and installation speed up deployment.
Predictive maintenance: Real‑time reporting of voltage, temperature, and fan speed provides early warnings of degraded performance or increased ripple, enabling proactive maintenance and minimizing risks.
(4) Deep Compatibility & Seamless Integration
RX7i‑optimized design: Exclusively engineered for GE PACSystems RX7i, fully compatible with RX7i CPUs, I/O modules, and peripherals. Direct integration without adaptation reduces cost and commissioning time.
Deep software integration: Fully compatible with GE Proficy Machine Edition for remote monitoring, parameter viewing, and fault alarms, supporting visualized operation and meeting modern high‑availability “transparent maintenance” requirements.
Flexible installation & expansion: Easy to integrate into existing systems; supports parallel redundant expansion. The number of power modules can be adjusted based on load, adapting to systems of various scales and enhancing reliability.
4. Applications
RX7i control system power supply: As the dedicated power module for GE PACSystems RX7i, it provides stable redundant power for CPUs, I/O, and communication modules in various industrial automation systems.
Manufacturing production lines: Suitable for automotive, electronics, machinery processing, and other production line control systems, ensuring stable power for PLCs, sensors, and actuators to maintain continuous, efficient operation.
Energy management systems: Used in power plants, substations, and renewable energy stations for reliable redundant power supply in harsh environments, ensuring safe energy monitoring and control.
Transportation systems: Applied in rail transit, ports, and terminals, with wide temperature and vibration resistance for stable power in complex transportation environments.
Critical process control: Ideal for petrochemical, metallurgical, and water treatment applications requiring ultra‑high continuity. N+1 redundancy and millisecond‑level switchover prevent production accidents caused by power failure.
5. FAQs & Troubleshooting
1. Module fails to supply power; system reports power fault
Possible causes: Abnormal input (out‑of‑range voltage, reversed polarity), internal circuit failure, fan failure causing overtemperature protection, incorrect redundancy configuration, loose or oxidized input wiring; long‑term high humidity may corrode the PCB and cause power failure.Solutions: ① Verify 120–240VAC/125VDC input, correct polarity, tighten terminals, and remove oxidation; ② Check fan operation; clean or replace the fan to clear overtemperature protection; ③ Verify redundant configuration and load sharing; ④ If input and fan are normal, contact GE authorized service for internal inspection or replacement; ⑤ Dry the module, improve cabinet ventilation and moisture protection, and repair corroded circuits if needed.
2. Abnormal redundant switchover; faulty module not automatically bypassed
Possible causes: Incorrect redundancy configuration, communication failure between modules, abnormal load sharing, improper switchover threshold, incompatible firmware versions.Solutions: ① Check configuration; ensure identical models and compatible firmware; reconfigure and save; ② Verify backplane communication and connections; ③ Check load sharing; adjust distribution or inspect output circuits; ④ Have technicians adjust switchover thresholds; ⑤ Upgrade firmware to a compatible version if mismatched.
3. Large output voltage fluctuation; analog I/O acquisition distorted
Possible causes: Unstable input, excessive output ripple, overload, strong EMI, faulty internal filter circuit; dust buildup may cause poor cooling and unstable output.Solutions: ① Stabilize input with surge protectors and regulators; ② Measure ripple; if >50mV, request service for filter inspection or repair; ③ Check system load; reduce load or add power modules if overloaded; ④ Route wiring away from interference sources, use shielded cables, and tighten terminals; ⑤ Clean dust and improve cooling to avoid overheating.
4. System error and abnormal power status after hot‑swap
Possible causes: Improper hot‑swap procedure, poor contact, incompatible module, unsynchronized redundancy parameters, module not recognized.Solutions: ① Follow standard hot‑swap procedure; disable related circuits before removal; allow auto‑recognition after replacement; ② Remove dust and oxidation from connectors and reinsert firmly; ③ Confirm module is IC698PSA100E and compatible with RX7i; ④ Restart the system and synchronize redundancy parameters; ⑤ Check firmware or contact service for hardware issues if recognition fails.
5. Frequent alarms and abnormal flashing indicators during operation
Possible causes: Excessive input voltage fluctuation, out‑of‑range ambient temperature, overload, fan fault, internal circuit abnormality; high vibration may loosen wiring and trigger alarms.Solutions: ① Stabilize input with regulators; ② Improve ventilation to keep temperature within -25℃ ~ +60℃; ③ Check and balance system load; ④ Inspect fan; clean or replace if faulty; ⑤ If all above are normal, contact GE authorized service for internal inspection; ⑥ Tighten all wiring to reduce vibration impact.
