1. Product Description

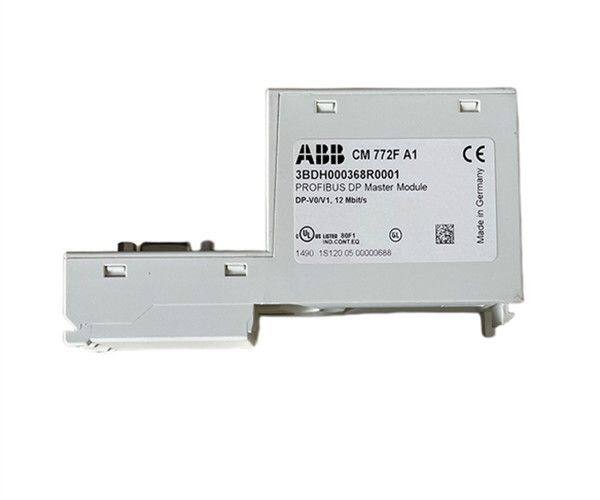

ABB CM772F (Order No.: 3BDH000368R0001) is a high‑performance PROFIBUS DP master module for AC 700F / AC 900F control systems (excluding PM 904F configurations). Its core function is to establish a high‑speed, reliable communication link between the controller and PROFIBUS DP slave devices, enabling centralized acquisition of field digital/analog signals and fast issuance of control commands. It supports connection of distributed I/O, inverters, instruments and other equipment without additional gateways, greatly simplifying the industrial fieldbus architecture and reducing system integration costs.
The module features a compact DIN‑rail‑compatible design, integrated comprehensive communication diagnostics and status indication, and strong electromagnetic interference immunity. It can operate stably for a long time in harsh industrial environments such as chemical, power, metallurgy and water treatment. Supporting PROFIBUS‑DP V0/V1 protocol with adjustable communication speed, it adapts to fieldbus networks of different scales and serves as a core communication module for field device interconnection in process industry DCS systems.
2. Technical Specifications
| Parameter Category | Details |
|---|---|
| Model / Order No. | Model: CM772F; Order No.: 3BDH000368R0001; Type: PROFIBUS DP master module (for AC 700F / AC 900F controllers) |
| Manufacturer | ABB (Country of origin: Switzerland/Europe; industrial‑grade components, full‑process quality inspection, compliant with CE and IEC industrial standards) |
| Product Type | Industrial fieldbus communication module, used to extend PROFIBUS DP master interface in DCS/PLC systems for communication interconnection of field devices |
| Core Functions | 1) PROFIBUS‑DP V0/V1 master, supporting polled/non‑polled communication with multiple DP slaves;2) Communication speed up to 12 Mbps, flexibly configurable;3) 5 LED status indicators for real‑time power, communication and fault status;4) Integrated communication diagnostics for quick bus fault location;5) Powered via coupler bus, no external separate power supply needed;6) Compatible with AC 700F / AC 900F (excluding PM 904F) control systems |
| Electrical Parameters | Power supply: Coupler bus powered (no external 24 VDC required);Communication interface: 9‑pin D‑SUB female;Protocol: PROFIBUS‑DP V0/V1;Speed: 9.6 kbps ~ 12 Mbps adjustable |
| Communication & Interface | Physical layer: RS‑485;Interface protection: Built‑in surge protection;Supports GSD file import for slave configuration;Automatic bus fault isolation and recovery mechanism;Parameter configuration via Control Builder F engineering software |
| Physical Characteristics | Mounting: Standard DIN rail, compact design;Dimensions: 28 mm (W) × 135 mm (H) × 75 mm (D);Net weight: approx. 0.1 kg;Ingress protection: IP20 (for cabinet installation);Status indication: 5 LEDs (Power, DP Master Ready, Data Transfer, Bus Fault, Module Fault) |
| Environmental | Operating temperature: -20℃ ~ +70℃;Storage temperature: -40℃ ~ +85℃;Relative humidity: 5% ~ 95% (non‑condensing);Vibration / shock: Compliant with IEC 60068;EMC: Compliant with IEC 61000‑6‑2 / 6‑4 |
| Reliability | MTBF > 100,000 hours;No hot‑swap; replacement requires power off;Redundant communication link optional;Self‑diagnostics for quick troubleshooting |
3. Functions & Features
(1) Stable and High‑Speed Bus Communication
Standard protocol compatibility: Native support for PROFIBUS‑DP V0/V1, seamless connection with mainstream DP slaves, no extra protocol conversion, reducing compatibility risks. Speed up to 12 Mbps, adjustable according to bus length to balance speed and stability.
Multi‑slave management: Connects multiple DP slaves, supports polling mechanism, ensures real‑time data acquisition and command issuance, suitable for large distributed I/O networks.
Precise diagnostics: LED indicators and system diagnostic logs quickly identify power faults, bus short circuits, slave offline and other issues, reducing troubleshooting time.
(2) Easy Integration and Maintenance
Plug‑and‑play configuration: Master parameters, slave addresses and communication speed configured via Control Builder F; supports GSD file import, simplifying slave setup.
Clear status indication: 5 independent LEDs for PWR, RDY, DATA, BUS, ERR. Operating status can be judged without connecting to a computer.
Compact installation: Small size, DIN rail mounting, small cabinet footprint, rational interface layout, easy wiring, suitable for mass deployment.
(3) Harsh Environment Adaptability
Strong anti‑interference: Industrial‑grade EMC design withstands electromagnetic interference from inverters, motors and other field equipment, ensuring no packet loss or communication interruption.
Wide temperature range: Operating temperature -20℃ ~ +70℃, adapts to cold northern, hot southern and industrial plant conditions without extra temperature control.
Robust design: No moving parts, fully sealed electronic components, resistant to vibration and dust on site, ensuring long‑term stable operation.
4. Applications
Process industry DCS: Used as PROFIBUS DP master in AC 900F systems in petrochemical and chemical plants, connecting distributed I/O, valve positioners and analyzers for centralized production monitoring.
Power and water treatment: Used in AC 700F systems in power plants and wastewater treatment plants, connecting inverters, pump control units, level/pressure instruments to build stable field communication networks.
Metallurgy and manufacturing: Used in rolling mill and heating furnace control systems in steel plants, connecting temperature sensors, motor protection devices and actuators for real‑time process data acquisition and precise control.
Legacy system upgrade: Extends PROFIBUS DP interface for traditional ABB AC 700F / AC 900F systems, compatible with new DP slaves without replacing the main controller, lowering upgrade costs.
5. FAQs & Troubleshooting
PROFIBUS DP bus communication interruption
First check that bus wiring is secure; fix loose 9‑pin D‑SUB connections or reversed A/B lines. Verify communication speed matches slaves. Check that 120Ω terminal resistors are correctly installed at both ends of the bus. Use PROFIBUS diagnostic tools to detect interference; replace shielded twisted‑pair cable and route away from strong interference sources if needed. Check module fault LEDs to distinguish between module hardware and bus issues.
Slave devices cannot be recognized by the master
Confirm no duplicate slave addresses. Import the correct slave GSD file. Check slave power supply. Verify slave model in master configuration matches actual hardware. Restart the main controller and module to refresh the connection. If only some slaves are offline, check their bus wiring.
Communication speed cannot reach 12 Mbps
Check excessive bus length (higher speed requires shorter distance). Use certified PROFIBUS shielded twisted‑pair cable. Reduce excessive intermediate connectors causing signal attenuation. Test at lower speeds to locate the problem. Check module firmware version and upgrade if necessary.
Abnormal LED indicators (e.g. power LED off)
Check coupler bus power supply. Ensure secure backplane connection between module and controller. Check for reversed or improperly seated module. If power is normal but LEDs remain off, the module is most likely defective.
