I. Basic Information

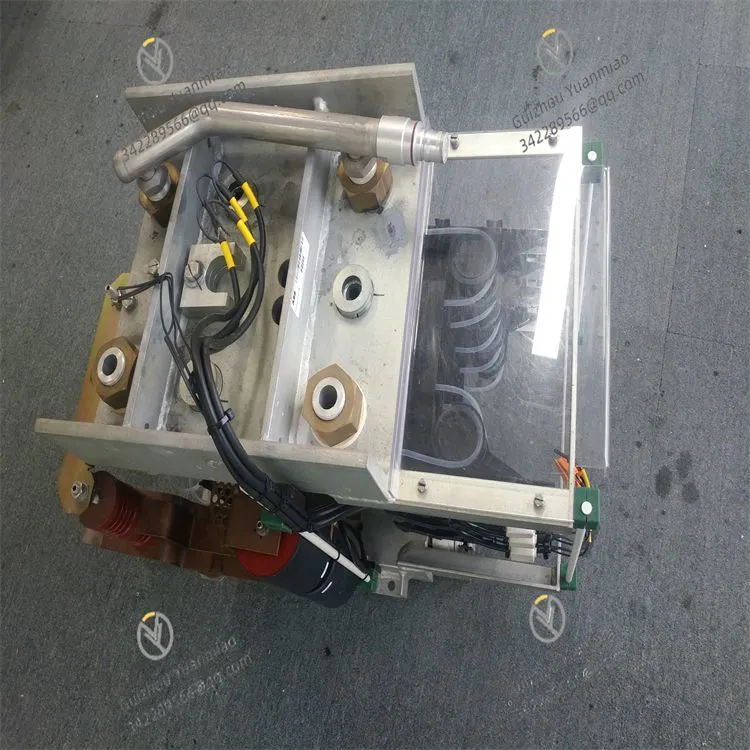

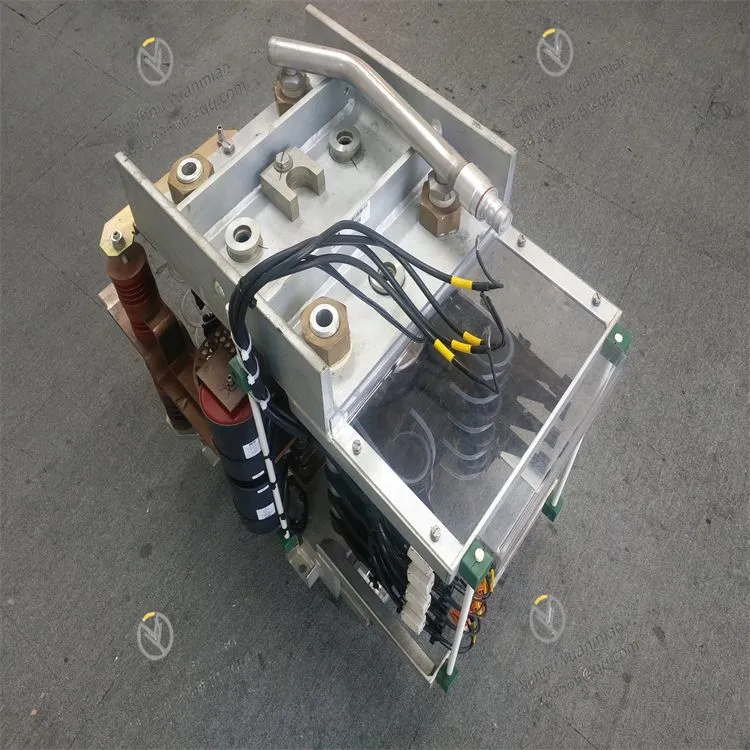

Model: 3BHB009884R0204 (Full Name: S-073H High-Voltage Frequency Conversion Phase IGCT Thyristor Combined Rack Module)
Brand: ABB (Switzerland)
Product Overview: A dedicated core phase control module for ABB high-voltage frequency conversion systems and generator excitation systems. It integrates IGCT thyristor power devices, phase detection circuits, signal conditioning and power drive units. Serving as a key power component for high-power HV variable speed drives and generator excitation regulation systems, it is widely used as original spare parts for renovation and replacement in thermal power, hydropower and industrial high-voltage frequency conversion equipment.
Hardware Architecture: Adopts an integrated rack structure, integrating phase acquisition circuit, IGCT power unit, thyristor trigger loop and fault detection loop. The modular integrated design is fully compatible with ABB full-series high-voltage frequency conversion and excitation complete racks.
Installation Specification: Embedded installation for standard cabinet racks. Equipped with industrial reinforced metal housing and built-in insulation protection structure. The PCB is coated with industrial three-proof coating to resist dust and corrosion, adapting to harsh working conditions of industrial high-voltage cabinets.
Compatible Systems: Matches ABB high-voltage variable frequency drive systems and UNITROL series generator excitation control systems. It can cooperate with upper main control boards and signal acquisition boards to realize system logic interlock and fault protection linkage.
II. Technical Specifications
1. Phase Detection Parameters
Phase measurement range covers 0°~360°, supporting three-phase high-voltage AC phase acquisition. With high phase detection accuracy, it can precisely capture phase deviation of grid and generator voltage, providing core data support for frequency conversion modulation and excitation phase-shift control, and ensuring synchronous operation accuracy of the system.
2. Power Device Parameters
Core power devices adopt imported IGCT (Integrated Gate Commutated Thyristor) and thyristor combined circuit, featuring high voltage and current resistance and fast turn-off performance. It supports stable turn-on and turn-off under high-voltage and high-power operating conditions, adapts to core power loops such as rectification and inversion of high-voltage frequency conversion and excitation voltage regulation, and withstands frequent power switching impacts.
3. Electrical Performance Parameters
Optimized for high-voltage industrial working conditions, it is equipped with multi-stage hardware protection against overvoltage, overcurrent and overheating. The circuit features fast response, which can follow system instructions in real time to complete phase switching and power regulation. It adopts a complete circuit isolation design with separated strong and weak electricity layouts, effectively avoiding high-voltage crosstalk and electromagnetic interference and ensuring stable operation of high-voltage systems.
4. Environmental Parameters
Operating Temperature: -20℃～+60℃; Storage Temperature: -40℃～+85℃
Working Humidity: 5%~95% RH (non-condensing), supporting long-term continuous operation
Anti-interference Level: Complies with EMC anti-interference standards for industrial high-voltage equipment. It can resist strong electromagnetic interference generated by frequency conversion and rectification equipment in high-voltage cabinets, suitable for heavy industrial scenarios such as power plants, chemical industry and metallurgy.
III. Key Features
1. Integrated Phase and Power Control
A single module integrates phase sampling, logic operation and IGCT/thyristor power drive functions. No additional adapter modules are required, which simplifies the high-voltage system architecture, reduces wiring fault points and greatly improves the stability of complete equipment.
2. High-Precision Phase-Shift Regulation for High-Power Conditions
It accurately collects three-phase phase signals and performs real-time phase-shift logic regulation, meeting the high-precision control requirements of high-voltage variable frequency speed regulation and generator excitation voltage regulation. It effectively suppresses grid harmonics and ensures stable operation of generator sets and frequency conversion equipment.
3. Full-Dimension Hardware Fault Self-Protection
Built with multiple hardware protection mechanisms for overcurrent, overvoltage, overheating, phase abnormality and device breakdown. It can quickly lock power output upon faults to prevent breakdown of high-voltage power devices and equipment short-circuit damage, protecting the safety of the entire frequency conversion/excitation system.
4. High Adaptability for Industrial Harsh Conditions
Adopts industrial reinforced design with three-proof PCB coating and enhanced insulation structure. It resists heavy industrial dust, humidity and electromagnetic interference, supports 7×24-hour uninterrupted operation, and meets the demands of continuous industrial production.
5. Standardized Adaptable Replacement
The original standardized board design matches the interface of ABB original high-voltage frequency conversion and excitation system racks. It can directly replace old faulty modules in situ without modifying cabinet wiring and system logic, perfectly suitable for equipment technical renovation and daily spare part replacement.
IV. Working Principle
After power-on, the built-in phase acquisition circuit collects three-phase voltage phase signals of high-voltage grid and generator terminals in real time. After signal filtering, shaping and amplification, the signals are transmitted to the onboard logic unit. When the upper system main controller issues frequency conversion modulation and excitation voltage regulation commands, the module generates precise phase-shift trigger signals through internal logic operation to drive IGCT and thyristor power devices to turn on and off in sequence.
By precisely controlling the turn-on angle and timing of power devices, it realizes accurate regulation of high-voltage frequency conversion power and generator excitation current. During operation, it monitors circuit current, voltage, temperature and phase status in real time. Once abnormalities are detected, it immediately triggers hardware protection to lock power output, uploads fault signals to the upper main control system, and activates system alarm and interlock protection, ensuring the safe and stable operation of the entire equipment.
V. Application Scenarios
1. Thermal & Hydropower Generator Units: Serves as the core component for phase regulation and excitation power drive of UNITROL series excitation systems, ensuring stable grid connection, voltage regulation and frequency stabilization of generator units.
2. Industrial High-Voltage Frequency Conversion Systems: Acts as the core module for rectification and inversion phase control and power output of high-power high-voltage inverters, applicable to high-voltage variable frequency speed regulation equipment such as fans, water pumps and compressors.
3. Metallurgical & Chemical Heavy Industry: Functions as the phase control and power drive unit for high-voltage transmission equipment and high-power rectification equipment, adapting to continuous industrial production conditions.
4. Equipment Renovation & Spare Parts Replacement: Special original spare parts for replacement of old modules and system upgrading of ABB series high-voltage frequency conversion and excitation systems.
