I. Basic Information

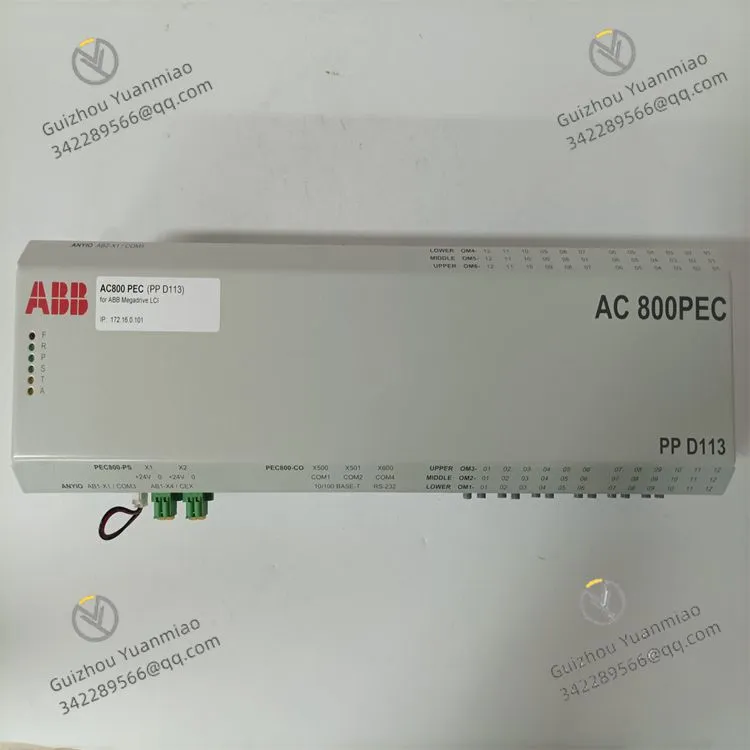

Model: PPD113B03-10-111611 | Part Code: 3BHE023584R2046Product Positioning: ABB AC800PEC series high-performance digital pulse drive board, core firing control card for Unitrol generator excitation & high-power SCR rectifier systems. It receives phase-shift commands from upper AC800PEC controller and outputs isolated gate trigger pulses for silicon-controlled rectifiers; widely used as critical retrofit spare for thermal/hydro power excitation cabinets, aluminum electrolysis rectifier plants and metallurgical heavy-duty DC drive facilities.
Brand: ABB | Origin: SwitzerlandCategory: DIN rail mounted pluggable SCR pulse firing control board (AC800PEC converter control family)
Compatibility: AC800PEC controller, Unitrol excitation system, high-power 6-pulse/12-pulse SCR rectifier bridges, DATX series pulse isolation transform boards, AC800M/800xA DCS, electrolysis rectifier power cabinets.
Mounting: Standard 35mm DIN rail clip installation; Dimension: 228(L)×132(W)×55(D) mm, Net Weight ≈1.18kg. Metal shield housing, IP30 protection grade; full PCB G3 anti-corrosion coating per ISA71.04, suitable for dusty & corrosive atmosphere of electrolysis workshops and power station switch rooms.
Standard Configuration: Phase lock PLL synchronization circuit, multi-channel isolated pulse output loop, onboard isolated auxiliary power, fault detection & dry-contact alarm terminal, fiber/electrical signal interface, hardware DIP configuration switches.
II. Technical Specifications
(1) Power Supply Parameter
Rated supply: DC24V (9~36VDC wide range tolerance), dual redundant power input optional, total power consumption ≤13.5W; built-in reverse polarity, surge and EMC surge protection.Isolation level: Pulse output channel galvanic isolation ≥2500VAC between control side and power side to eliminate ground loop interference.
(2) Synchronization & Pulse Output Spec
Grid synchronous sampling: Line voltage sync from transformer PT, PLL phase locking accuracy ≤±0.1° electrical angle;
Multi-group independent trigger pulse output, matched with DATX100 pulse transformer board to drive SCR thyristor gate; pulse frequency adjustable, optimized for 6/12 pulse rectifier topology;
Supports electrical pulse signal or optional fiber optic signal transmission for harsh high-EMI cabinet environment.
(3) Digital I/O & Diagnosis Circuit
8-channel passive DC24V DI for breaker status, cabinet interlock feedback;
3-channel relay DO (AC250V/5A dry contact) for pulse loss, sync fault, board abnormal remote alarm;
Internal real-time pulse waveform monitoring.
(4) Environmental Specifications
Continuous operation: -25℃ ~ +70℃; Storage temperature: -40℃ ~ +85℃;Humidity: 5%~95% RH non-condensing; fully complies with Level 4 IEC61000 EMC standard against strong electromagnetic interference from high-power rectifier and frequency converter equipment.
III. Key Features
High-precision PLL grid synchronizationPhase-lock loop tracks grid voltage in real time to guarantee accurate firing angle adjustment of SCR, ensures stable excitation voltage and rectifier constant-current output, voltage regulation static precision ≤±0.5%FS for generator excitation control.
Isolated multi-path pulse driving matching DATX series boardControl low-voltage pulse is isolated and amplified via external pulse transformer board, effectively isolating high-voltage surge from main rectifier circuit to protect upper AC800PEC main control unit.
Full self-diagnosis & multi-level fault alarmingOnboard real-time detection of power failure, grid sync loss, pulse output open/short fault; local LED indication + external dry-contact relay alarm, fault information uploaded via fieldbus to 800xA HMI with popup warning.
Hot-swap modular maintenance designPlug-and-play replacement without entire cabinet power cut, greatly shortens maintenance downtime of excitation and electrolytic rectifier units during field overhaul.
Flexible topology adaptationParameter configurable via DIP switch or controller software, applicable for 6-pulse, 12-pulse rectifier schemes, compatible with new-built equipment and legacy Advant/Symphony system upgrade renovation.
IV. Operating Principle
DC24V redundant power-up → Board self-test of power, PLL sync circuit and pulse drive circuit;Downlink: AC800PEC receives setpoint from 800xA DCS → calculates optimal SCR firing angle → sends phase-shift command to PPD113B → board generates standard trigger pulse → transmitted to DATX100 isolation board → final amplified pulse triggers SCR thyristor to control conduction angle and realize voltage/current adjustment;Uplink: Grid voltage sampling + cabinet interlock DI status collected by PPD113B → uploaded to AC800PEC and upper DCS for real-time monitoring;Fault logic: Sync loss or pulse channel failure → board stops abnormal pulse output, triggers local relay alarm and reports fault code to DCS for production interlock protection.
V. Application Scenarios
Thermal/Hydropower: Spare firing control card for Unitrol excitation cabinet of 10MW~700MW turbo/hydro generator units;
Aluminum & Chlor-Alkali Chemical: Core pulse board for high-power SCR electrolysis rectifier power supply cabinet;
Metallurgy Industry: DC rolling mill, electric arc furnace rectification control system technical renovation replacement parts;
New Energy: Grid-connected rectifier & inverter control cabinet matching spare for wind & solar power plants;
Upgrade Project: Drop-in replacement spare when transforming old Symphony/Advant control system to AC800M/800PEC+800xA platform.
