The HN-SAW8 Industrial Grade Mobile Workstation is designed specifically for these professionals.
This isn't a light-duty cart trying to look tough. It's a purpose-built mobile workstation that handles the realities of metal fabrication – heavy tools, sharp edges, grinding dust, and the constant movement between work areas. The high load capacity steel tool board gives you maximum hanging space for frequently used tools. The reinforced base handles the weight of heavy equipment without flexing. And the entire unit moves smoothly across shop floors, bringing your tools to the work instead of the other way around.
In shops across San Antonio, this cart has become a best-seller because it does one thing exceptionally well: it holds up under real working conditions.
High Load Capacity: Built for Heavy Tools
What "High Load Capacity" Actually Means
Metal fabrication tools are heavy. Angle grinders, impact wrenches, chipping hammers, and welding tools add up quickly. The HN-SAW8 is engineered to handle this weight without compromising mobility or stability.
| Component | Load Capacity | Notes |
|---|---|---|
| Total cart (distributed) | 500 kg | Maximum recommended total weight |
| Steel tool board (per side) | 100 kg | Distributed across multiple hooks |
| Per hook location | 15 kg | Heavy-duty hooks rated accordingly |
| Bottom shelf | 150 kg | Reinforced 2.5 mm steel |
| Drawer modules (optional) | 50 kg per drawer | Full-extension slides |
These aren't theoretical maximums – they're conservative ratings with safety factors built in. The cart won't buckle, bend, or become unstable when loaded to these limits.
Frame Engineering
The HN-SAW8 starts with a foundation of heavy-gauge steel tubing:
| Frame Component | Specification | Why It Matters |
|---|---|---|
| Vertical columns | 40×60 mm rectangle, 2.0 mm wall | Larger than standard carts – resists bending |
| Base frame | 3.0 mm formed channel | Handles point loads from heavy tools |
| Cross-bracing | 40×40 mm angle, 3.0 mm | Prevents racking during movement |
| Caster plates | 6.0 mm thick | Spreads load, prevents fatigue |
| Weld quality | Continuous full-penetration | No weak points at joints |
The result is a frame that maintains its shape even when moving fully loaded across uneven shop floors. No twisting, no flexing, no premature fatigue.
Reinforced Base: The Foundation of Stability
Why Base Reinforcement Matters
In metal fabrication, tools don't always stay neatly on shelves. Heavy items get dropped on the bottom shelf. The cart gets bumped by forklifts. It rolls over threshold strips and expansion joints. A weak base will eventually fail under these conditions.
The HN-SAW8 features a purpose-built reinforced base that addresses these real-world challenges:
Base construction:
Double-layer construction: Two layers of 3.0 mm steel at all stress points
Perimeter frame: Continuous 50×50×3 mm angle around entire base
Internal gussets: Triangular reinforcements at all corners
Caster mounting plates: 6.0 mm thick, welded both sides
Cross-members: Additional supports under the entire shelf area
This construction means the base acts as a single rigid unit. Loads distribute evenly to all four casters. The cart doesn't flex or twist when moving.
Bottom Shelf Design
The bottom shelf itself is 2.5 mm cold-rolled steel – thick enough that it won't sag or deform under heavy loads. Key features:
Folded edges: All four sides folded down for rigidity and safety
Drain holes: Optional holes for draining fluids (specify when ordering)
Non-slip surface: Powder coating provides grip
Full-width access: No obstructions – slide heavy items on and off easily
The shelf sits 200 mm off the floor – high enough to clear most shop debris but low enough to maintain a low center of gravity.

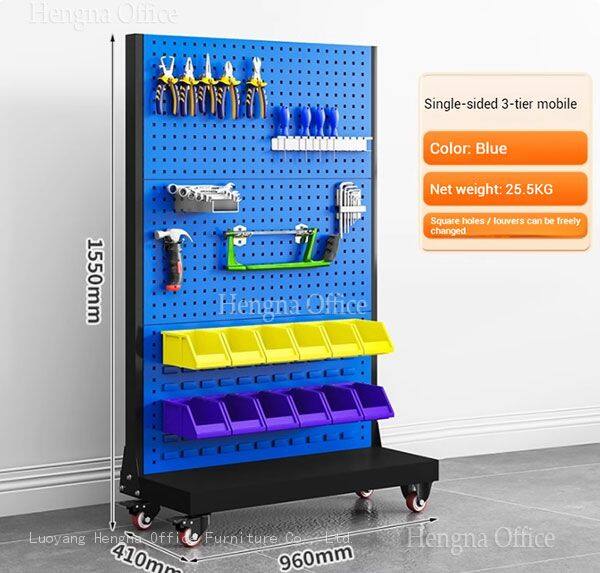

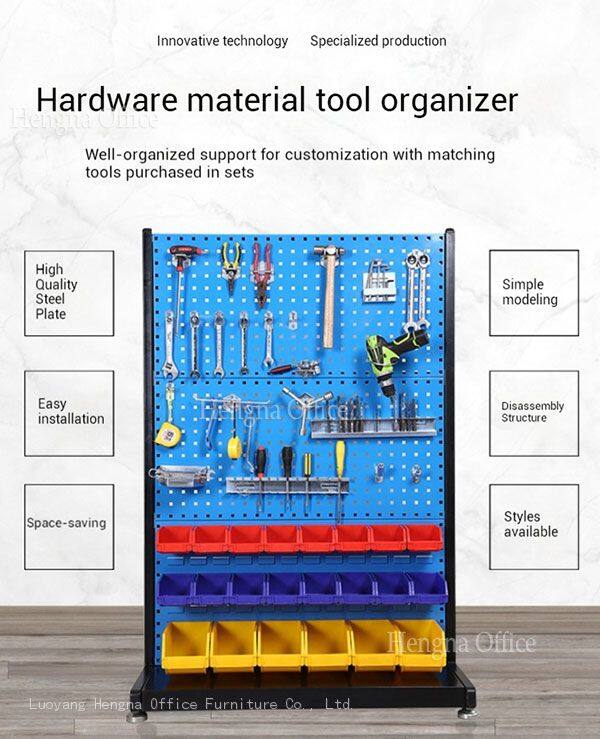

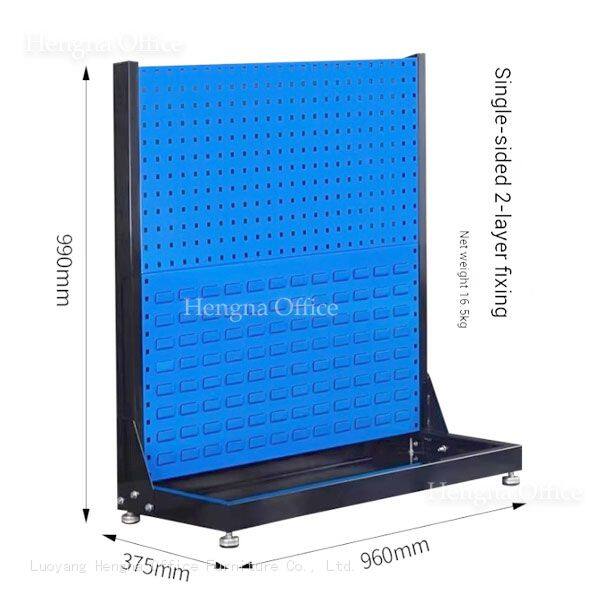

Steel Tool Board: Organized Access
Square Hole Panel Design
The HN-SAW8 features full-height square hole panels on both sides. Square holes offer distinct advantages for metal fabrication tools:
| Feature | Benefit |
|---|---|
| 10 mm square holes | Accepts standard industrial hooks |
| 20 mm centers | Dense packing without overcrowding |
| 2.0 mm panel thickness | Stiffer than standard 1.2 mm panels |
| Deburred holes | No sharp edges to cut hands or snag gloves |
| Full-height coverage | Maximizes usable storage space |
Each panel measures 900 mm wide by 800 mm high – that's 0.72 square meters of hanging space per side, or 1.44 square meters total.

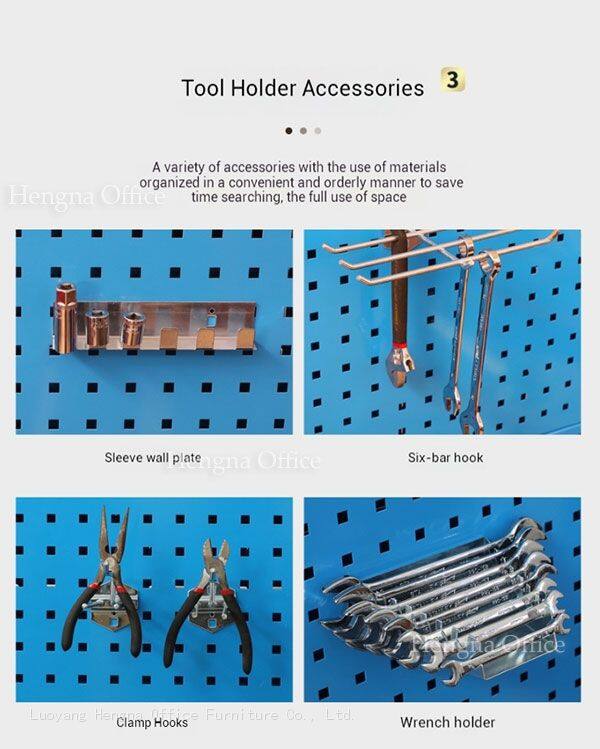

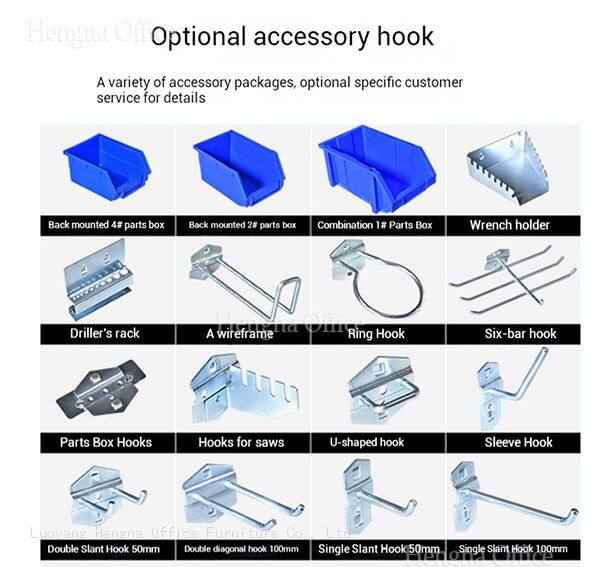

Hook Options for Heavy Tools
Standard pegboard hooks won't cut it in metal fabrication. The HN-SAW8 uses heavy-duty industrial hooks designed for the weight of fabrication tools:
| Hook Type | Typical Use | Load Rating |
|---|---|---|
| Heavy straight hook | Grinders, impacts, large wrenches | 15 kg |
| Double straight hook | Multiple tools in one location | 25 kg total |
| J-hook with safety latch | Cords, hoses, welding leads | 20 kg |
| Tool-specific holder | Welding torch holder, clamp rack | 15 kg |
| Shelf bracket | Mount small shelves for parts | 30 kg per pair |
| Bin bracket | Plastic parts bins | 10 kg per bin |
All hooks are zinc-plated for corrosion resistance and include locking tabs that engage the square holes – they won't work loose when the cart moves.
Tool Board Load Distribution
The 2.0 mm panel thickness means you can hang heavy tools without worrying about the panel bending. Loads distribute across multiple holes, preventing localized stress. Even with 100 kg distributed across the panel, deflection is minimal.
Mobility Under Heavy Loads

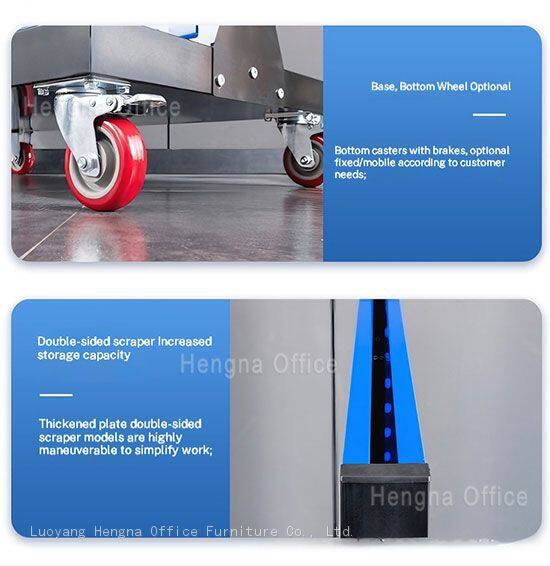

125 mm Heavy-Duty Casters
Standard 75 mm casters won't handle 500 kg loads or roll smoothly over fabrication shop floors. The HN-SAW8 uses 125 mm polyurethane casters – larger diameter for easier rolling and higher load capacity:
| Caster Specification | Detail |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 40 mm |
| Material | Polyurethane (95 Shore A) – extra firm |
| Bearing | Tapered roller bearings |
| Load capacity per caster | 300 kg |
| Total cart capacity | 500 kg (with safety factor) |
The larger diameter means:
Easier rolling over grinding debris, weld spatter, and floor joints
Higher load capacity – each caster handles more weight
Better floor protection – larger contact area reduces pressure
Smoother movement – rolls over obstacles instead of hitting them
Caster Configuration
| Position | Type | Brake | Function |
|---|---|---|---|
| Front (2) | Swivel | Yes | Steering, parking |
| Rear (2) | Fixed | No | Straight-line tracking |
The swivel casters feature dual-lock brakes that secure both wheel rotation and swivel movement. When parked next to a welding table or fabrication bench, the cart stays put.
Optional All-Swivel Configuration
For maximum maneuverability in tight shops, we offer an option with four swivel casters. This configuration allows the cart to spin in place and move in any direction without turning. Specify when ordering.
Handle Design
Moving 500 kg requires leverage. The HN-SAW8 features a heavy-duty push handle:
Material: 32 mm steel tube, 2.5 mm wall
Height: 1000 mm from floor – comfortable for most operators
Attachment: Welded to frame with gusset reinforcement
Grip: Full-width, smooth powder coat
Double-sided: Handles on both ends for push/pull from either side
The handle is positioned to provide maximum leverage when starting and stopping the loaded cart.
Technical Specifications
| Specification | HN-SAW8 Standard Model |
|---|---|
| Overall dimensions (W×D×H) | 1200×800×400 mm (customizable) |
| Frame material | Heavy-gauge steel tube, 40×60 mm, 2.0 mm wall |
| Steel tool boards | Cold-rolled steel, 2.0 mm, square holes 10 mm on 20 mm centers |
| Bottom shelf | Cold-rolled steel, 2.5 mm, reinforced |
| Base reinforcement | 6.0 mm plates at caster mounts, 3.0 mm gussets |
| Finish | Powder coated – blue frame, gray panels (custom colors available) |
| Casters | 125 mm PU, 2 swivel with brake, 2 fixed |
| Load capacity (total) | 500 kg |
| Weight (empty) | 95 kg |
| Included accessories | 8 heavy-duty hooks, 4 bin brackets |
| Assembly required | Minimal – welded frame, bolt-on casters |
| Warranty | 5 years on frame, 2 years on casters |
| Country of origin | China |
| Manufacturer | Luoyang Hengna Office Furniture Co., Ltd. |
San Antonio Metal Fabrication Applications
Where the HN-SAW8 Excels
San Antonio's metal fabrication shops use this cart in various roles:
Welding shops:
Organize welding torches, leads, clamps, and accessories
Hold filler metals and consumables
Mobile between welding stations
Fabrication shops:
Store angle grinders, plasma cutter torches, hand tools
Stage parts for assembly
Move with the work through cutting, forming, and welding areas
Machine shops:
Organize tooling for specific jobs
Hold inspection equipment
Mobile between machines
Structural steel fabrication:
Heavy tools for beam and column work
Large clamps and positioning equipment
Built to handle the weight
Ornamental iron and custom fabrication:
Specialized tools for artistic work
Organize by project
Professional appearance for client visits
Maintenance departments:
Heavy tools for equipment repair
Mobile throughout facility
Built to last
Comparison: HN-SAW8 vs. Standard Industrial Carts
| Feature | HN-SAW8 | Typical Industrial Cart |
|---|---|---|
| Frame tube size | 40×60×2.0 mm | 30×30×1.5 mm or smaller |
| Panel thickness | 2.0 mm | 1.0-1.2 mm |
| Bottom shelf | 2.5 mm reinforced | 1.2-1.5 mm, may sag |
| Base reinforcement | 6.0 mm plates, gussets | Minimal or none |
| Caster size | 125 mm | 75-100 mm |
| Load capacity | 500 kg | 200-300 kg |
| Hook capacity | 15 kg per hook | 5-10 kg |
| Welded construction | Full-penetration continuous | Spot welds or bolts |
| Warranty | 5 years frame | 1-2 years |
Optional Features for Fabrication Shops
Customization Options
As a factory-direct manufacturer, we offer extensive customization for the HN-SAW8:
Material upgrades:
Stainless steel for corrosion resistance
100% galvanized frame
Abrasion-resistant coating for heavy grinding areas
Storage additions:
Heavy-duty drawer modules (ball-bearing slides)
Lockable cabinet base
Additional shelf levels
Side-mounted tool holders
Work surface options:
10 mm thick steel top for heavy work
Stainless steel top for clean applications
Wood top for pattern work
Flip-up extension tables
Specialty holders:
Welding cylinder rack
Torch holder with strike plate
Clamp rack (holds various sizes)
Electrode holder
Grinder parking station
Mobility options:
Four swivel casters for maximum maneuverability
All casters with brakes
Floor locks for extreme stability
Tow hitch for tugger trains
Shop-Specific Configurations
We work with San Antonio shops to create configurations that match their specific workflows:
Welding cart configuration: Includes torch holder, cylinder rack, and fire-resistant top
Fitter's cart configuration: Large bottom shelf for clamps, tool board for layout tools
Finishing cart configuration: Organize grinders, sanders, and finishing supplies
Maintenance cart configuration: Heavy tools, lubricants, and repair parts
Durability Features for Fabrication Environments
Built to Survive the Shop
Metal fabrication is hard on equipment. The HN-SAW8 includes features that extend service life:
Impact resistance:
2.0 mm panels resist dents from tool impacts
Reinforced corners prevent bending
Welded frame won't loosen from vibration
Abrasion resistance:
Heavy-duty powder coating resists scratching
Thick material means scratches don't compromise strength
Replaceable components extend overall life
Chemical resistance:
Powder coating withstands cutting fluids, solvents, and cleaners
Polyurethane casters resist oil and grease
Zinc-plated hardware won't corrode
Heat resistance:
Panels can handle hot tools (brief contact)
Keep hot items on bottom shelf away from panels
Optional heat-shield panels available
Maintenance
The HN-SAW8 requires minimal maintenance:
Wipe down as needed with shop cleaners
Check caster bolts annually – retorque if loose
Lubricate swivel races annually
Replace worn casters when needed (available through parts department)
With proper care, the frame will last 10-15 years in fabrication environments.
Frequently Asked Questions
Q: Will this cart hold up around welding operations? Will weld spatter damage it?
A: The powder coating will withstand occasional weld spatter, but direct, repeated exposure will damage any painted surface. We recommend positioning the cart at a safe distance from active welding. For shops where the cart must be near welding, we offer an optional heat-shield panel or stainless steel construction that handles spatter better. The cart itself is steel – it won't catch fire, but the finish may be affected over time.
Q: How does it handle rolling over grinding debris and metal shavings?
A: The 125 mm casters roll over light debris much better than smaller wheels. However, no caster likes sharp metal shavings. We recommend sweeping paths before moving heavily loaded carts. The polyurethane wheels resist cutting better than rubber, but large, sharp debris can still damage them. For extreme environments, we offer optional steel wheels (with floor protection trade-offs).
Q: Can I get this cart with drawers for smaller tools and a tool board for larger ones?
A: Yes. We offer bolt-on drawer modules in various sizes that attach to the frame sides or replace the bottom shelf. You can configure the cart with drawers on one side and open panels on the other, or drawers on the bottom and panels above. Drawers feature full-extension ball-bearing slides and are available with or without locks. Contact our sales team with your specific requirements for a custom configuration.
The contact information of the sales manager is shown in the picture below. You can make inquiries directly without waiting.
Send Inquiry to This Supplier
You May Also Like
-
HN-DIP6 5S Lean Manufacturing Tool Cart for Dallas Industrial Parks, Double Sided Rolling Pegboard Stand With Ergonomic Handles, Professional CustomUS$ 60 - 120MOQ: 5 Combos
-
Durable Dual-Sided Mobile Tool Rack for Garage & Workshop StorageUS$ 60 - 120MOQ: 5 Combos
-
Heavy-Duty Tool Storage Cart With Bins for Mechanic Shops Colorful and Excellent WorkmanshipUS$ 60 - 120MOQ: 5 Combos
-
Portable Tool Rack With Multi-Level Shelves for Efficient StorageUS$ 60 - 120MOQ: 5 Combos
-
Professional Industrial-Grade Rolling Tool Storage Rack With Adjustable DesignUS$ 60 - 120MOQ: 5 Combos
-
High-Quality Tool Organizer With Bins for Automotive and DIY UseUS$ 60 - 120MOQ: 5 Combos
-
Heavy Duty Tool Storage Rack | Mobile Workshop Shelf for Hardware & ToolsUS$ 59 - 199MOQ: 2 Sets
-
Heavy Duty Hardware Storage Rack for Construction Sites – Organize Tools, Materials, and EquipmentUS$ 59 - 199MOQ: 2 Sets
-
Hengna Stainless Steel Material Rack for Manufacturing – Durable and Reliable Storage Solution for Industrial Use SupplierUS$ 59 - 199MOQ: 2 Sets
-
Hengna Wall-Mounted Hardware Rack for Retail Stores – Efficient Display and Storage for Tools and AccessoriesUS$ 59 - 199MOQ: 2 Sets
