The HN-GBP5 Mobile Tool Shadow Board is built specifically for these conditions.
This isn't a standard tool cart adapted for factory use. It's a purpose-built solution that addresses the two biggest challenges in Savannah battery plants: rust prevention and visual tool management. The A-frame design gives you maximum storage in a compact footprint, while the rust-resistant finish stands up to the coastal climate that eats away at ordinary equipment.
The A-Frame Advantage
Why A-Frame Design Works for Battery Plants
Most tool carts are vertical boxes. The HN-GBP5 takes a different approach with its A-frame configuration. Two sloped panels meet at the top, creating a shape that offers distinct advantages in production environments:
| Feature | Benefit |
|---|---|
| Sloped panels | Tools stay visible and accessible without bending |
| Narrow footprint | Fits in aisle ends and between workstations |
| Low center of gravity | Stable even when fully loaded and moving |
| Dual-sided access | Two technicians can use simultaneously |
| Open design | No dark corners where tools get lost |
The A-frame geometry means both sides of the cart present tools at a comfortable viewing angle. Instead of reaching into a vertical panel, tools face you directly. This might sound like a small detail, but in a busy battery plant where technicians access tools hundreds of times per shift, it adds up to real time savings.
Dimensions That Work in Tight Spaces
Battery production lines leave little extra room. The HN-GBP5 is sized to fit where space is tight:
| Dimension | Measurement |
|---|---|
| Base width | 1090 mm |
| Base depth | 610 mm |
| Overall height | 1450 mm |
| Panel height (each side) | 1200 mm |
| Apex width | 300 mm |
| Aisle clearance needed | 800 mm minimum |
The tapered top means the cart takes up less visual space than its footprint suggests. In crowded battery assembly areas, this helps maintain sight lines across the production floor.
Rust Resistance: Built for Savannah's Climate
The Corrosion Challenge
Savannah sits in a subtropical climate. Humidity regularly exceeds 80%. Battery plants add their own challenges – electrolyte spills, water from cleaning operations, and temperature variations that cause condensation. Ordinary steel equipment in this environment shows rust within months.
The HN-GBP5 addresses this with a multi-layer protection system designed for coastal industrial use.
Testing for Real-World Conditions
We test the HN-GBP5 finish against standards that matter:
Salt spray resistance: 500+ hours without red rust
Humidity resistance: 1000 hours at 95% RH, 40°C
Chemical resistance: 24-hour spot tests against common battery electrolytes
Impact resistance: 80 in-lb direct impact without cracking
These numbers mean something in Savannah. When the afternoon humidity hits 90% and someone spills electrolyte on the cart, the finish holds.
Shadow Board Integration for 5S Programs
Visual Management Made Simple
Battery plants run on 5S principles. The HN-GBP5 is designed from the ground up to support Sort, Set in Order, Shine, Standardize, and Sustain programs.
The shadow board concept is simple: each tool has a designated location, and its outline is marked on the panel. When a tool is missing, its shadow is empty – an immediate visual cue that something needs attention.
Implementing Shadow Boards on the HN-GBP5

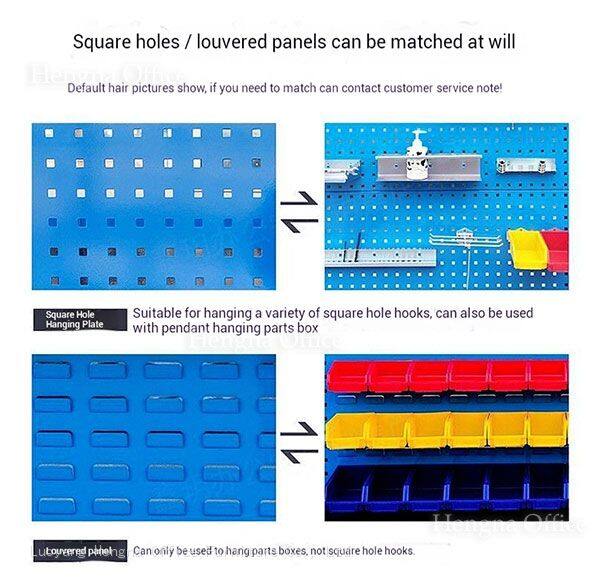

The A-frame panels accept multiple shadow board methods:
Method 1: Laser-cut foam inserts
Custom-cut EVA foam in 5-10 mm thickness mounts directly to the panel using the hole pattern. Tools press into custom-cut outlines. This is the premium solution, ideal for high-value tool sets where every tool must be accounted for.
Method 2: Adhesive-backed vinyl outlines
Less expensive than foam, still effective. Vinyl shadows applied directly to the powder-coated surface. Tools hang on hooks placed within the outlined areas.
Method 3: Painted shadows
For permanent installations, we can powder coat shadow outlines directly onto the panels during manufacturing. This is a factory option requiring lead time but provides the most durable solution.
Method 4: Magnetic shadow boards
Magnetic sheets with pre-cut tool outlines attach to the steel panels. These can be reconfigured as tool sets change.
| Method | Durability | Cost | Reconfigurability | Best For |
|---|---|---|---|---|
| Foam inserts | Medium | $$ | Low | Fixed tool sets, high-value tools |
| Vinyl outlines | Low | $ | Medium | Quick implementation, temporary areas |
| Painted shadows | High | $$$ | None | Permanent installations, audit-ready areas |
| Magnetic sheets | Medium | $$ | High | Frequently changing tool sets |
Tool Hooks That Stay Put
The HN-GBP5 uses a locking hook system rather than standard pegboard hooks. Each hook engages two holes and includes a small tab that prevents accidental dislodging. When you move the cart across the plant floor, tools stay where they belong.

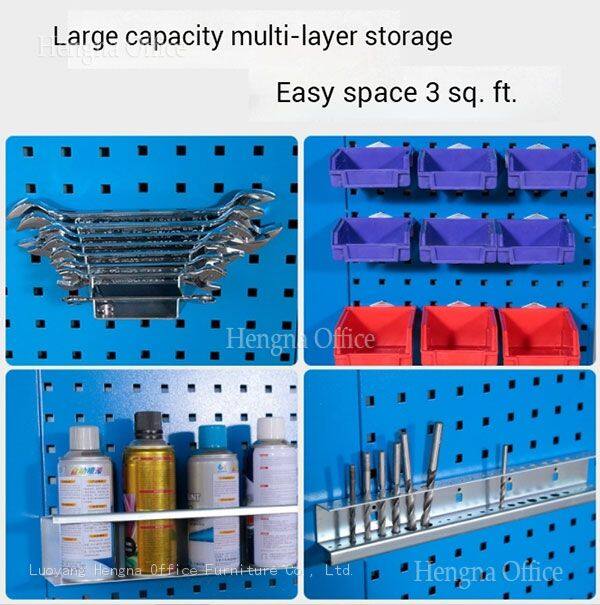

Available hook types:
Single straight hooks (various lengths)
Double straight hooks
J-hooks for corded tools
Tool-specific holders (screwdriver, plier, wrench)
Bin mounting brackets
Shelf brackets (small shelves for parts or phones)
All hooks are zinc-plated for corrosion resistance and include plastic tips to protect tools.
Mobility and Stability
Casters for Smooth Movement
Four 100 mm polyurethane casters provide the foundation. This larger diameter (compared to the 75 mm casters on many carts) rolls more easily over floor joints, debris, and the inevitable minor obstacles in a busy plant.
| Position | Type | Brake | Load Rating |
|---|---|---|---|
| Front (2) | Swivel | Yes | 200 kg each |
| Rear (2) | Fixed | No | 200 kg each |
The swivel casters include dual-lock brakes that stop both wheel rotation and swivel motion. Park the cart, engage the brakes, and it stays put – even on the slight slopes found in some plant floors for drainage.
Stability Under Load
The A-frame design naturally resists tipping. The wide base (610 mm depth) and low center of gravity mean you can load tools heavily on both sides without worrying about the cart tipping during movement.
Load capacity breakdown:
Total distributed load: 350 kg
Per side panel: 75 kg
Bottom shelf (if equipped): 100 kg
Hook capacity per panel location: 10 kg (single hook)
For extremely heavy tools, we recommend positioning them low on the panels or on the bottom shelf.
Handle Design
Moving the HN-GBP5 is straightforward. A formed steel handle at the top of the frame provides a comfortable push/pull point. The handle is positioned at 1150 mm from the floor – a height that works for most operators.
For maneuvering in tight spaces, the A-frame shape means you can see over the top of the cart while pushing, improving visibility compared to taller vertical cabinets.
Technical Specifications

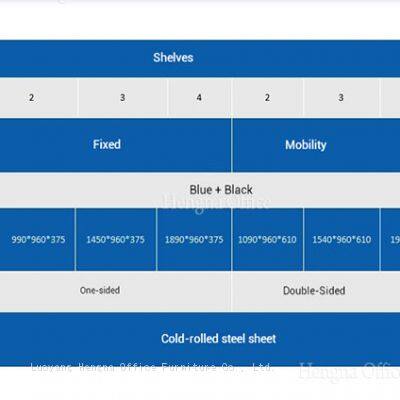

| Specification | HN-GBP5 Standard Model |
|---|---|
| Base dimensions (W×D) | 1090×610 mm |
| Overall height | 1450 mm |
| Panel height (each side) | 1200 mm |

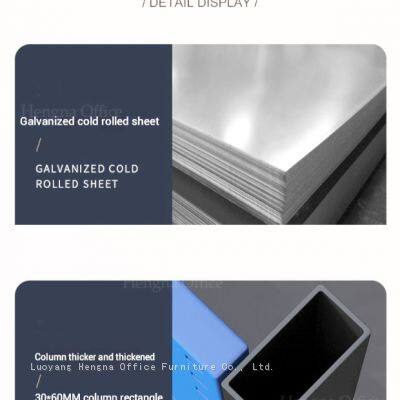

| Panel material | Galvanized cold-rolled steel |
| Frame material | Cold-rolled steel tube |
| Finish | Multi-layer: galvanized + primer + powder coat |
| Standard color | Blue frame, gray panels (custom colors available) |
| Casters | 100 mm PU, 2 swivel with brake, 2 fixed |
| Load capacity (total) | 350 kg |
| Weight (empty) | 55 kg |
| Included accessories | 20 assorted hooks, 4 bin brackets |
| Assembly required | Yes, 20 minutes with basic tools |
| Country of origin | China |
| Manufacturer | Luoyang Hengna Office Furniture Co., Ltd. |
Battery Plant Applications
Specific Uses in Savannah Facilities
The HN-GBP5 serves multiple roles across battery manufacturing operations:
Electrode area:
Organize thickness gauges, inspection tools, sample cutters
Keep tools away from electrolyte exposure
Mobile so inspection stations can be reconfigured
Assembly lines:
Store torque wrenches, alignment tools, cell handling equipment
Position between stations for shared tool access
Shadow boards ensure tools return to correct locations
Quality control:
Hold calipers, micrometers, test probes
Visual management shows which tools are in use
Mobile between QC stations as production needs shift
Maintenance:
Organize specialized tools for battery equipment
Roll to equipment requiring service
Rust-resistant finish survives wash-down areas
Training areas:
Demonstrate proper tool organization
Teach 5S principles with actual equipment
Move between classroom and production floor
Customization for Battery Industry Needs
Factory Options Available
Because we manufacture directly, we can adapt the HN-GBP5 to your specific requirements:
Material upgrades:
Stainless steel construction for corrosive areas
100% galvanized frame (not just panels)
ESD-safe configuration with conductive casters
Size modifications:
Custom heights to match your sight lines
Narrower versions for tight aisles
Extended bases for additional stability
Accessory integration:
Locking cabinet bases for secure storage
Integrated documentation holders
Label holders for tool locations
Custom shadow board graphics
Color matching:
Match your facility's color scheme
Safety colors for designated areas
High-visibility options for low-light areas
Comparison: HN-GBP5 vs. Standard Tool Carts
| Feature | HN-GBP5 | Typical Industrial Cart |
|---|---|---|
| Corrosion protection | Multi-layer galvanized + powder | Basic paint only |
| Panel configuration | A-frame, sloped for visibility | Vertical panels |
| Shadow board ready | Yes, multiple mounting options | Usually requires modification |
| Hooks | Locking type prevents fallout | Standard peg hooks fall out |
| Caster size | 100 mm for easy rolling | Often 75 mm or smaller |
| Stability | Low center of gravity, wide base | Can tip when loaded high |
| Rust resistance | Salt spray tested 500+ hours | Rust appears in months |
| Plant compatibility | Designed for battery production | General purpose |
Frequently Asked Questions
Q: How long will this cart last in Savannah's humidity without rusting?
A: Based on accelerated testing and real-world installations in similar climates, you can expect 5-7 years before any visible rust appears, assuming normal use and occasional cleaning. The combination of galvanized base material and multi-layer coating provides significantly better corrosion resistance than standard painted carts. In indoor, climate-controlled battery plants, many customers report 10+ years of service.
Q: Can I mount my existing tools and hooks, or do I need to buy new ones?
A: You can use most standard pegboard hooks, but we recommend our locking hooks for the best experience. Standard hooks may work loose when the cart is moved frequently. The hole pattern is standard 1-inch spacing, so any hooks designed for metal pegboard will physically fit. For shadow board applications where tools must stay exactly in place, our locking hooks are the better choice.
Q: The cart will be used near electrolyte filling stations. What happens if electrolyte spills on it?
A: The powder coating is formulated to resist common battery electrolytes for short periods. If a spill occurs, wipe it up promptly. Prolonged exposure (hours or days) will eventually damage any coating. For areas with frequent electrolyte exposure, we recommend our stainless steel option or specifying the heavy-duty chemical-resistant coating upgrade. Contact us for specific chemical compatibility data.
