The HN-HAR7 Professional Modular Mechanic Tool Trolley brings industrial-grade organization to Houston's busy repair floors.
This isn't a homeowner's tool cart pressed into commercial service. It's a professional-grade mobile workstation designed for the realities of auto repair: heavy tools, messy environments, and the need to move quickly between jobs. The combination of square hole hanging plates, a large utility tray, and modular accessories gives you flexibility that fixed tool boxes can't match.
Modular Design: Configure for Your Workflow
Why Modular Matters in Auto Repair
Every mechanic works differently. A transmission specialist needs different tool access than a brake and suspension tech. The HN-HAR7's modular design lets you arrange tools exactly how you want them.
The cart ships with a standard configuration, but you can:
Add or remove panels as needs change
Relocate the utility tray to different heights
Swap accessory types without tools
Reconfigure for different jobs in minutes
This flexibility means one cart can serve multiple purposes across different shifts or different technicians. In a busy Houston shop where space is tight and every dollar counts, that matters.

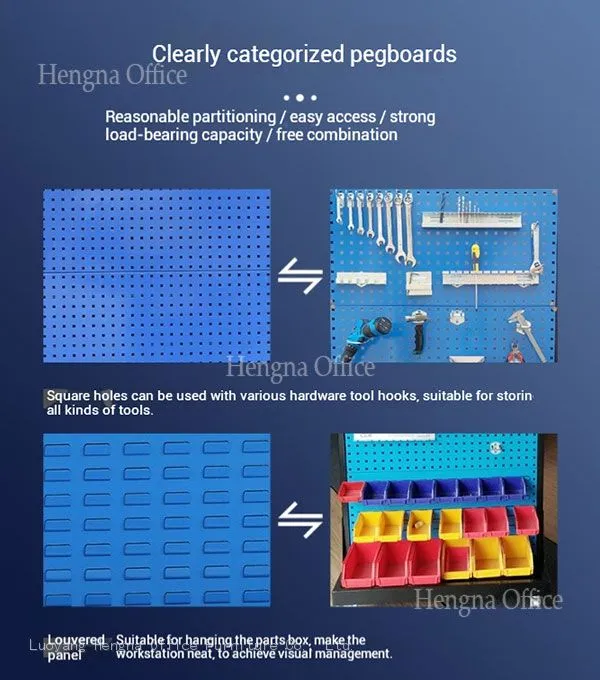

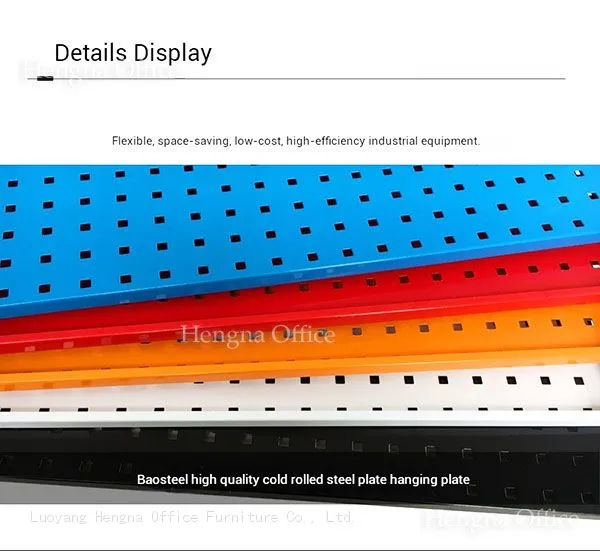

Square Hole Hanging Plate System
The heart of the HN-HAR7 is its square hole hanging plates. Unlike round pegboard holes, square holes offer distinct advantages for automotive tools:
| Feature | Square Hole Benefit |
|---|---|
| Hook engagement | Square hooks lock into square holes – no rotation |
| Load distribution | Flat surfaces contact the hook, not points |
| Tool compatibility | Accepts standard automotive tool hooks |
| Visibility | Open design lets you see tools clearly |
Each plate measures approximately 600×450 mm and uses 10 mm square holes on 20 mm centers. This hole pattern is common in automotive tool storage, so you can use hooks from multiple suppliers or transfer existing hooks from other equipment.
Hook Types for Automotive Applications
The HN-HAR7 includes a starter set of hooks, but you can add more as needed:
| Hook Type | Automotive Use |
|---|---|
| Single straight hook | Wrenches, screwdrivers, pry bars |
| Double straight hook | Multiple similar tools in one location |
| J-hook | Air hose, extension cords, pullers |
| Tool-specific holder | Socket rails, pliers racks, hammer holders |
| Bin bracket | Small parts bins for fasteners |
| Shelf bracket | Mount small shelves for phones or parts |
All hooks are zinc-plated for corrosion resistance and include protective tips to prevent tool damage.
Utility Tray: Daily Use Work Surface
The Tray You'll Use Every Shift
Every mechanic needs somewhere to put things temporarily. The HN-HAR7 includes a large utility tray positioned at comfortable working height – approximately 900 mm from the floor.
| Tray Specification | Detail |
|---|---|
| Dimensions | 600×400 mm |
| Material | Cold-rolled steel, 1.5 mm |
| Edge height | 25 mm raised lip |
| Surface | Smooth powder coat |
| Load capacity | 50 kg |
The raised lip keeps small items from rolling off. The smooth surface wipes clean easily – important when dealing with grease, oil, and shop chemicals. The tray is mounted to the frame with adjustable brackets, so you can raise or lower it to suit your preference.
What Goes in the Tray
The utility tray serves multiple purposes throughout the day:
Temporary holding area for tools in use
Parts tray during disassembly
Phone or tablet location for accessing repair manuals
Clipboard holder for work orders
Coffee cup spot during morning meetings
In busy shops, that 600×400 mm area gets used constantly. The heavy-gauge steel construction means it won't sag or bend, even when loaded with brake rotors or transmission parts.
Frame Construction: Built for Shop Life
Material That Handles the Weight
Auto repair tools are heavy. Air tools, breaker bars, pullers, and diagnostic equipment add up quickly. The HN-HAR7 frame uses 30×60 mm rectangular steel tubing – the same material used in industrial shelving systems.
All connections are reinforced:
Corner gussets: Triangular steel plates welded at all frame corners
Cross-bracing: Diagonal supports prevent racking during movement
Base reinforcement: Double-thick steel at caster mounting points
Screw connections: Enlarged Grade 8.8 hardware throughout
The result is a frame that maintains its shape even after years of rolling across shop floors, over threshold strips, and through the occasional bump.
Bottom Shelf for Heavy Items
Below the utility tray sits a thickened bottom shelf made from 2.0 mm cold-rolled steel. This shelf handles the heavy items that don't belong on hanging panels:
| Bottom Shelf Use | Typical Items |
|---|---|
| Power tools | Impact wrenches, grinders, drills |
| Cases | Tool boxes, diagnostic scanners |
| Fluids | Oil bottles, cleaners (in sealed containers) |
| Large tools | Brake lathe parts, transmission jacks |
The shelf is positioned 200 mm from the floor – high enough to clear most floor debris but low enough to maintain a low center of gravity. Edges are folded for rigidity and safety, with no sharp corners.
Mobility in Tight Shop Spaces
75 mm Polyurethane Casters
Houston auto shops vary from spacious dealership service bays to tight independent garages. The HN-HAR7 navigates them all on 75 mm polyurethane casters:
| Position | Type | Brake | Load Rating |
|---|---|---|---|
| Front (2) | Swivel | Yes | 150 kg each |
| Rear (2) | Fixed | No | 150 kg each |
Polyurethane wheels offer the right combination for shop floors:
Won't mark epoxy or sealed concrete
Roll easily over debris
Quiet – no metal-wheel noise
Resist oil and shop chemicals
The two swivel casters include total-lock brakes. When you park the cart next to a vehicle, engage the brakes and it stays put – even when you're leaning into it to remove a stubborn bolt.
Maneuverability Features
The HN-HAR7 is sized to move through standard shop aisles:
Overall width: 990 mm (fits through standard doorways)
Overall depth: 960 mm
Turning radius: 1200 mm (can spin in place)
The double-sided handle lets you push or pull from either end – useful when maneuvering in tight spaces. The handle is positioned at comfortable push height (950 mm) and includes grip areas on both sides.

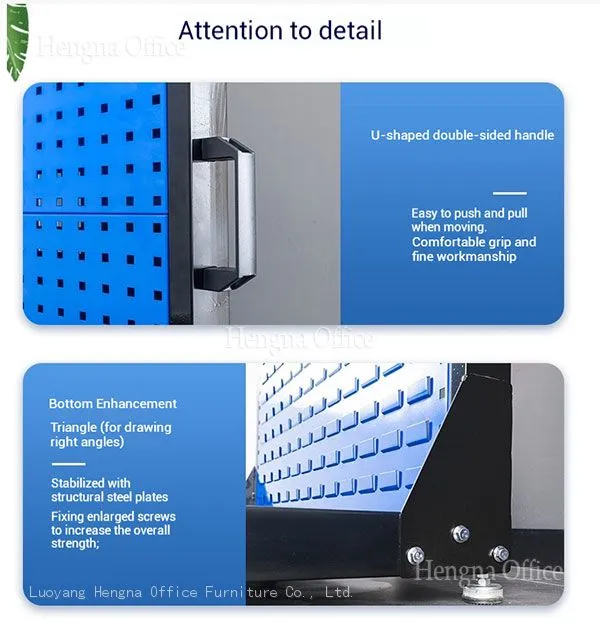

Handle Design
Moving a loaded cart shouldn't strain your back. The U-shaped handle:
Is welded directly to the frame (no bolts to loosen)
Provides push/pull points on both sides
Includes smooth grip areas
Positions at ergonomic height for most mechanics
For extra leverage when moving over thresholds or uneven floors, you can push from the end rather than the side.
Fixed or Mobile: Your Choice
Mobility Options
Not every shop needs full mobility for every cart. The HN-HAR7 can be configured several ways:
| Configuration | Best For |
|---|---|
| 4 swivel casters | Maximum maneuverability in tight spaces |
| 2 swivel + 2 fixed | Straight-line tracking, stable movement |
| 4 casters with brakes | Applications needing parking security |
| 2 casters + 2 feet | Semi-permanent placement, occasional moves |
| All feet, no casters | Permanent workstation installation |
Feet (when used) are adjustable leveling feet with protective plastic covers – they can be raised or lowered to compensate for uneven floors.

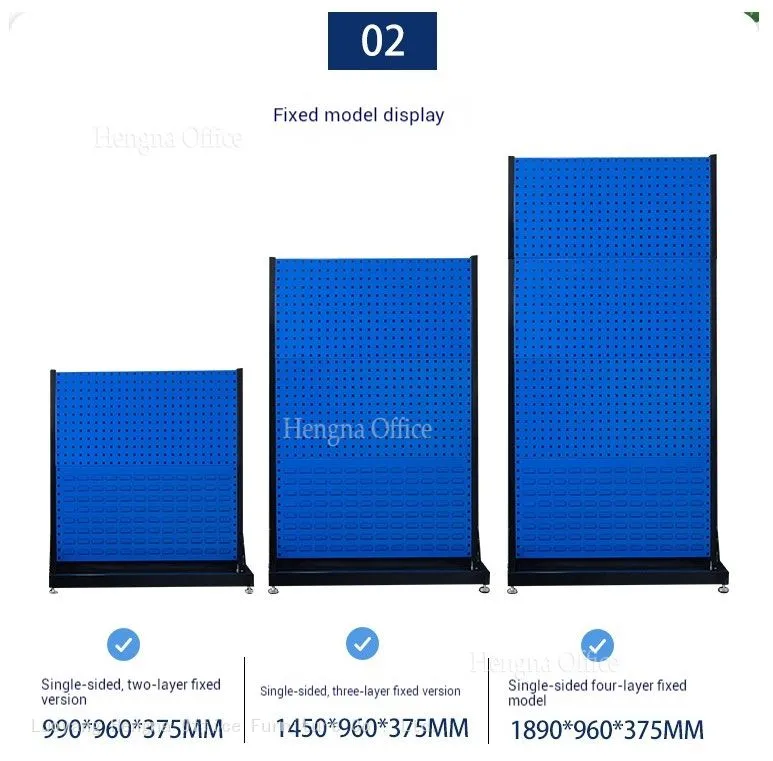

Optional Fixed Installation
For shops that want some carts permanently positioned but still movable during reconfiguration, the two-caster + two-feet option works well. The cart rolls on casters when you need to move it, but sits solidly on feet during daily use.
The adjustable feet provide ±15 mm of leveling – enough to handle most floor variations. Once adjusted, the cart won't roll around when technicians lean against it.
Technical Specifications
| Specification | HN-HAR7 Standard Model |
|---|---|
| Overall dimensions (W×D×H) | 990×960×375 mm |
| Frame material | Cold-rolled steel tube, 30×60 mm, 1.5 mm wall |
| Square hole panels | Cold-rolled steel, 1.2 mm, 10 mm square holes |
| Utility tray | Cold-rolled steel, 1.5 mm, 600×400 mm |
| Bottom shelf | Cold-rolled steel, 2.0 mm, full-width |
| Finish | Powder coated – blue frame, black panels |
| Casters | 75 mm PU, 2 swivel with brake, 2 fixed |
| Load capacity (total) | 300 kg distributed |
| Weight (empty) | 58 kg |
| Included accessories | 12 assorted hooks, 4 bin brackets |
| Assembly required | Yes, basic tools, 15-20 minutes |
| Country of origin | China |
| Manufacturer | Luoyang Hengna Office Furniture Co., Ltd. |
Applications in Houston Auto Repair
Where the HN-HAR7 Fits
Houston's diverse auto repair industry means different shops use the cart differently:
General repair shops:
Central tool station for multiple bays
Organize common tools everyone needs
Mobile so it moves to the vehicle being serviced
Specialty shops (transmission, brake, engine):
Dedicated tool sets for specific work
Square hole panels hold specialized tools
Utility tray holds diagnostic equipment
Quick-lube operations:
Organize filter wrenches, oil tools, drain plugs
Mobile between lift bays
Easy-clean surfaces handle inevitable spills
Dealership service departments:
Technician-assigned tool storage
Move between workstations as needed
Professional appearance matches shop standards
Mobile mechanics:
Transport tools to customer locations
Everything visible and accessible
Compact enough for van or trailer storage
Comparison: Square Hole vs. Louvered vs. Pegboard
| Feature | Square Hole (HN-HAR7) | Louvered | Round Pegboard |
|---|---|---|---|
| Hook security | High – hooks lock in place | Very high – positive clip | Low – hooks fall out |
| Tool compatibility | Excellent for automotive | Good for bins | Fair for light tools |
| Hook variety | Wide range available | Limited to louver accessories | Universal but loose |
| Load capacity | High (10 kg per hook) | Medium | Low (2-3 kg per hook) |
| Visibility | Open view of tools | Partially obscured by bins | Open view |
| Cleaning | Easy – open design | Moderate – bins must be removed | Easy |
| Cost | Moderate | Higher | Lower |
For auto repair applications, square hole offers the best balance of hook security, load capacity, and tool visibility.
Accessories and Expansion
Available Add-Ons
The HN-HAR7 accepts a growing range of accessories:
Storage accessories:
Additional square hole panels
Side-mounted bins (louvered style, adapters available)
Magnetic strips for small metal parts
Paper towel holder
Trash bag bracket
Tool-specific holders:
Socket rails (mount vertically or horizontally)
Wrench organizers (individual slots)
Screwdriver racks (keeps tips visible)
Air tool holsters
Ratchet holders
Work surface additions:
Flip-up extension table
Keyboard tray (for diagnostic computers)
Parts washer mounting bracket
Safety items:
Fire extinguisher mount
Eye wash station bracket
Warning light mount
Contact us for the current accessory catalog – we add new items regularly based on customer requests.
Durability Features for Shop Life
Details That Matter
Small design choices add up to a cart that lasts:
Reinforced corners: All panel corners are reinforced to prevent bending when tools are hung.
Deburred edges: Every hole and cut edge is deburred during manufacturing – no sharp edges to cut hands or snag gloves.
Protective covers: Plastic corner guards protect door frames and prevent injury.
Enlarged screw heads: Washers at all connection points prevent pull-through.
Welded handle: The push handle is welded, not bolted – won't loosen over time.
Zinc-plated hardware: All screws and bolts are zinc-plated for corrosion resistance.
Cleaning and Maintenance
Auto repair is dirty work. The HN-HAR7 is designed for easy cleaning:
Smooth powder-coated surfaces wipe clean
Open panel design doesn't trap dirt
Casters can be hosed off (avoid direct spray on bearings)
All hardware is accessible for tightening
For heavy grease buildup, standard degreasers won't damage the powder coating. Avoid abrasive cleaners that might scratch the surface.
Frequently Asked Questions
Q: Will this cart hold heavy air tools like 1/2-inch impact wrenches?
A: Yes. Each hook is rated for 10 kg (22 lbs), which covers most air tools. For heavier items like breaker bars or pneumatic hammers, use two hooks or position them on the bottom shelf. The bottom shelf itself is rated for 100 kg, so you can store multiple heavy tools there. The frame's total capacity is 300 kg – more than enough for a full set of automotive tools.
Q: Can I add drawers or closed storage to this cart?
A: The standard HN-HAR7 is an open-design cart. However, we offer bolt-on drawer modules that attach to the frame sides or bottom. These are available in various sizes and include full-extension ball-bearing slides. For shops requiring lockable storage, we also offer locking cabinet bases that replace the bottom shelf. Contact our sales team for current drawer and cabinet options.
Q: How does this compare to a traditional roller cabinet tool box?
A: Traditional roller cabinets excel at secure, enclosed storage. The HN-HAR7 excels at immediate tool access and mobility. Many Houston shops use both – a roller cabinet for backup storage and the HN-HAR7 for the tools used daily. The cart's open design means tools are visible and reachable without opening drawers. For jobs requiring frequent tool changes, the cart saves significant time over walking back and forth to a tool box.
The contact information of the sales manager is shown in the picture below. You can make inquiries directly without waiting.
