The HN-PAF6 Portable Tool Hanging Rack is designed specifically for these demanding environments. Built around a double-sided louvered panel system, this mobile cart gives aerospace technicians immediate access to precision tools while maintaining the strict organization required by FAA regulations and company quality systems. Every tool has its place, every part is visible, and the entire unit moves smoothly through hangar environments.
Why Louvered Panels for Aerospace MRO?
The Louver Advantage
Most tool storage uses pegboard or square hole panels. The HN-PAF6 takes a different approach with full-height louvered panels on both sides. Louvers are horizontal channels formed into the steel sheet that accept specially designed clips and brackets.
| Feature | Louvered Panel Benefit for Aerospace |
|---|---|
| Positive locking | Accessories clip in securely – won't fall out during movement |
| No tools required | Bins and holders snap in and out by hand for quick reconfiguration |
| High load capacity | Each louver supports more weight than a pegboard hole |
| Clean appearance | No loose hooks rattling around – everything looks professional |
| Bin compatibility | Accepts standard louver bins for small parts organization |
In aerospace MRO, where tools and parts are constantly moving between workbenches and aircraft, the positive locking feature is critical. Standard pegboard hooks can work loose when the cart is rolled across hangar floors. Louver-mounted accessories stay put until you intentionally remove them.

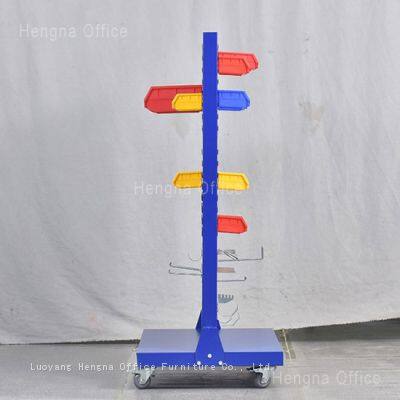

Bin Organization for Small Parts
Aerospace work involves countless small components – specialty fasteners, terminals, shims, washers, and electrical connectors. The HN-PAF6's louvered panels accept snap-in plastic bins in multiple sizes:
| Bin Size (mm) | Typical Aerospace Use | Quantity per Panel (full height) |
|---|---|---|
| 75×100×50 | Tiny fasteners, electrical pins, set screws | 24 |
| 105×150×75 | Common fasteners, small brackets, terminals | 16 |
| 150×200×100 | Medium components, hand tools, test leads | 8 |
| 200×300×120 | Larger parts, inspection equipment, manuals | 4 |
Bins are transparent polypropylene – you can see contents at a glance without opening or pulling them out. This saves time during tool and part retrieval and helps maintain organization between shifts.

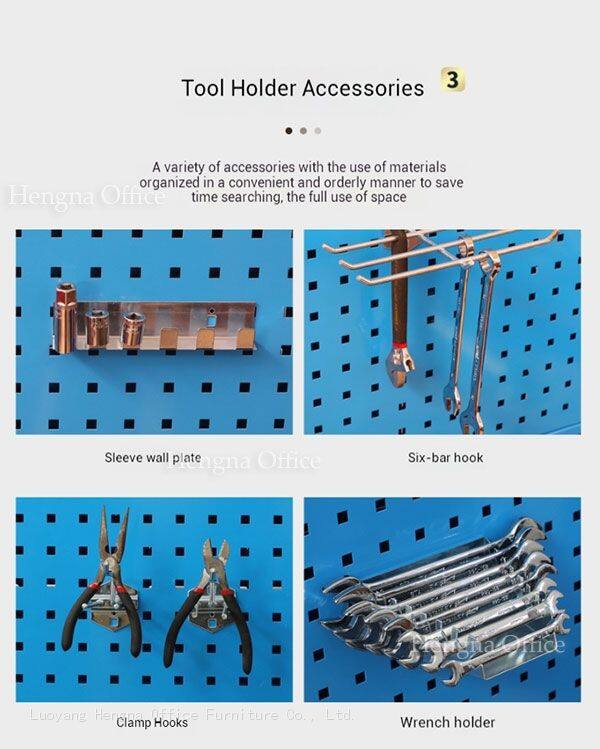

Tool Holding Accessories
Beyond bins, the louvered system accepts a wide range of tool holders:
| Accessory | Application |
|---|---|
| Single tool holder | Screwdrivers, pliers, cutters |
| Multi-tool rack | Multiple similar tools in one location |
| J-hook | Cords, hoses, looped tools |
| Shelf bracket | Small shelves for phones or parts |
| Label holder | Bin and tool identification |
| Document pocket | Work instructions, checklists |
All accessories are zinc-plated for corrosion resistance and include the appropriate clips for louver mounting.
Double-Sided Design: Maximizing Hangar Floor Efficiency
Two Workstations in One
Hangar space is expensive. The double-sided design of the HN-PAF6 gives you two full-size workstations in a single floor footprint:
Side A: Organize tools for current task – torque wrenches, inspection mirrors, borescopes
Side B: Stage parts and components for next task
Simultaneous access: Two technicians can work from opposite sides without interference
Task separation: Keep clean inspection tools separate from installation tools
Each side provides approximately 0.8 square meters of usable storage space – plenty for a full set of MRO tools.
Visual Management for Audits
Aerospace facilities face regular audits from customers and regulators. The HN-PAF6 supports visual management practices that make audits smoother:
Clear organization: Everything visible at a glance
Labeling: Integrated label holders identify contents
Shadowing: Optional tool outlines show missing items immediately
Consistent layouts: Standardize cart configurations across shifts
When an auditor walks through and sees organized, labeled, shadowed tools, they gain confidence in your quality systems. The HN-PAF6 helps you present that professional image.
Construction for Clean Hangar Environments
Material Selection
The HN-PAF6 uses cold-rolled steel sheet throughout, with thickness matched to application:
| Component | Material | Thickness | Finish |
|---|---|---|---|
| Frame columns | Cold-rolled steel tube | 1.5 mm wall | Powder coated |
| Louvered panels | Cold-rolled steel sheet | 1.2 mm | Powder coated |
| Bottom shelf | Cold-rolled steel sheet | 2.0 mm | Powder coated |
| Hardware | Zinc-plated steel | Grade 8.8 | Clear zinc |
The powder coating provides a smooth, easy-to-clean surface that resists the fluids encountered in aerospace MRO – hydraulic fluid, jet fuel (with prompt cleaning), cleaning solvents, and de-icing chemicals.
Cleanroom Compatibility
While not certified as cleanroom equipment, the HN-PAF6's design makes it suitable for controlled environments:
Smooth surfaces: No cracks or crevices to trap contaminants
Easy cleaning: Wipe down with appropriate solvents
Minimal particle generation: Powder coating doesn't flake
Non-shedding casters: Polyurethane wheels don't leave marks or debris
For facilities requiring stricter cleanroom compliance, we offer optional stainless steel construction with electropolished finish.
Reinforced Base
The base of the HN-PAF6 is reinforced to handle the rigors of hangar movement:
2.5 mm thick base plate at caster mounting points
Triangular gussets at all corners prevent racking
Continuous welding of base frame members
Cross-bracing distributes loads evenly
This reinforcement ensures the cart maintains its shape even after years of rolling across hangar floors, over threshold strips, and through the occasional bump.
Mobility in Hangar Environments
100 mm Polyurethane Casters
Aerospace hangars involve large distances – from tool crib to aircraft, between work stands, to inspection areas. The HN-PAF6 rolls on 100 mm polyurethane casters that cover these distances efficiently:
| Position | Type | Brake | Load Rating |
|---|---|---|---|
| Front (2) | Swivel | Yes | 200 kg each |
| Rear (2) | Fixed | No | 200 kg each |
The larger diameter (compared to 75 mm casters) means:
Easier rolling over hangar floor joints
Better clearance for debris and thresholds
Lower rolling resistance – less effort to push
Smoother ride for sensitive instruments
Brake System
Two swivel casters include total-lock brakes that secure both wheel rotation and swivel action. When parked next to an aircraft, engage the brakes and the cart stays put – even when technicians lean on it or pull against tools.
Brake features:
Foot pedal activation – easy with work boots
Positive lock – you can feel and hear engagement
Release on opposite side of pedal
200 kg holding force per brake

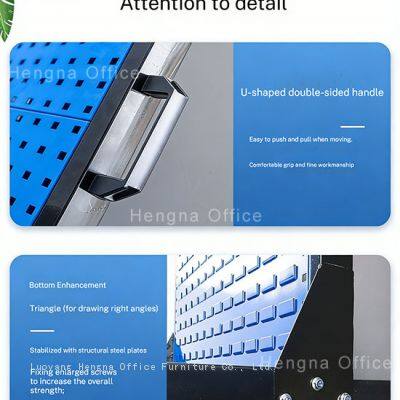

Handle Design
Moving the HN-PAF6 is effortless thanks to the U-shaped double-sided handle:
Handle height: 950 mm from floor – ergonomic for most technicians
Grip area: Smooth powder coat, no sharp edges
Attachment: Welded directly to frame – won't loosen
Access: Push or pull from either end
In tight spaces around aircraft, the ability to push from either end without turning the cart around saves time and reduces maneuvering.

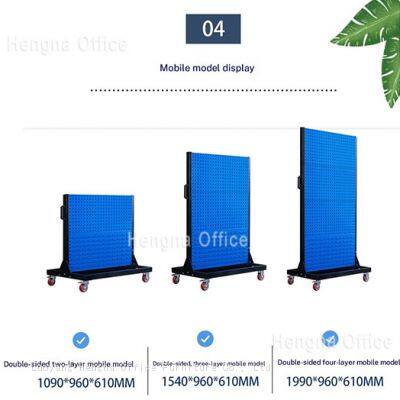

Technical Specifications
| Specification | HN-PAF6 Standard Model |
|---|---|
| Overall dimensions (W×D×H) | 1090×610×375 mm |
| Frame material | Cold-rolled steel tube, 30×60 mm |
| Louvered panels | Cold-rolled steel |
| Bottom shelf | Cold-rolled steel, |
| Finish | Powder coated – blue frame, gray panels |
| Casters | 100 mm PU, 2 swivel with brake, 2 fixed |
| Load capacity (total) | 350 kg |
| Weight (empty) | 62 kg |
| Included accessories | 16 assorted bins, 8 tool holders, 4 label holders |
| Assembly required | Yes, basic tools, 15-20 minutes |
| Warranty | 3 years |
| Country of origin | China |
| Manufacturer | Luoyang Hengna Office Furniture Co., Ltd. |
Aerospace MRO Applications
Where the HN-PAF6 Fits
Phoenix aerospace facilities use the HN-PAF6 in multiple roles:
Line maintenance:
Organize tools for overnight checks
Mobile between aircraft on the ramp
Quick access to common tools
Heavy maintenance:
Stage tools for specific tasks (engine, landing gear, avionics)
Move with the aircraft through maintenance bays
Organize by ATA chapter for efficient workflow
Component repair:
Specialized tools for specific components
Bins for small parts and fasteners
Mobile between repair stations
NDT/Inspection:
Hold inspection equipment, borescopes, NDT supplies
Clean, organized presentation for audit readiness
Move to aircraft as needed
Tool crib:
Issue tools to technicians on carts
Shadow boards show what's checked out
Mobile to different hangar areas
Back shops:
Organize tools for wheel and brake shops
Battery maintenance tools
Composite repair supplies
Comparison: Louvered vs. Other Panel Types
| Feature | Louvered (HN-PAF6) | Square Hole | Round Pegboard |
|---|---|---|---|
| Accessory security | Excellent – positive clip | Good – mechanical lock | Poor – friction only |
| Bin compatibility | Excellent – standard louver bins | Poor – requires adapters | Fair – special bins needed |
| Tool holder variety | Good | Excellent | Good |
| Load capacity | High (10 kg per location) | High (10 kg per hook) | Low (2-3 kg per hook) |
| Appearance | Clean, professional | Industrial | Basic |
| Cleaning | Moderate (bins remove) | Easy | Easy |
| Cost | Higher | Moderate | Lower |
For aerospace MRO applications, the louvered system's superior accessory security and bin compatibility make it the preferred choice. The ability to use snap-in bins for small parts is particularly valuable.
Optional Accessories for Aerospace
Specialized Add-Ons
Beyond standard accessories, we offer options specifically useful in aerospace MRO:
Documentation holders:
Clear acrylic pockets for work cards
Clipboards for paperwork
Tablet holders for electronic manuals
Tool control:
Shadow foam inserts (laser-cut to your tools)
Foam tool organizers for drawers (if equipped)
Tool tracking system compatible (barcode/QR code mounting)
Safety items:
Fire extinguisher mount
Eye wash station bracket
Warning light mount
Grounding chain for ESD control
Work surface:
Flip-up extension table
Cutting mat surface
Stainless steel top for chemical resistance
Lighting:
LED work light mounting bracket
Magnifying lamp mount
Task light with flexible arm
Power:
Power strip with surge protection
USB charging ports
Battery charger mounting
Customization for Your Operation
Factory-Direct Options
As a manufacturer, we can adapt the HN-PAF6 to your specific requirements:
Size modifications:
Adjust height for specific work positions
Custom width to fit existing layouts
Additional shelf levels
Material upgrades:
Stainless steel for corrosive environments
100% galvanized frame
ESD-safe configuration
Color matching:
Match corporate or facility colors
Safety colors for designated areas
High-visibility options
Special features:
Locking drawer modules
Cabinet base with doors
Integrated work surface
Custom shadow boards
Frequently Asked Questions
Q: Will the bins fall out when moving the cart across hangar floors?
A: No. The louvered panel system uses a positive-lock mechanism – bins must be lifted slightly to remove them. Standard movement, even over hangar floor joints or threshold strips, won't dislodge properly installed bins. We've tested this with fully loaded carts over typical industrial floors. For extra security with very heavy items, we recommend positioning them on the bottom shelf rather than high on the panels.
Q: Can this cart be used in ESD-sensitive areas around avionics?
A: The standard model has a powder-coated surface, which is insulating. If you're working with sensitive avionics, we recommend our ESD-safe option with conductive casters and a grounding chain. This configuration allows static charges to dissipate to the floor. The frame can also be hard-grounded if required. Please specify ESD requirements when ordering.
Q: How do I comply with tool control requirements using this cart?
A: The HN-PAF6 supports several common tool control methods:
Shadow foam: Custom laser-cut foam inserts with tool outlines. Missing tools are immediately visible.
Tool lists: Laminated tool lists attached to the cart with check-in/check-out columns.
Barcode tracking: Mount barcode labels on the cart and scan tools in/out.
Visual management: Color-coded tool holders and labeled locations.
We recommend shadow foam for the highest level of control and audit readiness. Contact us with your tool list for a quote on custom foam inserts.
