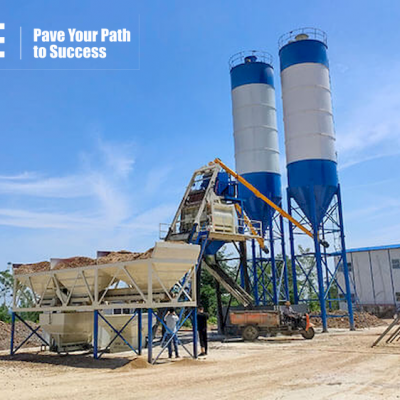

ACE Group HCP25 25m³/h Compact Concrete Mixing Plant for Urban Construction & UHPC
Product Spotlights
Highlights: Patent vibration mixer, efficient and homogeneous mixing performance, increase cement utilization rate, concrete strength, workability and service life, Produce ultra high performance concrete(UHPC)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Concrete Mixing Plant
Certification:
ISO9001: 2000, CE
Warranty:
3 years
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao/shanghai
Delivery Detail:
15 days
Related Products
-
Stationary Asphalt Mixing Plants Are Used For Road Construction Featuring Precise Weighing Of Aggregates Asphalt Batch Mix PlantNegotiableMOQ: 1 Set -
ACE Group IAM80 Model 60-100t/h Mobile Asphalt Plant Intelligent Precision for Highway MaintenanceNegotiableMOQ: 1 Set
-
ACE Group IAM 120 Model 100-140t/h Super Mobile Asphalt Mixing Plant High Output for Highway ExpansionNegotiableMOQ: 1 Set
-
ACE Group IAM80 Model 60-100t/h Super Mobile Asphalt Mixer Fast Assembly for Remote Pavement RepairNegotiableMOQ: 1 Set
-
ACE Group 120 Model 100-140t/h Mobile Asphalt Plant Flexible Transition for Airport Runway ConstructionNegotiableMOQ: 1 Set
Type
Concrete Mixing Plant
Certification
ISO9001: 2000, CE
Warranty
3 years
Color
Other, Customizable
Productivity
Other, 25m³/h
After-sales Service
We will send professional technicians to your location
Condition
NEW
Model
HCP25
Production Capacity
25 m³/h
Product Type
HCP series Concrete Mixing Plant
Highlights
Patent vibration mixer
Logo
Customizable
Transport Package
Customizable
Specification
HCP25
Trademark
ACE Group
Origin
China
Brief Introduction
HCP series concrete mixing plant is an ideal choice for producing commercial concrete and large-scale precast concrete for customers. If required, It can adopt a vibration mixer to uniformly distribute materials, largely improving concrete strength, interface adhesion and workability.
Model: HCP25 ~ HCP150
Capacity: 25 m³/h ~ 150 m³/h
Highlights: Patent vibration mixer, efficient and homogeneous mixing performance, increase cement utilization rate, concrete strength, workability and service life, Produce ultra high performance concrete(UHPC)
Scope of Application
HCP series concrete mixing plant has been developed and produced to manufacture plastic concrete, dry hard concrete, etc. It outperforms other concrete mixing plants due to the vibration mixer that adopts our patent technology. With impressive efficient performance, it's increasingly applied in big or medium building projects, road and bridge projects, etc, home and abroad.
Technical Parameters
| Model | HCP25 |
| Capacity | 25m³/h |
| Mixer Capacity | 0.5m³ |
| Additive Feeder Capacity | 1×50t |
| Discharge Height | 3,800mm |
| Aggregate Feeder Capacity | 2×4m³ |
| Max Aggregate Size | 40/60mm |
| Aggregate Weighing Precision | ±2% |
| Cement Weighing Precision | ±1% |
| Fly Ash Weighing Precision | ±1% |
| Water Weighing Precision | ±1% |
| Additive Weighing Precision | ±1% |
| Installed Power | 96kW |
