Brief Introduction

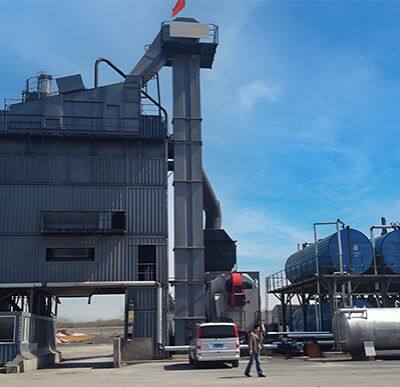

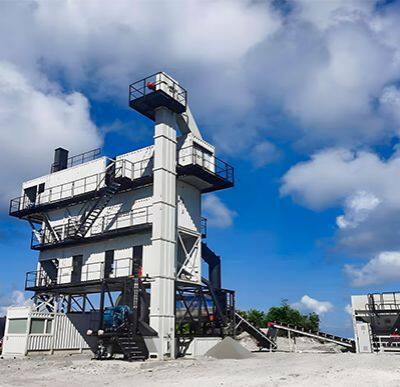

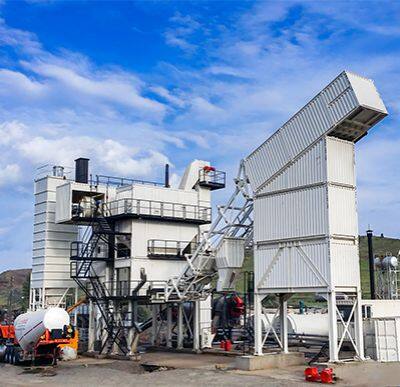

A Containerized Asphalt Mixing Plant is a portable asphalt batching plant with a modular design, featuring convenient transportation, quick installation, and flexibility. It can effectively mix various asphalt mixtures with cold aggregate feeding system, drying system, screening and mixing system, dust collecting system, and control system through intelligent operation.
CFB series Containerized Asphalt Mixing Plant offers a variety of production capacity models to meet diverse customer needs. The containerized design of this kind of asphalt mixing plants makes them highly user-friendly on different sites. It provides convenience for road construction while reducing transportation and installation costs.
Model: CFB400
Product Capacity: 400t/h
Highlights: 1. Containerized, easy transportation; 2. Foundation-free, quick installation; 3. Accurate weighing, batch mix, high-quality outputs; 4. Long service life, high resale value
Advantages of Container Asphalt Plants
A high-efficiency and high-capacity feature characterizes the containerized asphalt mixing plant. The CFB series containerized asphalt mixing plant eliminates the need for packaging, allowing easy transportation, and ensuring convenience and speed.
1.Foundation-Free
Containerized design, CFB series containerized batching plant main building without foundation, quick installation and disassembly
2.BV Classification Society Certification
Certified by BV Classification Society, ensuring safety and reliability
3.German Screening Technology
The vibration screening technology with a 110-year history originating from Germany is characterized by efficient screening, low energy consumption, and durability
4.Dust Emission ＜20mg/μm³
Dual-stage dust collector, dust emission in exhaust ＜20mg/μm³, environmentally-friendly
5.Safety Interlock Device
The built-in staircase and safety interlock device provide excellent protection for the personal safety of maintenance operators
6.High Resale Value
Internationally renowned brand components within the container minimize wear and tear and ensure a long service life, maintaining a high resale value
Technical Parameters
| Model | CFB400 |
| Production capacity(t/h) | 400 |
| Total Power(kW) | 810 |
| Cold Aggregate Feeders (m³) | 6*18 |
| Drying Drum (mm) | 11000 x 2700 |
| Hot Aggregate Storage Bins (m³) | 70 |
| Hot Aggregate Weighing Sensor(kg) | 4000 |
| Filler Weighing Sensor(kg) | 600 |
| Bitumen Weighing Sensor(kg) | 600 |
| Mixer Capacity (kg) | 5500 |
| Bag-house Dust Collector Filtering Area (m²) | 1132 |
| Filler Silo (m³) | 75 |
