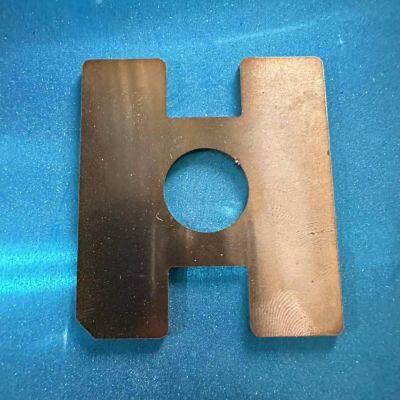

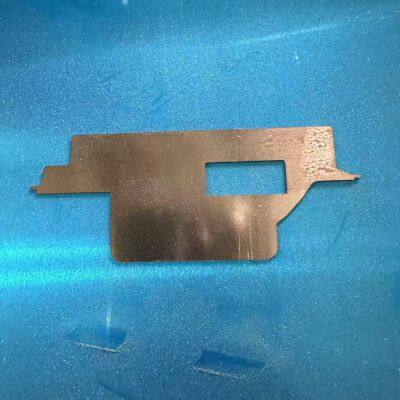

Help Centert2 Red Copper Laser Cutting | Copper Busbars for Distribution Cabinets / Conductive Sheets With Integrated Slotting and Bending Processing
Related Products
-
Laser-cut Triangular Brackets | for Building Curtain Walls / Equipment Support, Thickened Plate ProcessingNegotiableMOQ: 0 -
Cutting of 316 Stainless Steel Special-shaped Parts | Flanges/filter Screens for Chemical Equipment, Corrosion-resistant ProcessingNegotiableMOQ: 0
-
304 Stainless Steel Laser Cutting | Customized Shelf Brackets / Chassis Enclosures With Right Angles / Round HolesNegotiableMOQ: 0 Kilogram
-
316 Stainless Steel Laser-cut U-shaped Card Slot, Profile Cutting and BendingNegotiableMOQ: 0
-
Laser-cut and Hollowed-out Filter Mesh With High-precision HolesNegotiableMOQ: 0
T2 Red Copper Laser Cutting | One-stop Processing of Slotting and Bending for Copper Busbars/Conductive Sheets in Power Distribution Cabinets
Hey, friends! Today, let's talk about those "unremarkable" but extremely important parts in power distribution cabinets - copper busbars and conductive sheets. To be honest, when many customers came to us for this service before, they all complained that "copper is difficult to cut", "it's easy to deform", and "the precision is not high enough". Today, I'll share with you how T2 red copper laser cutting solves these problems.
1. What exactly is T2 red copper?
T2 red copper is actually red copper with a purity as high as 99.9%. Its electrical conductivity is quite excellent - the conductivity can reach over 98%, which is better than that of ordinary brass and bronze. Therefore, it is widely used in power distribution, industrial automation, and new energy fields.
To put it simply, T2 red copper has the following characteristics:
Excellent electrical conductivity: Low resistance and high current transmission efficiency
Good thermal conductivity: Fast heat dissipation and not easy to heat up
Strong plasticity: Easy to process into various shapes
Corrosion resistance: Long service life
2. Why is it a must for copper busbars in power distribution cabinets?
In power distribution cabinets, copper busbars are equivalent to the "highways" for current. They undertake the important tasks of distributing current and protecting circuits, and have extremely high requirements for electrical conductivity and current-carrying capacity. T2 red copper just meets these requirements, so it has become the material for copper busbars in power distribution cabinets.
However, traditional processing methods have many drawbacks:
| Problems with traditional processes | Advantages of laser cutting |
|---|---|
| Expensive stamping dies | No need for die opening, direct cutting from CAD drawings |
| Prone to burrs | Smooth cut, basically no burrs |
| Low precision | Cutting precision of ±0.05mm |
| Large heat-affected zone | Small heat-affected zone, no deformation |
3. Is it difficult to laser cut T2 red copper?
To be honest, red copper is a bit more difficult to cut than aluminum alloy because it has a high reflectivity, and ordinary lasers are prone to "rebound". But the high-power fiber laser cutting machine we use is specially optimized for highly reflective materials and can definitely handle it!
✅ Good cutting effect: The cut is smooth and free of slag.
✅ High precision: The minimum line width is 0.1mm, and complex shapes can be easily cut.
✅ Small thermal deformation: Special water-cooled fixtures prevent thin plates from deforming.
✅ Integrated slotting and bending: One-time forming, eliminating multiple processes.
4. Integrated slotting and bending processing of conductive sheets is so great!
Previously, many customers had to cut, slot, and then bend conductive sheets, running to several factories, which was very troublesome! Now, our laser cutting + slotting + bending can be completed in one go, maximizing efficiency!
Advantages of integrated processing:
The dimensions are more accurate, and the bending angle error is ≤±1°.
Accumulated errors caused by multiple clampings are avoided.
Delivery is faster. What used to take a week can now be completed in 3 days.
The cost is lower, saving on transportation back and forth and multiple processing fees.
5. What products can we make?
We mainly accept the following types of orders:
Copper busbars for power distribution cabinets: Connection bars, busbars, and bus ducts.
Conductive/connection sheets: For new energy vehicles, energy storage power stations, and frequency converters.
Copper terminals: Various electrical connectors.
Special-shaped copper parts: Non-standard customization can be done as long as there is a drawing.
The thickness range is from 0.5mm to 6mm, and the maximum length can reach 3 meters.
6. Our service guarantee
After years of laser cutting, we have summarized the points that customers care about the most:
| Service item | Our commitment |
|---|---|
| Sample making | Free sample making, samples available within 24 hours. |
| Precision | ±0.05mm, strict quality inspection. |
| Production capacity | Batch orders will be delivered in 3 - 5 days. |
| Urgent orders | Urgent response within 48 hours. |
| Supporting services | Post-processing such as surface treatment and welding can be provided. |
7. Quick Answers to Common Questions
Q: Will there be burrs when cutting red copper?
A: Our fiber laser machine is used in conjunction with auxiliary gas, resulting in very few burrs. Generally, secondary grinding is not required.
Q: Can the price be more favorable for large - scale production?
A: Of course! The larger the quantity, the better the price. The specific quotation depends on the material thickness, size, and quantity. Welcome to send us drawings for a quote.
Q: Can you guarantee the accuracy?
A: Each cut piece is inspected by a coordinate measuring machine. If the size does not meet the standard, we will redo it immediately!
8. Summary
If you are looking for a factory for T2 red copper laser cutting, especially for tasks such as slotting and bending copper bars for power distribution cabinets and conductive sheets, you may as well try our services.
In a nutshell: High precision, no need for molds, fast delivery. We offer one - stop service to handle all your copper part processing needs!
Want to know more? Click on the avatar to send a private message or leave a comment in the comment section to get a free solution and quote! Looking forward to cooperating with you～
