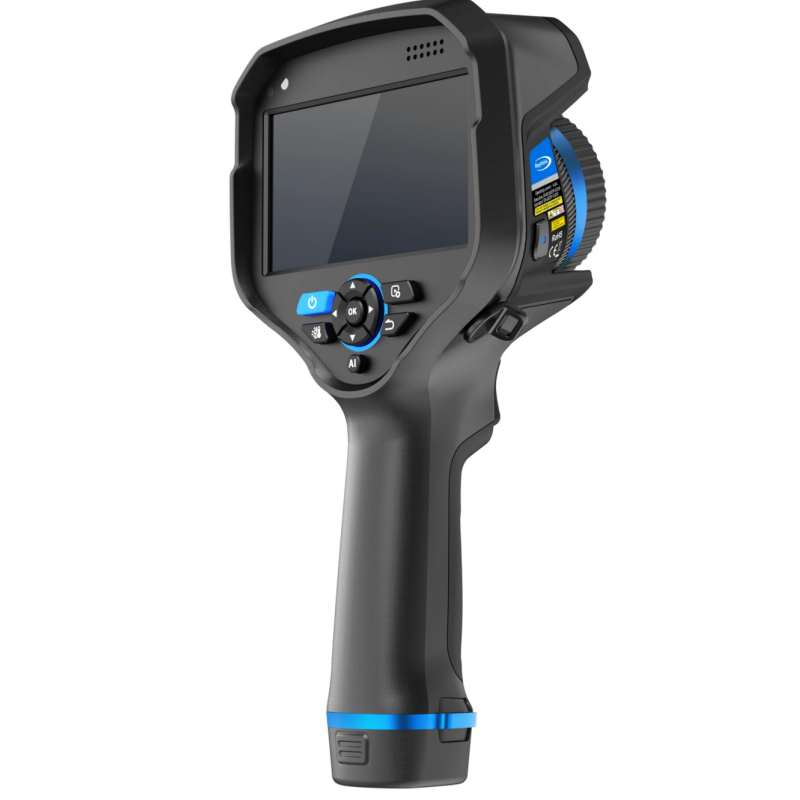

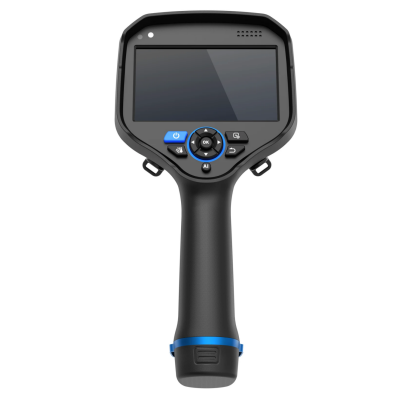

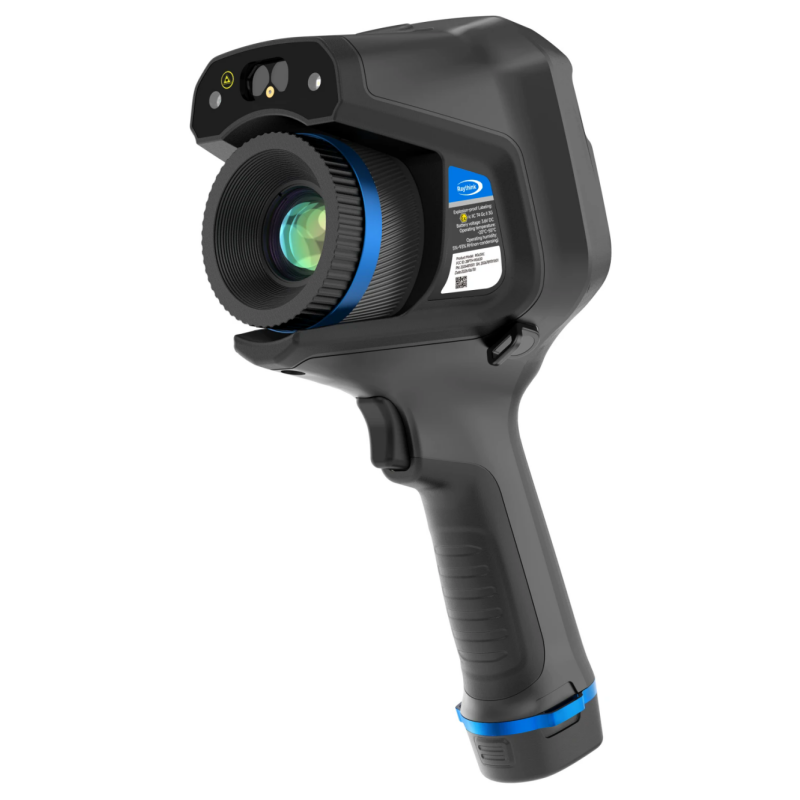

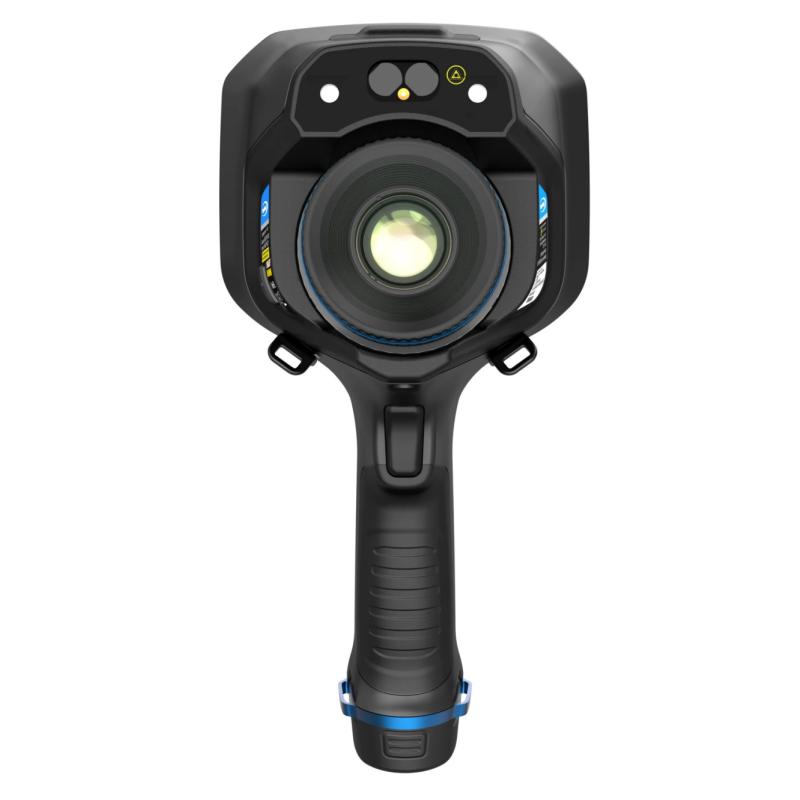

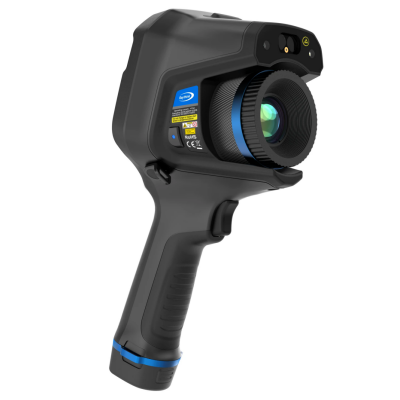

RG630F OGI Handheld Camera Powered by advanced infrared gas imaging and AI algorithms, RG630 enables non-contact, visual detection and alarm for dozens of gases, including CH4, NH3, Freon and SF6. Equipped with a customized band-pass filter and a high-resolution, high-sensitivity uncooled VOx detector, it also supports daily temperature measure ment. Designed for gas safety, emission management and equip ment maintenance, RG630 is ideal for oil, gas, petrochemical, chem icals, power utilities, environmental protection and emergency response.
High-Definition Infrared Imaging
640×512 High Infrared Resolution
-
Customized Filter Detector to Eliminate Stray Light Interference
Intelligent Gas Detection
Real-Time Gas Concentration
AI Gas Cloud Visualization
Ultra-Low Leak Detection Threshold
Thermal Imaging Characteristics
Detector Resolution: 640×512
Lens Configuration: 19 mm non-detachable manual lens
Focusing Mode: Manual
IFOV (Spatial Resolution) : 0.68 mrad
Minimum Imaging Distance: 0.3 m (imaging only)
Common Characteristics
Detector Type : Uncooled infrared detector
Thermal Sensitivity : 15mK
Frame Rate : 25Hz
Measurement and Analysis
Measurement Accuracy : ±2°C or ±2% of the reading
Gas Detection Function : AI intelligent gas detection, gas cloud coloring, retrieving concentration, automatic alarm, gas image enhancement, image multi-sensitivity switch
Gases Detectable : Sulfur trioxide(SO3), Ammonia(NH3), Methanol(CH3OH), Ethylene(C2H4), Propylene(C3H6) and other gases
