Home > Products > Gas Detection > RG600C OGI Handheld Camera

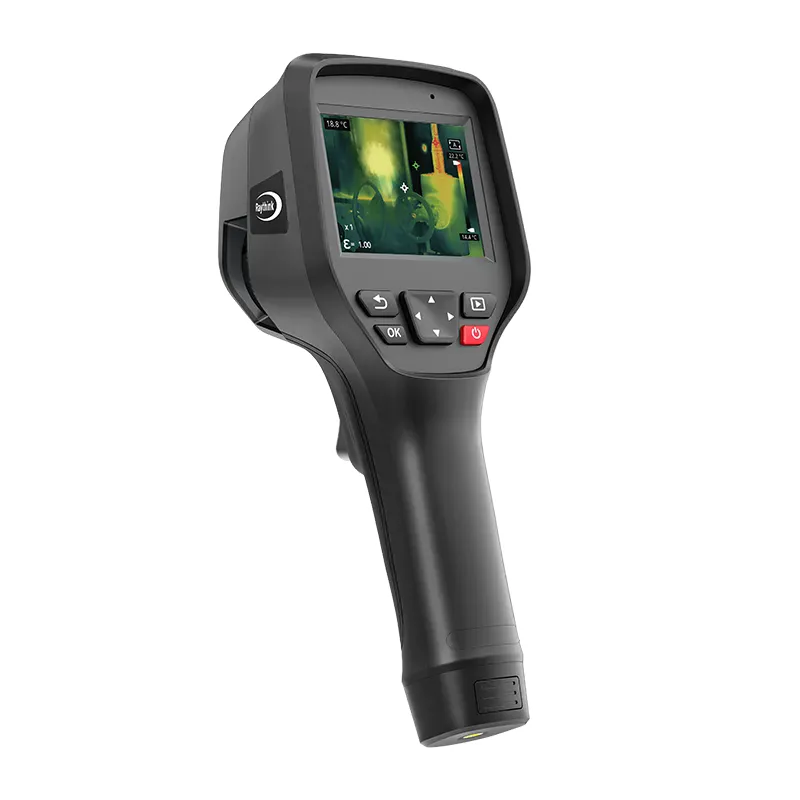

RG600C OGI Handheld Camera
- 100000 Piece / Pieces per Month
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
Product Details
| Place of Origin | China | Model Number | RG600F OGI Handheld Camera |
Product Description
Using an uncooled VOx detector featuring high spatial resolution and high sensitivity, powered by infrared thermal imaging technology, RG600C enables non-contact, visual leak location for dozens of gases such as natural gas (CH4) and Freon, in addition to daily temperature measurement needs.
This series are ideal for gas security, emission management, and equipment maintenance in industries such as oil and gas, petrochemical, environmental protection and emergency response.
Feature
Equipped with a 640×512 customized band-pass filter detector to eliminate stray light interference; capable of distinguishing a temperature difference of 0.023°C, capturing gas microleakage.
Spatial resolution as low as 0.63mrad, providing wider working distances or better gas details.
Simultaneous observation of thermal imaging and visible light to easily locate gas leaks
High accuracy of temperature measurement, easy to meet the dual tasks of gas leakage detection and temperature measurement
5-inch touch screen+ complete analysis functions, easy to facilitate routine inspection tasks
Ex ic IIC T4 explosive-proof rated, suitable for security applications in explosive-proof application such as oil and natural gas routine inspections.
Specification
| Thermal Imaging Parameters | |
|---|---|
| Detector TypeUncooled infrared detectorInfrared Resolution640×512Spectral BandCentral wavelength 10.55μmGases Detectableulfur hexafluoride, ammonia, ethylene, vinyl ether, vinyl chloride, trichloroethylene, methyl vinyl ketone, propylene, acrolein, acrylonitrile, ethyl cyanoacrylate, allyl fluoride,etcPixel Size12μmThermal Sensitivity (NETD)23mKSpatial Resolution (IFOV)0.63mradImage Frequency30HzLens Focal Length19mmField of view (FOV)23°×18°Focus ModeManualObject Temperature Range-20°C~+120°CTemperature Accuracy±2% or ±2°C | |
| Camera Functions | |
| Temperature Measurement ModeCenter point/Hot and cold spot tracking and temperature displayCustomized Measurement on Points, Lines, and AreasMovable points/lines/areas; up to 10 points, 10 areas, and 10 linesMeasurement UnitCelsius, Fahrenheit, KelvinEmissivity Settings0.01~1.00, step size 0.01Ambient Temperature Settings-10°C~+50°C, step size 1°CDistance Settings1~20m, step size 1mImage ModeInfrared, visible light, dual-spectrum fusion, PIPPalettes10Temperature AlarmAvailableAlarm TypeImage AlarmTemperature Width StretchManual/Auto temperature rangeLaser PointerAvailableVisible Light Camera5 megapixelsVideo/Photo StorageXX-IR.jpg (Infrared image with temperature data) and XX-DC.jpg (visible-light image); videos without data.Voice NoteAvailableLanguageEnglish, Japanese, Poland, Russian, Korean, Hungarian, Bap, German, French,Spain, Italy, Turkey, and Traditional ChineseDisplay Size3.5-inch touch screen (480×640)Image NamingAuto/manual naming, naming by scanning QR codeMemory CardStandard 32GB Micro SD cardBattery TypeRechargeable and detachable lithium-ion batteryPower SupplyUSB TypeCConnecting MethodUSB, SD card, Wi-Fi (AP mode or networking mode)Battery Charging TimeAbout 3hBattery Operating TimeAbout 3hPower ManagementAutomatic shutdown: 5 minutes, 10 minutes, 20 minutes, never | |
| Others | |
| Analysis SoftwarePC & AppTripod SupportAvailableOperating Temperature-10°C~+50°CStorage Temperature-20°C~+60°CRelative Humidity10%~95%, non-condensingDrop Protection2mIngress Protection RatingIP54(IEC 60529)Shock and VibrationShock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)Dimensions256.4×105.1×105.3(mm)WeightAbout 670gCertificaitonsCE/ROHS, etc.Packing List5V 3A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list | |
Application Scenarios
| Electric Power and Energy | Emergency Response and Environmental Protection | Oil exploitation | Petrochemical |
Company Profile
Raythink Technology Co., Ltd. is specialized in innovation and development, manufacturing and marketing of intelligent photoelectric sensing technology. We are deeply engaged in the fields of infrared night vision imaging, thermography, gas imaging and laser sensing, providing professional infrared and laser sensing components, devices, software and smart industry solutions to our global customers. We have also successfully achieved self-development and large-scale production of intelligent multi-dimensional sensing photoelectric products in diverse forms applicable to various fields.Being a solution provider to public sectors, industries, and commercial markets, we provide a rich portfolio of intelligent photoelectric sensing products, which are widely used in the smart industry, smart robots, gas detection imaging, fire fighting and safety, green energy, carbon neutrality, environmental protection, healthcare, etc. Bearing the mission of boosting intelligent photoelectric sensing technology progress, RayThink Technology integrates photoelectricity and smart technology to continuously create incremental value for customers and contribute to building a safe, energy-saving and environmentally friendly society.
