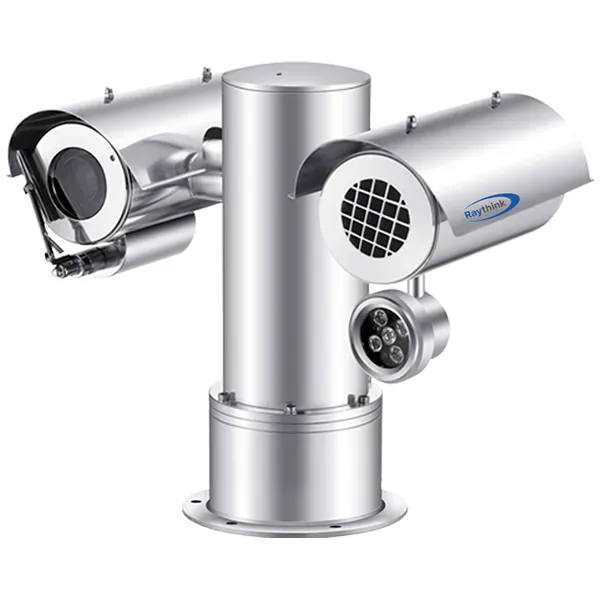

TE464G Explosion-Proof Gas Imaging PTZ
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
TE464G Explosion-Proof Gas Imaging PTZ
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
High-Precision OGI Handheld Camera With 640×512 Detector and 0.63mrad Spatial ResolutionNegotiableMOQ: 50 Pieces -
Advanced Infrared Gas Leak Detection Handheld Camera With 23mK Sensitivity and 3.5-Inch TouchscreenNegotiableMOQ: 50 Pieces
-
Reliable Handheld Thermal Imaging Camera for SF6, NH3, C2H4, C3H6 Gas Leak DetectionNegotiableMOQ: 50 Pieces
-
Durable and Portable OGI Camera With 12 μm Pixel Size and Dual Spectrum Imaging for Gas DetectionNegotiableMOQ: 50 Pieces
-
Professional Gas Leak Detection OGI Camera With High Accuracy ±2°C and Wide 23°×18° FOVNegotiableMOQ: 50 Pieces
Place of Origin
China
Model Number
TE464G Explosion-Proof Gas Imaging PTZ
TE464G Explosion-Proof Gas Imaging PTZ
TE464G is a high-performance dual-spectrum gas imaging camera featuring an advanced uncooled infrared detector with a thermal sensitivity of less than 20mK.
It holds dual explosion-proof certifications and has a stainless steel body with an IP68 ingress protection rating.
The device supports multiple protocols, such as Modbus TCP, ONVIF, and GB28181, and supports secondary development.
It can detect gases such as methane, propane, and ethylene and finds significant applications in industries such as oil exploitation and coal processing.
Highly-Sensible Uncooled Detector For Non-Contact Gas Imaging Monitoring
The new-generation highly-sensible uncooled detector offers a thermal sensitivity of less than 20mk.
An integrated gas imaging algorithm enables passive, non-contact gas imaging detection, swiftly locating leakage positions.
Dual-Spectrum Imaging For 24/7 Monitoring
Combines visible light and thermal imaging for dual-spectrum imaging, catering to both gas imaging and industrial temperature measurement.
Supports professional temperature analysis and intelligent fire point detection, providing continuous 24/7 monitoring services for industrial facilities.
Dual Explosion-Proof Certifications And Stainless Steel Body For Enhanced Safety
Ex d ⅡC T6 Gb/Ex tD A21 IP68 T80℃ dual explosion-proof certifications
304/316L stainless steel body of IP68 ingress protection rating
| Thermal Imaging Parameters | |
|---|---|
| Detector TypeVOx uncooled focal plane detectorSpectral Band7~8.5μmThermal Sensitivity≤20mK(@25°C,F#1.0)Infrared Resolution640×512Pixel Pitch12μmLens Focal Length25mmFocus ModeAthermalized prime lens/Electric focusingFOV17.5°×14°IFOV0.48mradPalettesBlack-hot/White-hot/Rainbow/Other palettes optional (20 modes in total) | |
| Visible Light Parameters | |
| Sensor1/1.8" 4-megapixel CMOS image sensorMaximum Image Resolution2688×1520Lens Focal Length6.4mm~128mmFocus ModeAutomatic/Manual/Semi-automaticFOVHorizontal: 59.6°~3.5° | |
| Gas Parameters | |
| Gas TypeMethane, ethane, propane, butane, pentane, hexane, heptane, octane, ethylene oxide, propylene oxide, ethylene, propylene, 1-butene, methanol, ethanol, butanol, ethylene glycol, isopropanol,etc | |
| PTZ Parameters | |
| Horizontal Range360° horizontal continuous rotationVertical Range-90°~+90°Number of Presets256Scan ModePreset point/Patrol scan/Pattern scan/Area scanning/Linear scanning | |
| Temperature Measurement Function | |
| Measurement Range-20℃~+550℃Measurement Accuracy±2°C or ±2%Temperature AnalysisSupports global, point, line, and area temperature measurement rules as well as alarm linkage. | |
| PTZ Function | |
| Fire WarningSupports fire point detection.Intelligent Video TakingVideo taking triggered upon alarms or network failuresIntelligent AlarmDetects abnormalities, including network cable disconnections, IP address conflicts, memory errors, unauthorized access, and burn warnings, and triggers an alarm in response.Intelligent DetectionSupports intelligent analysis of events such as tripwire intrusions and regional intrusions.Alarm LinkageVideo taking/Image capture/Email/Linked PTZ/Alarm output | |
| System Interface | |
| Power Supply85V～260V AC/24V DC 3A (optional)Communication Interface1 RJ45 10M/100M adaptive Ethernet port; 1-channel RS485 interface, supporting Pelco protocol.Alarm Interface1-channel alarm input, 1-channel alarm output | |
| General Specifications | |
| Operating Temperature and Humidity-40°C～+60°C; | |
|
Oil exploitation |
Chemical engineering |
Coal processing |
Chemical engineering |
