DRS Wheel Drive System | 112mm - 500mm Wheel Blocks Travel Units for Crane End Carriages & End Trucks
The DRS Wheel Block System is a versatile, modular travel solution designed to simplify the construction of crane end carriages, transfer carts, and mobile industrial units. As a specialist crane wheel manufacturer, we provide precision-engineered DRS blocks that are fully compatible with international standards, offering a "plug-and-play" solution for your material handling needs.
Key Features of Our DRS System
1. Multi-Surface Mounting (Total Flexibility)
Our DRS housings are precision-machined on five sides. This allows for:
Top Mounting: For standard overhead crane end trucks.
Side/Pin Mounting: For custom machinery or wall-traveling units.
Connection Versatility: Pre-drilled holes ensure rapid alignment and installation.
2. Premium Material: Spheroidal Graphite Cast Iron
We use GJS-700-2 (Ductile Iron) for our wheels.
Self-Lubricating: Reduces friction and wear on your crane rails.
Vibration Damping: High internal damping properties ensure quiet and smooth travel.
High Load Capacity: Engineered to handle wheel loads from 2.5t up to 40t.
3. Modular Drive Integration
The DRS wheel block is designed to be paired seamlessly with offset or angular gear motors. The hollow shaft spline or keyed connection ensures efficient torque transmission and easy maintenance.
4. Maintenance-Free Design
Equipped with heavy-duty, oversized Anti-friction Roller Bearings, our wheel blocks are lubricated for life, significantly reducing your operational downtime.

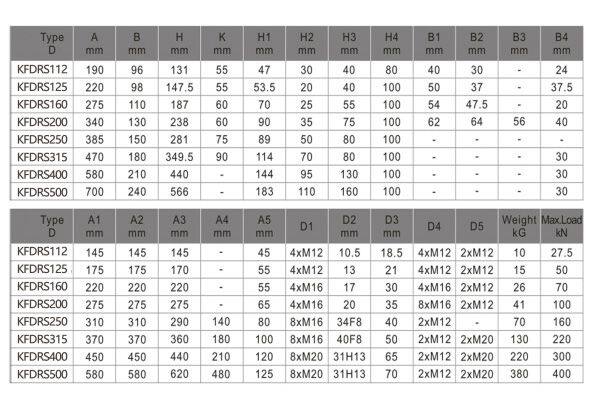

Technical Specifications
Request a Technical Quote
Email: sale10@kfqizhongji.com
WhatsApp: +86 18118900837
