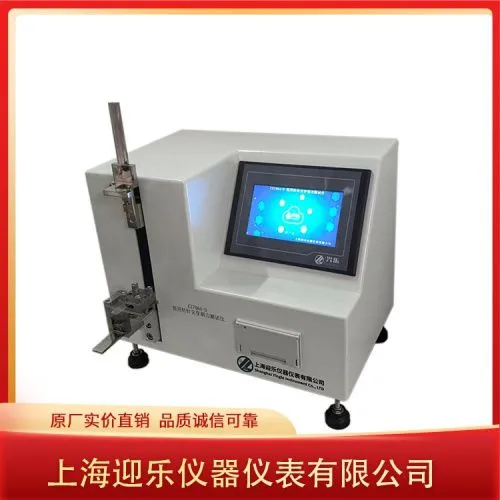

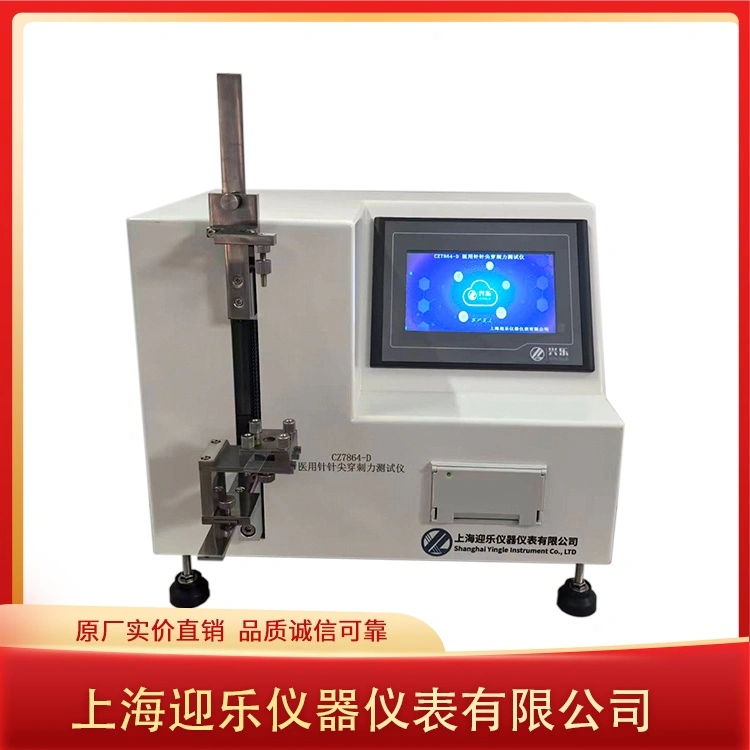

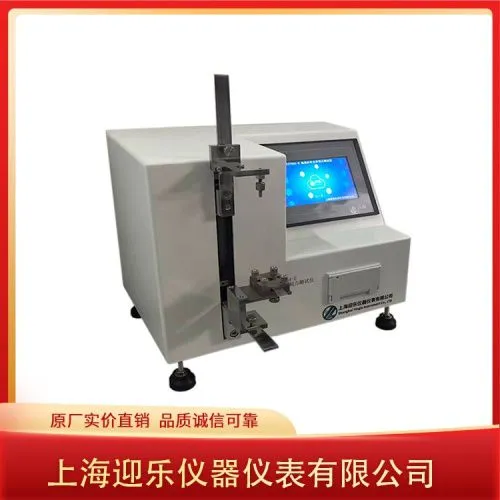

Medical needle tip sharpness tester
The medical needle tip sharpness tester is suitable for medical needles such as injection needles, puncture needles, blood collection needles, and indwelling needles. It can test the sharpness and puncture force of the needle tips to ensure product quality and clinical use safety.
Technical Indicators:
Operating Interface: Simplified Chinese/English
Testing Standards: ISO 7864-2016 "Single-Use Sterile Subcutaneous Injection Needle"
GB 15811-2016 "Single-Use Sterile Injection Needle"
GB 15811-2025 "Single-Use Sterile Injection Needle"
Display: 7-inch 2000+ core/matrix 65-color 800*480 resolution touchscreen display, PLC control system dynamically displays the loading force value; selectable operating interface: Chinese/English/switch between Chinese and English; digital closed-loop control, 4D sampling rate of 500KHz, internal code 500,000; high-precision clock chip, power-off storage; overload alarm shutdown protection; touch operation: nominal specifications, tube wall, number of tests, pressure, upward, downward, time, calibration. Real-time display of penetration force and friction force peak force data, capable of displaying maximum penetration force and F five peak forces, return resistance, and penetration force curve diagrams, etc., and the test results are printed by the on-board printer.
Programmable Logic Controller: PLC+ARM,
Nominal Specifications: Customized 0.18~3.4mm:
Test Range: 0.01~50.00N, error not more than ±0.5%; Resolution: 0.01N
Moving Speed: 50mm/min-250mm/min; error not more than ±5%;
Setting Distance: 6mm~90mm, error not more than ±5%
Sensor: High-precision force value sensor (hardware and software protective functions)
Penetration Material: Polyurethane film material (artificial skin), in compliance with GB 15811 standard;
Printing Method: On-board needle printer
Test Data: Automatic acquisition of penetration force data on-board, maximum penetration force, and automatically calculated average penetration force and deviation value
Overall Power: 200w
Power Supply: AC90V-240V/50Hz
Net Weight: 12kg
Outer Dimensions: 400×290×240 (mm)
Manufacturer introduction：
Shanghai Yingle Instrument & Instrument Co., Ltd. (Formerly Shanghai Xingle) is located in the manufacturing - Shanghai. The company was established in 1993 and is a manufacturer of physical performance testing equipment for medical consumables that integrates design, research and development, and sales The company's products mainly serve third-party testing institutions, quality laboratories and research and development centers of medical consumables production units, etc. The company has more than thirty years industry experience and is the first domestic (shou) manufacturer of physical performance testing instruments for disposable medical devices. It is also the first (shou) company to obtain CMC. The company mainly produces medical stainless steel needle tube testing equipment, medical syringe testing equipment, medical infusion tube testing equipment, medical suture needle and thread testing equipment,6% luer connector fitting testing equipment, etc. Technical indicators are updated with the latest medical packaging industry standards to ensure that the company's products serve customers with the latest standards 。
FAQ
Are you a manufacturer or trading company?
We are a Chinese manufacturer based in Shanghai, China, focusing on medical testing equipment for more than 30 years. We mainly produce medical needle testers, medical syringe testers, infusion set testers, suture needle testers, suture testers, Luer syringe connector comprehensive testers, and medical device flow testers.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 5-7 working days. For the customized one, 30 days or so.
