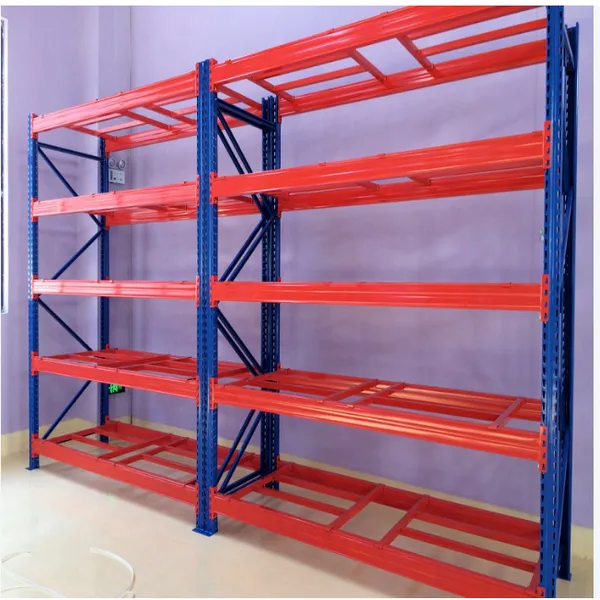

Selective beam Heavy duty racking Warehouse Storage Solutions
Heavy duty shelving, also known as beam shelving or location shelving, belongs to the pallet shelving category and is a common form of shelving in various storage shelving systems in China. The fully assembled structure in the form of column pieces and crossbeams is concise and effective. Functional accessories such as partitions, steel laminates (wooden laminates), wire mesh layers, storage cage guides, oil drum racks, etc. can be installed according to the characteristics of the storage unit container equipment. Satisfy the storage of goods in different unit container equipment forms.
Characteristics of heavy-duty shelves:
1. It has the characteristic of arbitrary access to goods. Each layer can bear a maximum load of over 1000kg. Low cost, fast turnover rate.
2. Heavy duty shelves are all custom-made according to the customer's load-bearing requirements and the size of the warehouse and goods, with suitable specifications and sizes tailored accordingly. Welcome to inquire by phone!
3. After rust removal, degreasing, and phosphating of all components on the shelf, epoxy resin electrostatic powder coating treatment is carried out.
4. It can be designed and manufactured according to the size of the goods. It is made by rolling cold-rolled steel strip, which has high strength and durability, a tight overall structure, and a safety factor.
5. It can be used in conjunction with the card board, greatly improving space utilization Improve storage capacity Heavy duty crossbeam shelves are large-scale storage shelves in the field of warehousing, with work efficiency second only to automated three-dimensional warehouses.

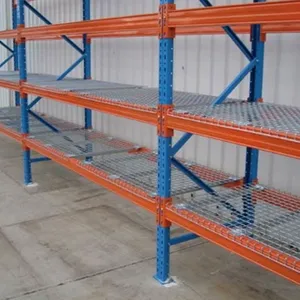

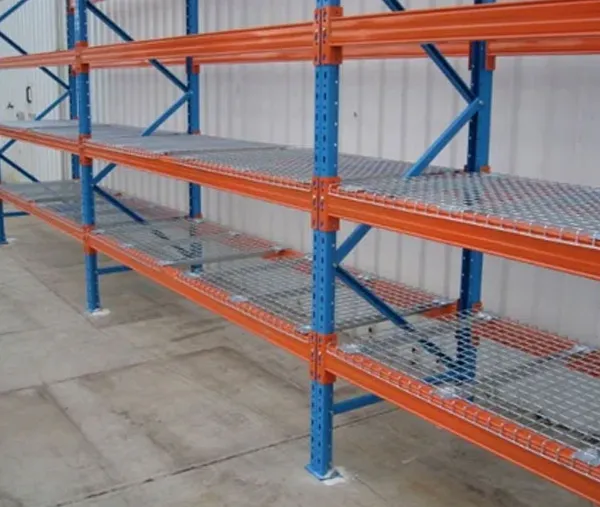

Heavy-duty racking, commonly known as beam racking or pallet racking, falls under the category of pallet storage systems and is one of the most prevalent racking forms in various warehouse storage systems domestically. It features a fully assembled structure consisting of upright frames and beams, offering a simple and effective design. Functional accessories such as dividers, steel decking (steel grating), wire mesh decking, storage cage guides, and drum racks can be added based on the characteristics of the storage unit handling equipment, meeting the storage needs of various unitized load devices.
Key Features of Heavy-Duty Racking:
1. Goods are typically stored on the racking after being unitized on pallets, storage cages, or other handling devices. Each unit load generally weighs up to 4000kg, with two units commonly stored per level.
2. It is one of the most common and widely used racking types, suitable for the vast majority of warehouses or product storage applications.
3. Offers random access to goods. Handling machinery such as forklifts can reach any storage location for storage operations, making the process convenient and efficient!
4. Storage operations are performed using mechanical handling equipment.
5. The span of a single racking unit is typically within 4m, with a depth within 1.5m. The height for low- and high-level warehouse racking is generally within 12m, while overall warehouse racking height can be up to 30m (such warehouses are typically automated, with total height achieved by stacking multiple upright sections under 12m each).
6. Allows for free adjustment of each level's height in increments of 75mm.
Pallet Rack
1) Pallet shelves are the most common and cost-effective storage shelves of all types.
2) High capacity storage with low equipment and capital costs, and the size and weight can be customized according to your specific needs.

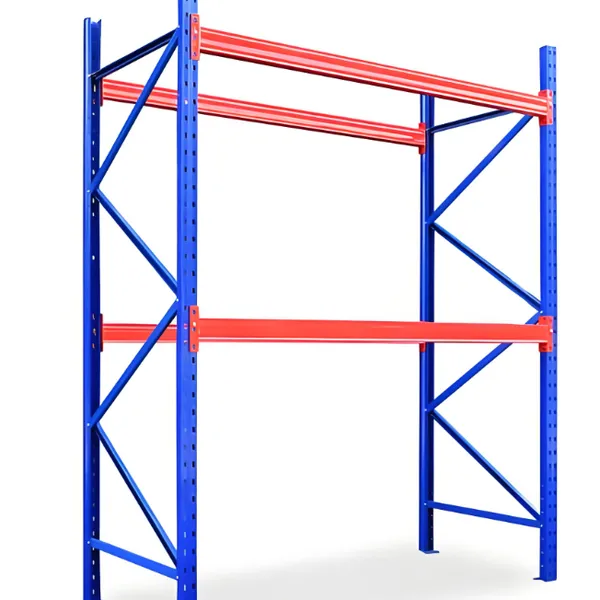

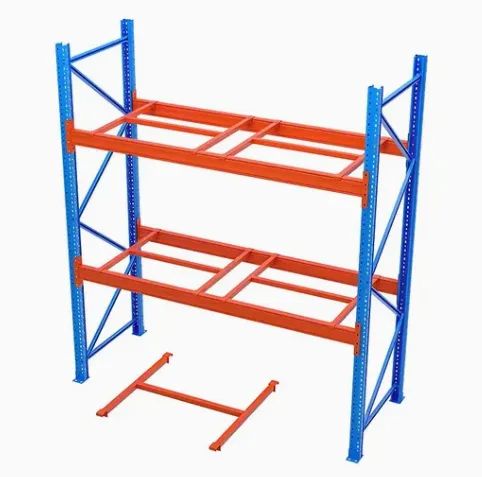

3) The rack structure is mainly composed of columns, beams, horizontal supports, diagonal supports, and self-locking bolts.
Product Description:
| Upright specification | Beam specification |
| 90x70/100x70/120x95mm Thickness :1.8/ 2.0/2.5mm | 80x50/100x50/120x50/140x50/160x50mm 100x40/120x40/140x40/160x40mm Thickness :1.5mm |
| Steel grade : Q235 /Q345 , material certification available | |
| Color code: RAL5015 blue -upright / RAL2004 orange- beam | |
| Loading capacity : up to UDL 3000kg/layer | |
| Surface finishing : powder coated / galvanized | |
| BOX BEAM LOADING TABLE | ||||||||||
| Beam length (mm) | 80*50*1.5 | 100*40*1.5 | 100*50*1.5 | 110*50*1.5 | 120*40*1.5 | 120*50*1.5 | 140*40*1.4 | 140*50*1.5 | 160*40*1.5 | 160*50*1.5 |
| 1500 | 4286 | |||||||||
| 1800 | 2977 | |||||||||
| 1900 | 2672 | 3809 | 4535 | |||||||
| 2200 | 1993 | 2841 | 3382 | 4219 | ||||||
| 2300 | 1823 | 2599 | 3095 | 3860 | 3918 | 4665 | ||||
| 2400 | 1674 | 2387 | 2842 | 3545 | 3598 | 4284 | ||||
| 2500 | 1403 | 2000 | 2381 | 2970 | 3014 | 3598 | 4340 | 5160 | ||
| 2600 | 1297 | 1849 | 2201 | 2745 | 2787 | 3318 | 4010 | 4771 | ||
| 2700 | 1203 | 1715 | 2041 | 2546 | 2584 | 3077 | 3716 | 4425 | 5068 | 6033 |
| 3000 | 974 | 1389 | 1655 | 2065 | 2093 | 2492 | 3010 | 3585 | 4105 | 4887 |
| 3300 | 708 | 1010 | 1202 | 1500 | 1522 | 1812 | 2189 | 2610 | 2985 | 3555 |
| 3600 | 600 | 849 | 1010 | 1260 | 1279 | 1523 | 1839 | 2190 | 2508 | 2986 |
| 3800 | 540 | 762 | 907 | 1135 | 1148 | 1369 | 1658 | 1965 | 2251 | 2680 |
| 4000 | 485 | 687 | 818 | 1024 | 1036 | 1235 | 1550 | 1774 | 2032 | 2419 |

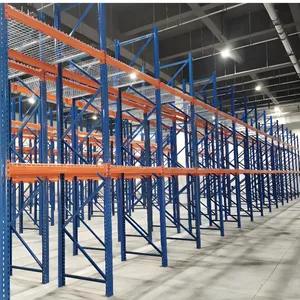

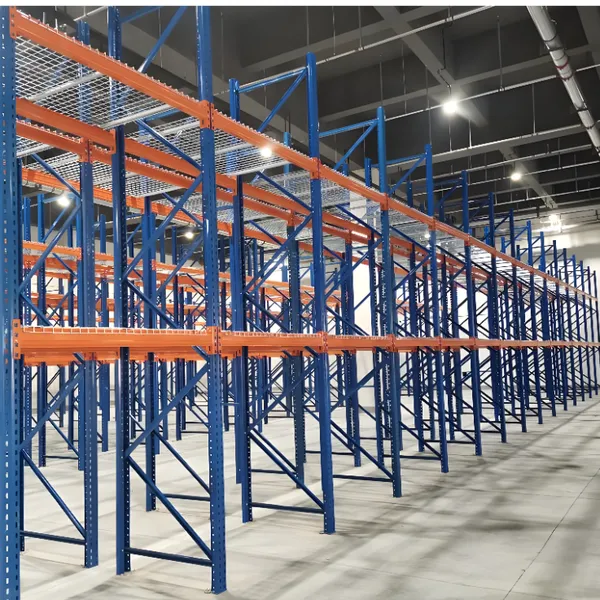

Project cases:
Features of pallet racks:
1. Applicable to all types of warehouses. Pallets can be located, accessed and moved individually.
2. Rapid handling of almost all types of palletized goods.offer components to accommodate specialized needs.
3. The rack has a simple structure, and customers can freely adjust the height of the beam,according to the needs of the warehouse at different times, so as to store different types of goods.
4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5. Bottom level of pallets can be stored on the floor, lowering structure costs.
6.There are spring safety locks or L locks to fix beams and uprights tightly, can also install foot plate, crash barriers and other equipment to improve the protection of the racking shelves.
Product Parameters
| Rack Material | Cold roll steel Q235 (Q345 for Cold Room Application) |
| Loading Capacity | Customized and up to 80,000 Kg /Level |
| Height | Customized and up to 15m |
| Color&size | As customer needs |
| Offers | Factory Direct Sales.Different quantity, different promotional activities |
| Racking Finish | Frames + Bracings (Powder Coated or Pre-galvanized) + Beams (Powder coated) |
| Installation | Video teaching or engineer guided |
| Package | Packed by Air Bubble Film or Carton. |
| Loading port | QingDao Port |
| Payment term | 30% T/T / L/C /Western Union in advance, balance before shipment |
| Lead Time | 5-25 days after payment |
Installation Instructions
Factory Photos
You can send us your CAD drawing, and we could give you a quick online quotation, or you just tell us your tridimensional dimension of your warehouse we can design and work out drawings for you within 48 hours.
Please send us your CAD drawing, and we could give you a quick online quotation, or you just tell us your tridimensional dimension of your warehouse we can design and work out drawings for you within 48 hours.
Please inform us of the following information for quick quotation
| 1. | Drawing (if available) |
| 2. | Size of your warehouse (width, length, clear height) or your warehouse plan drawing |
| 3. | Size of racking (H*W*L) |
| 4. | How levels of the racking? |
| 5. | Loading capacity of each level? |
| 6. | (RAL) Color you want. |
