Attic shelving Mazzanine floor & steel platform shelf rack Products

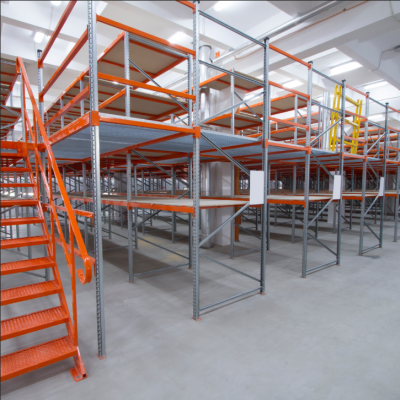

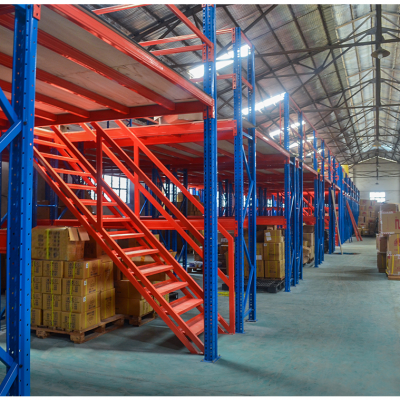

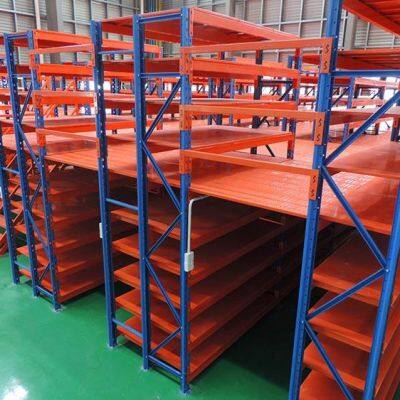

Attic shelving (also known as mezzanine shelf or steel structure platforms) are multi-layer storage systems that utilize the vertical space of warehouses. They are usually built with steel structures and are suitable for scenarios where small and medium-sized goods are stored, picked, or where office and warehousing are combined.
Attic shelving is a storage system that utilizes the upper level space of a warehouse to build multiple storage platforms. By adding a middle attic on top of existing shelves or workspaces, it achieves efficient utilization of vertical space and significantly increases storage capacity.
1、 Core Structure and Composition
The attic shelves are mainly composed of the following components:
Column and crossbeam: As the main supporting structure, column pieces and crossbeams of medium or heavy-duty shelf shelves are usually used.
Floor slabs: commonly used cold-rolled steel floor slabs, patterned steel plates, or steel grating plates, which have the advantages of strong load-bearing capacity, smooth surface, and easy locking.
Auxiliary facilities: including stairs, guardrails, elevators, conveying equipment, etc., to ensure the safety of personnel access and cargo transportation.
2、 Main features
High space utilization rate
By designing 2-3 floors without expanding the warehouse, the storage area can be doubled, especially suitable for warehouses with a floor height of ≥ 4.5 meters.
Fully assembled structure
No on-site welding is required, bolted connection is used, easy to install and disassemble, and supports flexible modification and relocation.
Moderate carrying capacity, convenient classified storage
The floor load capacity is generally 300-1000kg/㎡, suitable for storing light foam, small and medium-sized goods such as electronic components, automotive parts, clothing accessories, etc.
Widely applicable scenarios
Widely used in e-commerce warehousing, automobile 4S stores, light industry, electronics, machinery and other industries, and also commonly used in old warehouse renovation projects.
Attic shelving Technical Specifications
(Custom configurations available upon request.)
Name |
mezzanine shelf |
Material |
Q235B Steel |
Size |
Customized Size |
Color |
Customized Color |
Depth |
Customized |
Weight Capacity |
1000kg/arm |
Width |
Customized |
Height |
Customized |
Finish |
Powder coating; Hot Dip Galvanized |
||
Packing |
Export Package |
||
Certification |
RMI/CE/ISO/TUV/AS4084-2012 |
||
MOQ |
One 20ft/40ft Container |
||
Free Sample |
Available (Delivery Cost on Buyer) |
||
OEM |
Available |
||

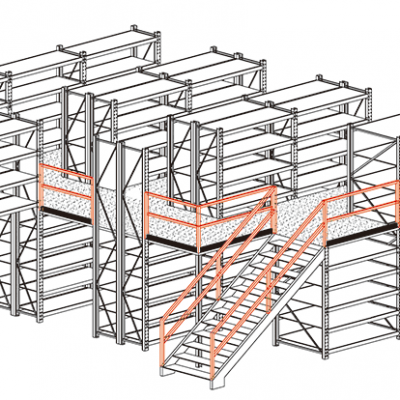

Drawings & Dimensions
After Sales Service
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Project cases:
Features of pallet racks:
1. Applicable to all types of warehouses. Pallets can be located, accessed and moved individually.
2. Rapid handling of almost all types of palletized goods.offer components to accommodate specialized needs.
3. The rack has a simple structure, and customers can freely adjust the height of the beam,according to the needs of the warehouse at different times, so as to store different types of goods.
4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5. Bottom level of pallets can be stored on the floor, lowering structure costs.
6.There are spring safety locks or L locks to fix beams and uprights tightly, can also install foot plate, crash barriers and other equipment to improve the protection of the racking shelves.
Product Parameters
| Rack Material | Cold roll steel Q235 (Q345 for Cold Room Application) |
| Loading Capacity | Customized and up to 80,000 Kg /Level |
| Height | Customized and up to 15m |
| Color&size | As customer needs |
| Offers | Factory Direct Sales.Different quantity, different promotional activities |
| Racking Finish | Frames + Bracings (Powder Coated or Pre-galvanized) + Beams (Powder coated) |
| Installation | Video teaching or engineer guided |
| Package | Packed by Air Bubble Film or Carton. |
| Loading port | QingDao Port |
| Payment term | 30% T/T / L/C /Western Union in advance, balance before shipment |
| Lead Time | 5-25 days after payment |
Installation Instructions
Factory Photos
You can send us your CAD drawing, and we could give you a quick online quotation, or you just tell us your tridimensional dimension of your warehouse we can design and work out drawings for you within 48 hours.
Please send us your CAD drawing, and we could give you a quick online quotation, or you just tell us your tridimensional dimension of your warehouse we can design and work out drawings for you within 48 hours.
Please inform us of the following information for quick quotation
| 1. | Drawing (if available) |
| 2. | Size of your warehouse (width, length, clear height) or your warehouse plan drawing |
| 3. | Size of racking (H*W*L) |
| 4. | How levels of the racking? |
| 5. | Loading capacity of each level? |
| 6. | (RAL) Color you want. |
web: /
email: shiyan-110@163.com
whatsapp: 0086 135 0624 5149
we can manufacture according to your requirement. so welcome your enquiry.
