Bently nevada 330104-00-16-10-02-05 Eddy current probe

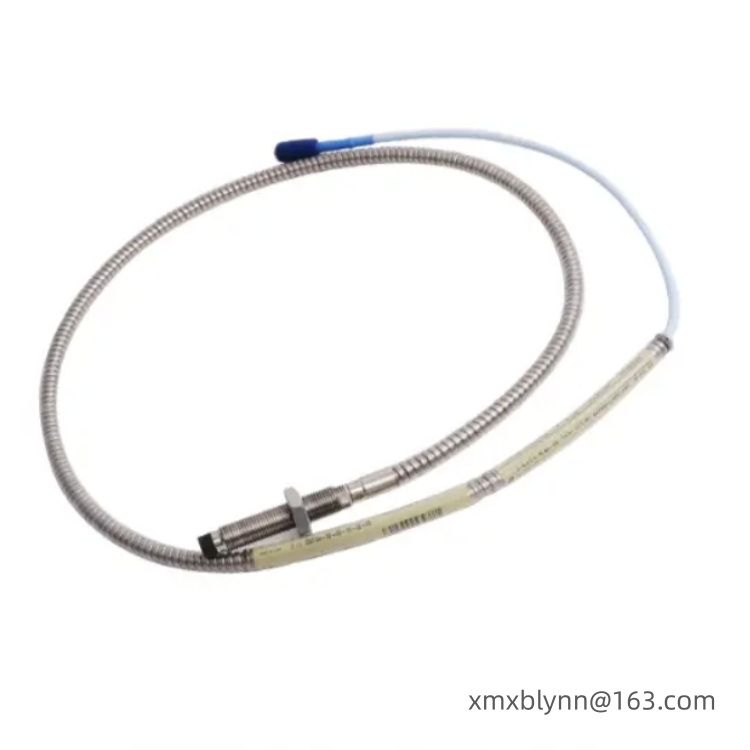

The 330104-00-16-10-02-05 is a Bently Nevada 3300 XL series 8mm armored eddy current probe. Based on the principle of eddy current, it achieves non-contact measurement. Its core function is to capture radial/axial displacement, vibration, key phase, and speed signals of rotating machinery shaft systems. It is compatible with the 3300 XL 8mm sensor system and is commonly used in the power, petrochemical, and other industries for condition monitoring and fault early warning of key equipment such as steam turbines and compressors to ensure the safe and stable operation of equipment.
Core Parameters and Specifications
Item Parameter
Product Model 330104-00-16-10-02-05 (3300 XL 8mm Armored Probe)
Model Code Meaning 00 (Non-threaded length) -16 (Housing length 160mm) -10 (Cable length 1.0m) -02 (Miniature coaxial ClickLoc connector) -05 (Certification option)
Compatible Systems 3300 XL 8mm sensor system, compatible with 330180 series preamplifiers and 330854 series extension cables
Electrical Characteristics Frequency Response 0-10kHz, Sensitivity 7.87V/mm (200mV/mil), Linear Range 0.25-2.3mm, compatible with ferromagnetic metal target surfaces
Temperature Tolerance Probe operating temperature -51~177℃, armored cable high temperature resistance and mechanical damage resistance, suitable for harsh industrial environments
Structural Material Probe housing is AISI Constructed from 303/304 stainless steel, with a PPS tip and armored cable for enhanced durability. M10×1 metric thread for easy installation, compatible with standard mounting brackets for convenient field fixing and calibration.
Email: xmxblynn@163.com
Phone: +86 18059884797
Core Functions
Non-contact Measurement: Based on the eddy current effect, it measures clearance changes without contact with the rotating shaft system, avoiding mechanical wear and measurement interference, and is suitable for high-speed rotating equipment.
Multi-parameter Monitoring: It can measure parameters such as shaft vibration, axial displacement, key phase, eccentricity, and rotational speed, providing comprehensive data support for equipment condition assessment.
Stable Signal Transmission: The armored cable design enhances anti-interference capabilities, adapting to harsh conditions such as high temperature, oil contamination, and vibration, ensuring signal integrity.
System Compatibility and Integration: Matches the 3300 XL 8mm sensor system, supports 3300/3500 monitoring frames, and simplifies data acquisition and analysis processes.
Long-term Reliable Operation: Stainless steel housing and high-temperature resistant materials adapt to a wide temperature range of -51~177℃, meeting the needs of long-term online monitoring.
Applications and Typical Scenarios
Power Energy: Monitoring shaft vibration and axial displacement of steam turbines, generators, and water pumps; used in conjunction with the 3500 system for fault diagnosis; compliant with API 670 standards.
Petrochemical Industry: Monitoring the shaft conditions of compressors, fans, and gearboxes, collecting key phase and speed signals to ensure long-term operation and safety interlocks.
Metallurgical Heavy Industry: Vibration and displacement monitoring of heavy-duty equipment such as rolling mills and coal mills to prevent faults such as bearing wear and rotor imbalance.
General Industry: Condition monitoring of rotating machinery such as motors and centrifuges to assist in predictive maintenance and reduce downtime risks.
Scientific Research and Experimentation: Providing high-precision displacement and vibration data for rotor dynamics research, mechanical structure vibration analysis, and other applications.
Email: xmxblynn@163.com
Phone: +86 18059884797
