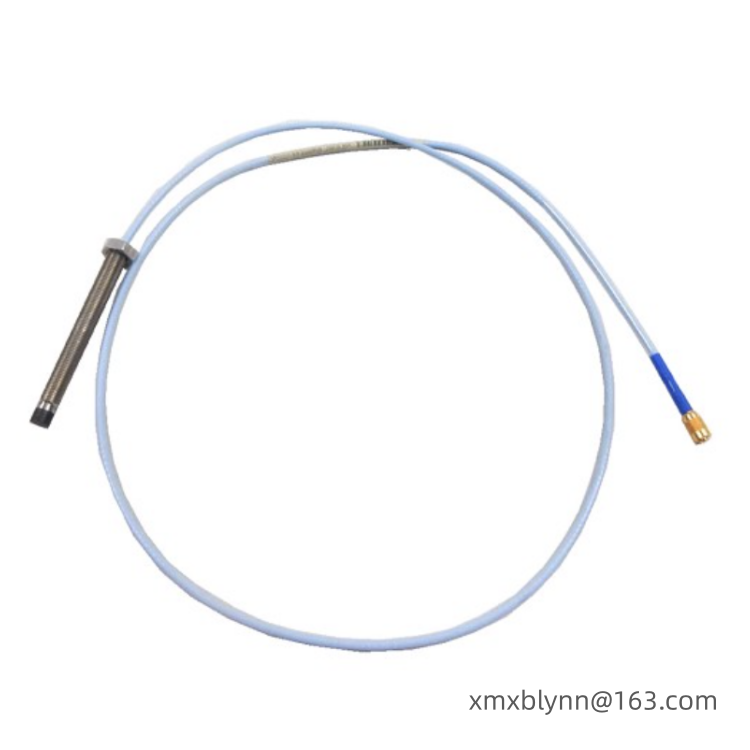

Honeywell 330101-00-12-10-02-00 Eddy current proximity probe
The 330101-00-12-10-02-00 is the Bently Nevada 3300 XL 8mm eddy current proximity probe. Its core function is to form a non-contact measurement system with the 3300 XL preamplifier and extension cable, converting the clearance changes of rotating machinery shafts into measurable electrical signals. It is compatible with 8mm sensor systems and is used for high-precision measurement of radial/axial displacement, vibration, key phase, and rotational speed. It is widely used in the condition monitoring and fault early warning of key equipment in industries such as power, petrochemical, and metallurgy to ensure the safe and stable operation of equipment.
Core Parameters and Specifications
Item Parameter
Product Model 330101-00-12-10-02-00 (3300 XL 8mm Eddy Current Proximity Probe)
Compatible Systems 3300 XL 8mm Eddy Current Sensor System, compatible with 3300 XL preamplifier and extension cable
Probe Diameter 8mm, standard measurement range, suitable for conventional shaft monitoring scenarios
System Length 12m, suitable for long-distance installation requirements
Electrical Characteristics Output sensitivity with preamplifier: 7.87V/mm (200mV/mil), frequency response 0-10kHz, compatible with ferromagnetic metal target surface
Temperature Tolerance Operating temperature -51~121℃, suitable for high and low temperature conditions in industrial environments
Housing Material Stainless steel housing, corrosion resistant, suitable for harsh industrial environments
Protection Rating IP65, dustproof and waterproof, ensuring long-term stable operation
Certifications Compliant with API 670 standard, suitable for industrial rotating machinery monitoring systems
Email: xmxblynn@163.com
Phone: +86 18059884797
Core Functions
Non-contact Measurement: Based on the principle of eddy currents, it monitors shaft clearance changes non-contactly, avoiding mechanical wear and ensuring measurement accuracy and equipment safety.
Multi-parameter Monitoring: It can measure parameters such as radial vibration, axial displacement, key phase, and rotational speed, providing comprehensive data support for equipment condition assessment.
Signal Conversion and Transmission: It converts clearance changes into electrical signals, transmits them to the preamplifier via an extension cable, and outputs a standard signal after conditioning and amplification, compatible with 3300/3500 monitoring frames.
Wide Temperature Range and Stable Operation: It can withstand a temperature range of -51~121℃, adapting to complex industrial conditions and ensuring reliable long-term online monitoring data.
Strong Environmental Adaptability: Stainless steel housing and IP65 protection rating resist the effects of corrosion, humidity, dust, and other harsh environments, extending service life.
System Compatibility and Integration: Seamlessly integrates with 3300/3500 monitoring frames, supporting data acquisition, analysis, and fault diagnosis, simplifying system setup and maintenance. Functions, Applications, and Typical Scenarios
Power Energy: Monitoring shaft vibration and axial displacement in equipment such as steam turbines, generators, and pumps. Works with the 3500 system to achieve fault diagnosis and safety interlocking, conforming to API 670 standards.
Petrochemical Industry: Monitoring the shaft status of compressors, fans, and gearboxes, collecting key phase and speed signals to ensure long-term operation and prevent equipment failures.
Metallurgy & Heavy Industry: Monitoring vibration and displacement in heavy-duty equipment such as rolling mills and coal mills, capturing shaft anomalies in real time to prevent downtime caused by bearing wear, rotor imbalance, and other problems.
Long-Distance Installation Applications: The 12m system length adapts to long-distance installation scenarios, such as remote monitoring points for large units, expanding the application scope.
System Upgrades and Retrofits: Adapts to the 3300 XL system for replacing traditional sensor systems, facilitating the upgrade of monitoring systems for aging equipment and improving monitoring accuracy and stability.
Email: xmxblynn@163.com
Phone: +86 18059884797
