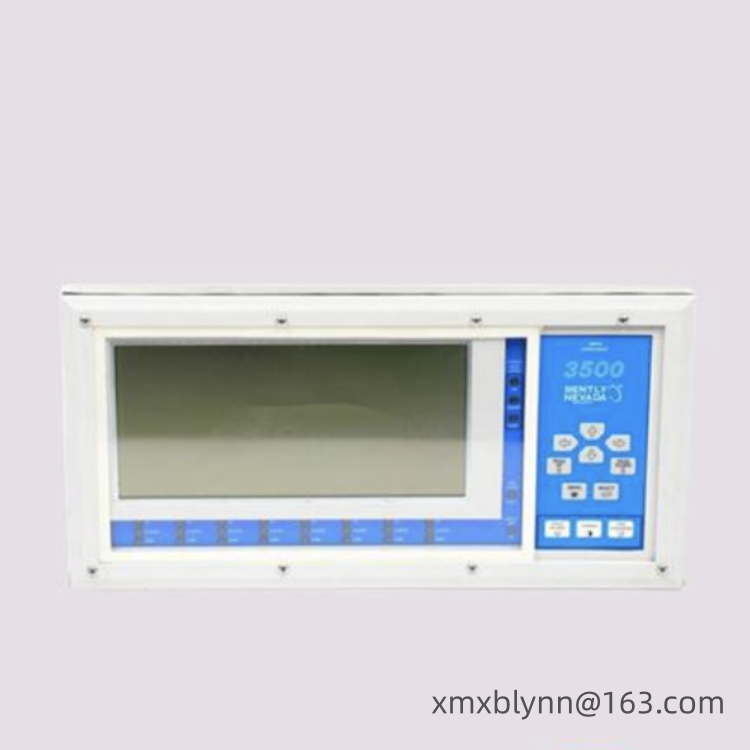

Bently nevada 3500/93 P/N:135785-02 Backlit system display
The 3500/93 P/N:135785-02 is a backlit system display from Bently Nevada's 3500 series. Its core function is to provide local/remote visual monitoring for the 3500 machinery protection system, centrally displaying all monitoring data, event lists, and alarm statuses within the framework. It meets the API 670 standard and is suitable for on-site status viewing and rapid fault response for critical rotating machinery in industries such as power and petrochemicals, ensuring safe equipment operation.
Core Parameters and Specifications
Item Parameter
Product Model 3500/93 (P/N:135785-02, Backlit System Display)
Compatible Systems 3500 Mechanical Protection System, requires 3500/93 display interface module (e.g., 135799-01/02)
Display Characteristics LED backlight, 7-inch, 640×480 resolution, supports local/remote display, up to 2 displays per frame
Installation Methods Supports 4 installation types including system panel mounting and 19-inch EIA rack mounting, adaptable to different site layouts
Operating Temperature -40~65℃, adaptable to high and low temperature conditions in industrial environments
Protection Rating IP65, dustproof and waterproof, suitable for harsh industrial environments
Power Consumption Display + Display Interface Module Maximum 15.5W, energy-saving and stable
Core Certifications Complies with API 670 standard, compatible with rotating machinery monitoring and protection systems
Email: xmxblynn@163.com
Phone: +86 18059884797
Core Functions
Centralized Data Visualization: Real-time display of all channel data (vibration, displacement, speed, etc.), system event list, and alarm event list within the 3500 frame, supporting rapid location of equipment anomalies.
Multi-dimensional Status Indicators: LED indicators differentiate between OK, Alert, and Danger states, intuitively displaying the system and channel operating status for quick assessment by on-site personnel.
Flexible Installation and Connectivity: Adaptable to various installation scenarios, supporting local/remote deployment. A single frame can connect to two monitors, meeting multi-area monitoring needs.
High Environmental Adaptability: IP65 protection and wide temperature range design withstand harsh industrial environments such as dust, humidity, and extreme temperatures, ensuring long-term stable operation.
Standard Compliance and Compatibility: Compliant with API 670 standards, seamlessly integrated with the 3500 system, compatible with various monitoring modules such as 3500/40M and 3500/50, ensuring data interoperability.
Functions, Applications, and Typical Scenarios
Power Energy: On-site status monitoring of critical equipment such as steam turbines and generators, real-time viewing of vibration, displacement, and other data, rapid alarm response, and integration with the 3500 protection system for fault early warning and shutdown protection.
Petrochemical Industry: Local monitoring of rotating machinery such as compressors and fans, centralized presentation of API 670 compliant data, helping on-site personnel quickly locate faults and ensuring long-term operation.
Metallurgical Heavy Industry: On-site status visualization of heavy-duty equipment such as rolling mills and coal mills, tracing equipment operating history through event lists to assist in preventative maintenance.
System Integration and Application: Integration with the 3500 framework and System 1 software, providing dual protection of on-site data display and remote analysis, improving equipment management efficiency.
Rapid Fault Response: Local real-time display of alarm status, shortening fault diagnosis time and reducing unplanned downtime losses.
Email: xmxblynn@163.com
Phone: +86 18059884797
