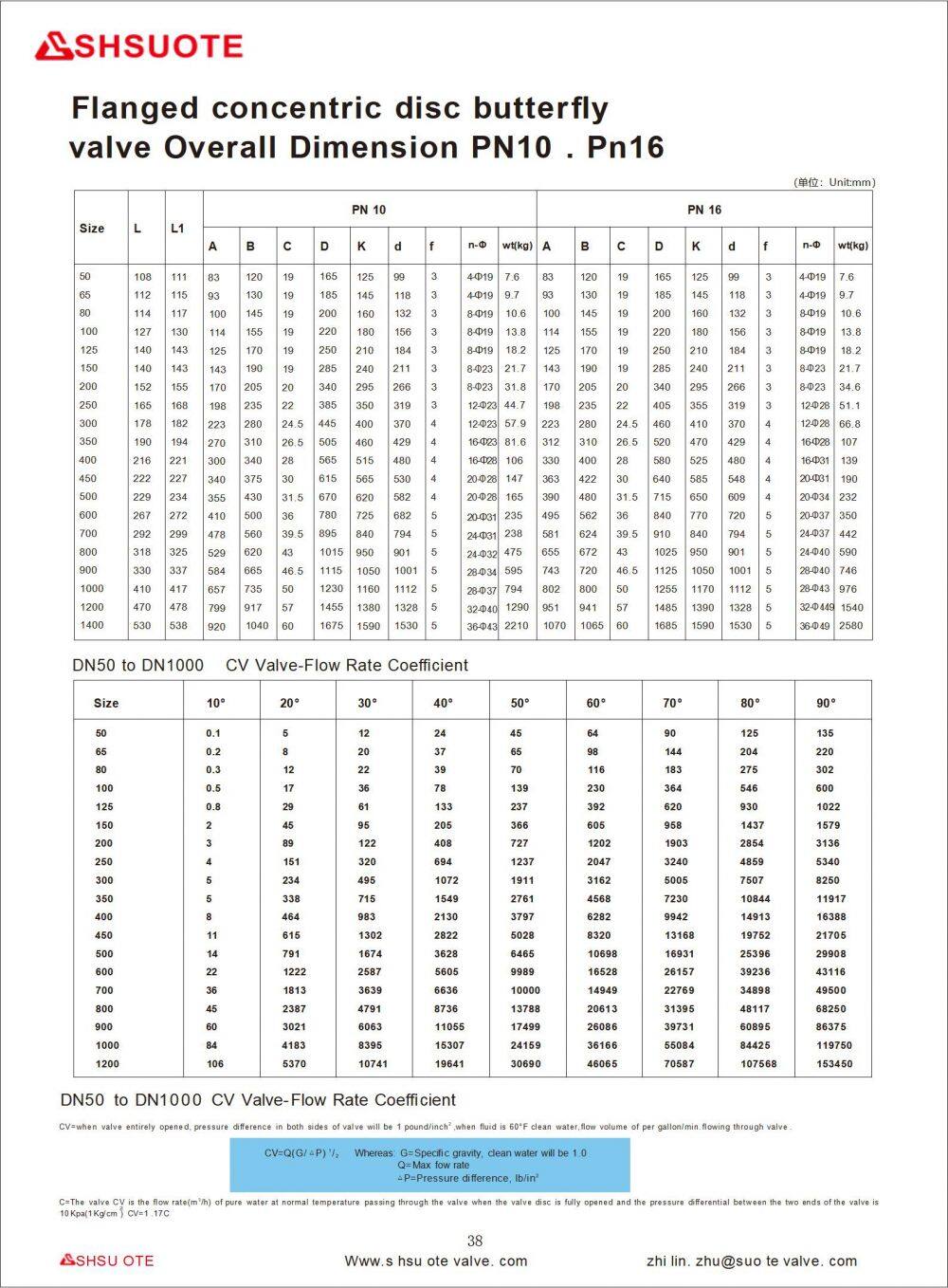

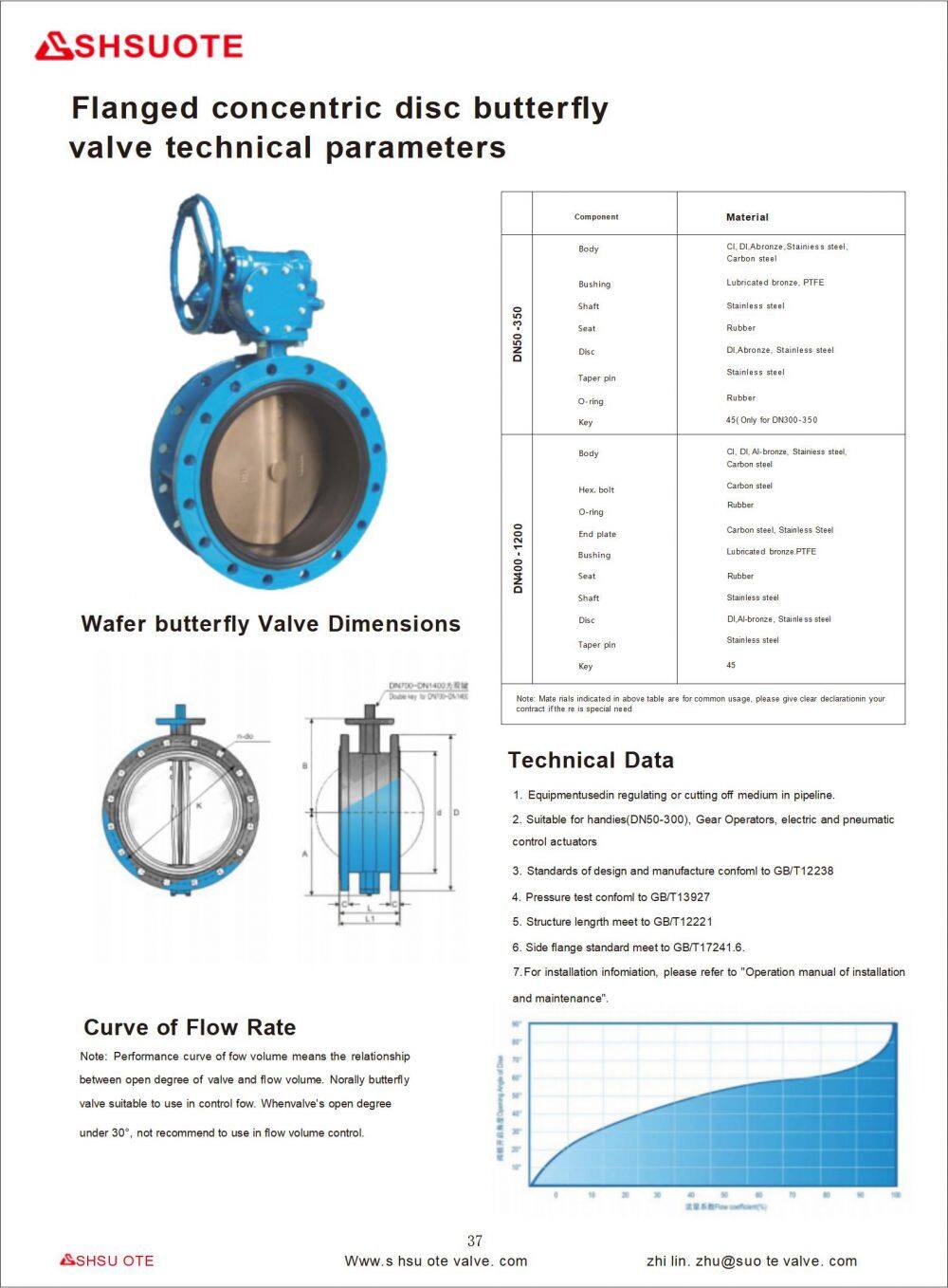

Flanged concentric disc butterfly valve
ST030 D341X
Driving device flange

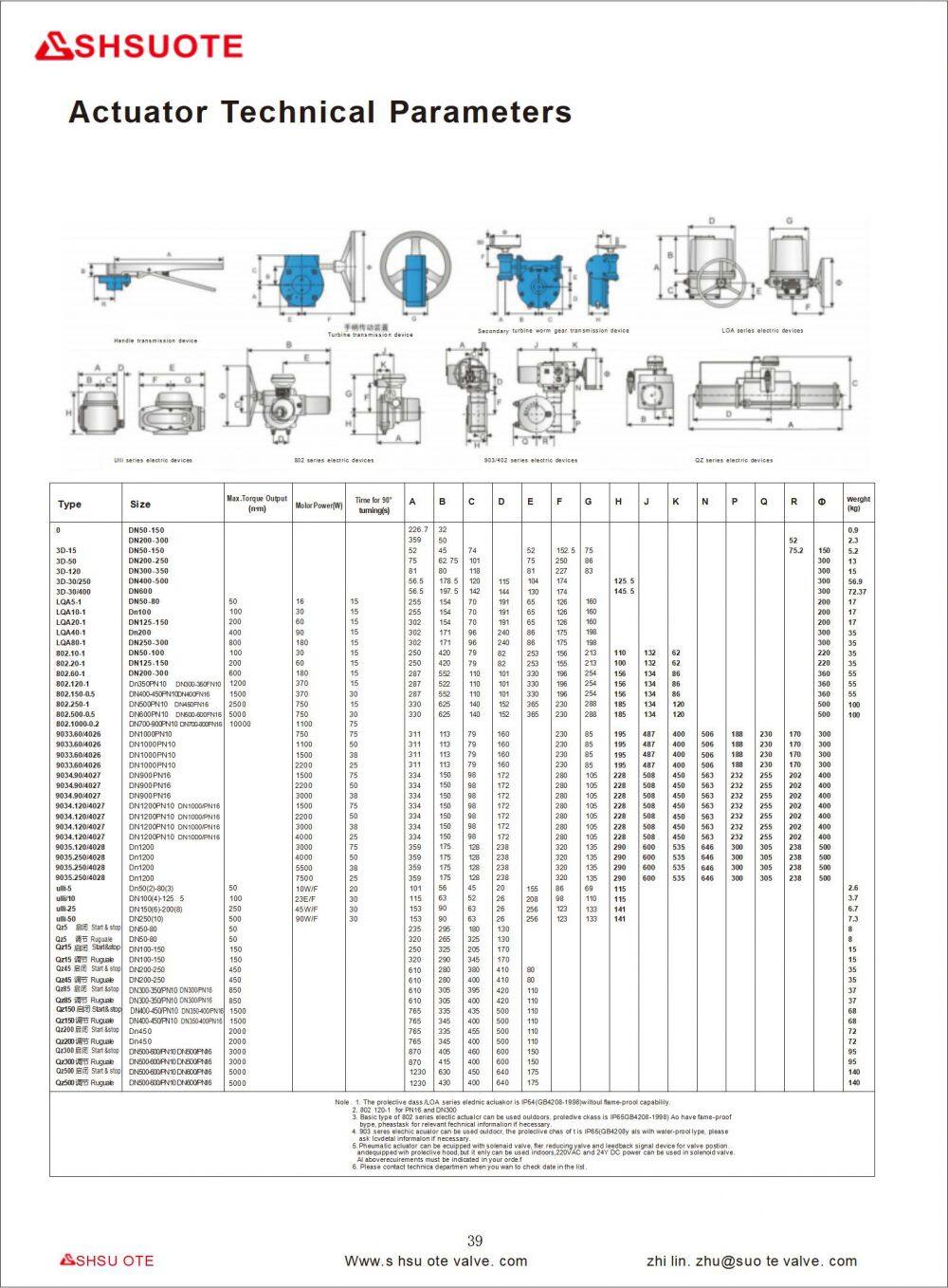

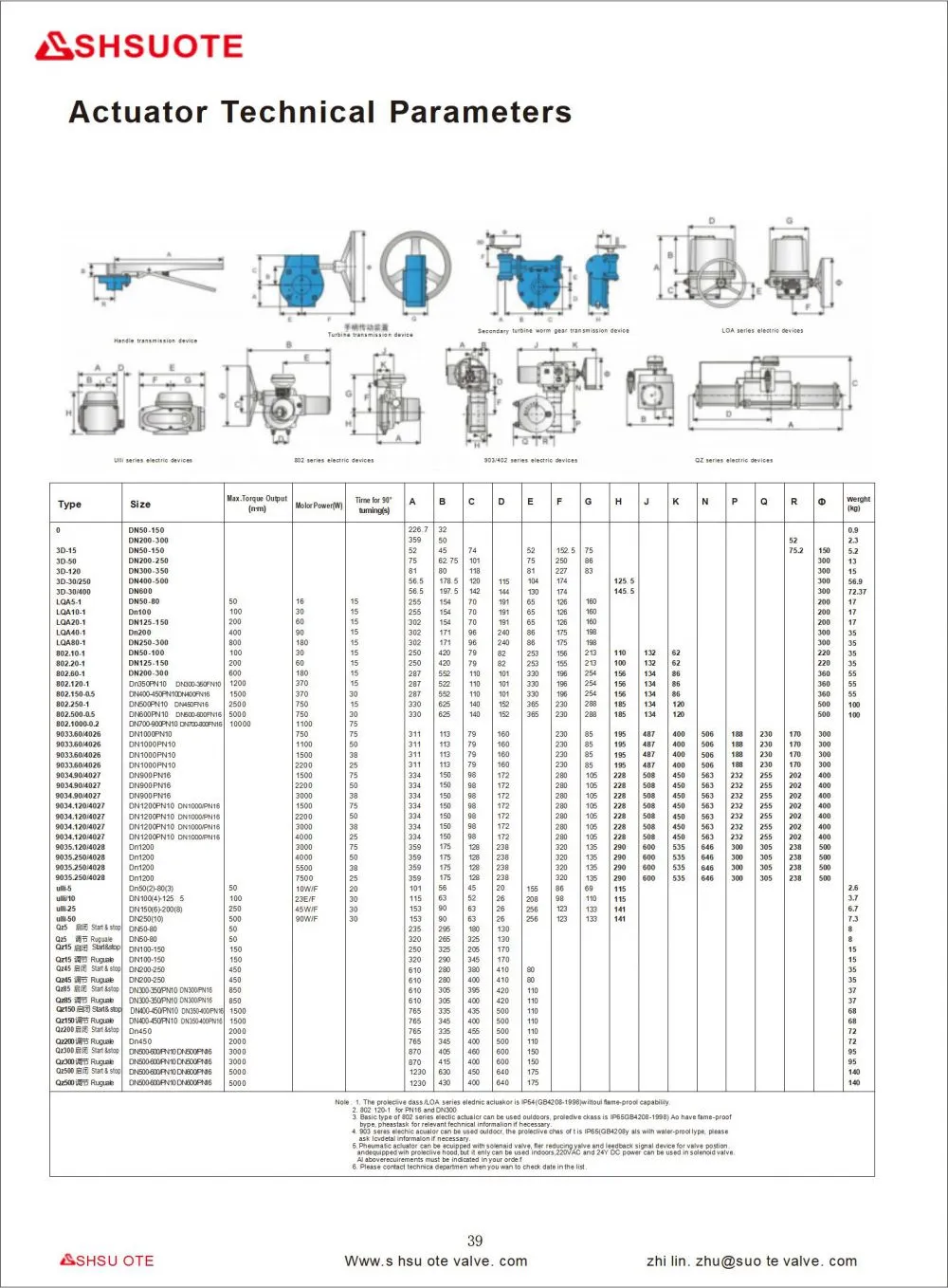

Can be used in handles, gear operators, electric or pneumatic actuators .
Bushing
Reduce driving torque . support stem, and effectively separate it with valve body reduce wear of stem .
Surface of disc axle hole
Through treatment of polishing, precisely fit with seat .
High precision disc external profile
Reach the requirement of bubble-tight, small start and stop torque, longer
usage life of seat .
Stem seal
Stem is not easy to be distorted, eliminating possible leakage in stem .
Strong precision key
Give possible attachment for manual lever or actuator .
Precision taper pin
Ensure positive vibration proof. Stem to disc connection . Easily feld replaceable .
Integral stem design
High precision and reliability, convenient for start .
Side seal
With no need of flange gasket .
Body lined with rubber seat
Good integral support, stable and solid, stretch-proof, leakage-proof.
Applicable Pressure: PN1.0~1.6MPa
Applicable Size: DN50~1400
Applicable Temperature: -10°C~150°C
Body material: Cl, DI.
